Question

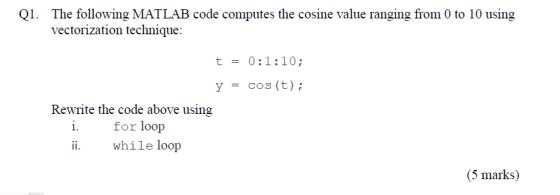

Ql. The following MATLAB code computes the cosine value ranging from 0 to 10 using vectorization technique: t = 0:1:10; y cos

0 0
Add a comment Improve this question Transcribed image text
Answer #1

Given code:

clc;
clear;

t=0:1:10;
y = cos(t);
y
clc; clear; 1 2 3 4 5 6 7 t=0:1:10; Y = cos(t); Y

output:

y = 1.00000 0.54030 -0.41615 -0.98999 -0.65364 0.28366 0.96017 0.75390 -0.14550 -0.91113 -0.83907

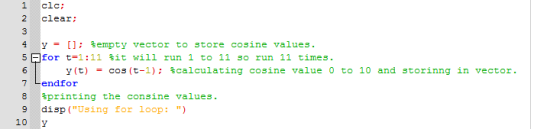

Using for loop:

clc;
clear;

y = []; %empty vector to store cosine values.
for t=1:11 %it will run 1 to 11 so run 11 times.
y(t) = cos(t-1); %calculating consine values 0 to 10 and strong in vector.
endfor
%printing the cosine values.
disp("Using for loop: ")
y
1 clc; 2 clear; 3 4 y = []; $empty vector to store cosine values. 5 for t=1:11 fit will run 1 to 11 so run 11 times. 6 y(t) c

output:

Using for loop: y = 1.00000 0.54030 -0.41615 -0.98999 -0.65364 0.28366 0.96017 0.75390 -0.14550 -0.91113 -0.83907

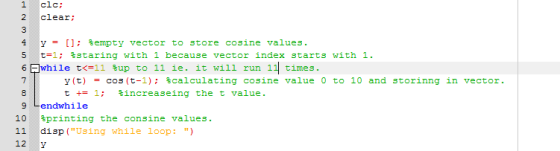

Using while loop:

clc;
clear;

y = []; %empty vector to store cosine values.
t=1; %staring with 1 because vector index starts with 1.
while t<=11 %up to 11 ie. it will run 11 times.
y(t) = cos(t-1); %calculating cosine value 0 to 10 and storinng in vector.
t += 1; %increaseing the t value.
endwhile
%printing the consine values.
disp("Using while loop: ")
y

1 clc; 2 clear; 3 4 y = []; tempty vector to store cosine values. 5 t=1; $staring with 1 because vector index starts with 1.

output:

Using while loop: y = 1.00000 0.54030 -0.41615 -0.98999 -0.65364 0.28366 0.96017 0.75390 -0.14550 -0.91113 -0.83907

Note: my friend if you have any questions or queies comment below. I am happy to answer your all questions. i will sort out your queries. Thank you my friend.
