Question

Please draw a flow chart for each method please and thank you.

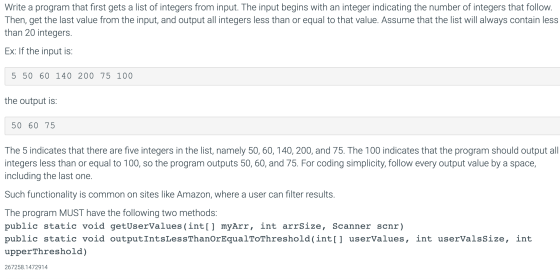

Write a program that first gets a list of integers from input. The input begins with an integer indicating the number of integers that follow. Then, get the last value from the input, and output all integers less than or equal to that value. Assume that the list will always contain less than 20 integers. Ex: If the input is: 5 50 60 140 200 75 100 the output is: 50 60 75 The 5 indicates that there are five integers in the list, namely 50, 60, 140, 200, and 75. The 100 indicates that the program should output all integers less than or equal to 100, so the program outputs 50, 60, and 75. For coding simplicity, follow every output value by a space, including the last one. Such functionality is common on sites like Amazon, where a user can filter results. The program MUST have the following two methods: public static void getUserValues (int[] myArr, int arrSize, Scanner scnr) public static void outputIntsLessThanorEqualToThreshold(int[] uservalues, int uservalsSize, int upperThreshold) 267258.1472914

Answer 1

Java code for above problem

import java.util.Scanner;
public class Prog7_outputValues_method
{
   public static void main(String args[])
   {
       Scanner scnr=new Scanner(System.in);
       int arrSize=scnr.nextInt();
       int [] myArr=new int[arrSize];
       getUserValues(myArr,arrSize,scnr);
       int upperThreshold=scnr.nextInt();
       outputIntsLessThanOrEqualToThreshold(myArr,arrSize,upperThreshold);
   }
   public static void getUserValues(int myArr[],int arrSize,Scanner scnr)
   {
       for(int i=0;i<arrSize;i++)
       {
           myArr[i]=scnr.nextInt();
       }
   }
   public static void outputIntsLessThanOrEqualToThreshold(int myArr[],int arrSize,int upperThreshold)
   {
       for(int i=0;i<arrSize;i++)
       {
           if(myArr[i]<=upperThreshold)
           {
               System.out.print(myArr[i]+" ");
           }
       }
       System.out.println();
   }
}

Sample output

5 50 66 140 200 75 100 50 60 75

Flowchart for getUserValues() method:

Start parameters myArt I, are Size scar 1-0 NO is arrsize MES get input from wer & Store in my Arr[i] 1 i=it I Stop

Flowchart for outputIntsLessThanOrEqualToThreshold() method

Start parameters my Arol ] ArtSite, upperThreshold No Karesine YES NO my Arsti]<= upper Threshold YES pont (ry Arrli]) i= it! Stop

Mention in comments if any mistakes or errors are found. Thank you.
