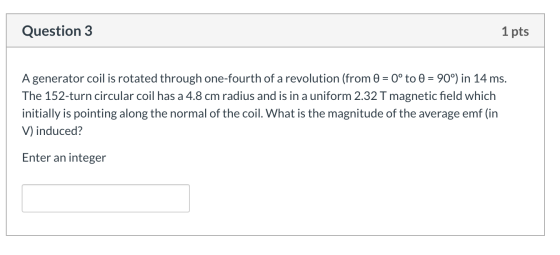

Question 3 1 pts A generator coil is rotated through one-fourth of a revolution (from 0 = 0° to 0 = 90°) in 14 ms. The 152-tu

science physics

Answer 1

Answer #1

here,

time, t = 14 ms = 0.014 s

N = 152

r = 4.8 cm = 0.048 m

B = 2.32 T

magnitude of average emf = change in magnetic flux/time taken

magnitude of average emf = 152 *pi * 0.048^2 * (2.32 - 0)/0.014

magnitude of average emf = 182 V

the magnitude of average emf is 182 V
