Question

A generator coil is rotated through one-fourth of a revolution (from θ = 0º to θ...

A generator coil is rotated through one-fourth of a revolution (from θ = 0º to θ = 90º) in 14 ms. The 244-turn circular coil has a 4.4 cm radius and is in a uniform 2.25 T magnetic field which initially is pointing along the normal of the coil. What is the magnitude of the average emf (in V) induced? Enter an integer.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

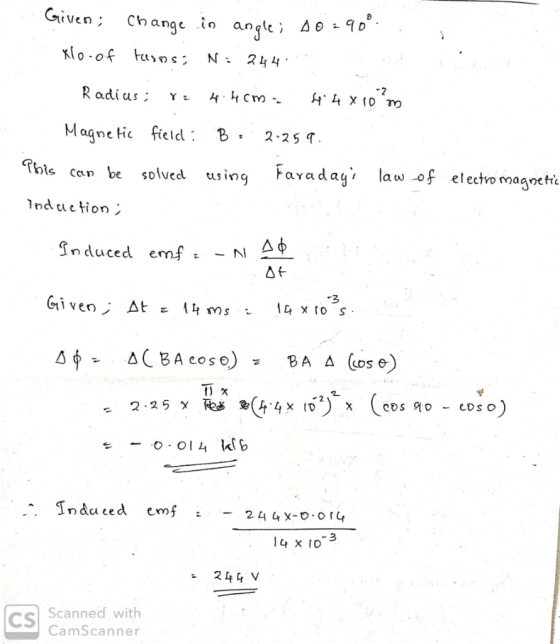

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A generator coil is rotated through one-fourth of a revolution (from θ = 0º to θ...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A generator coil is rotated through one-fourth of a revolution (from θ = 0º to θ...

    A generator coil is rotated through one-fourth of a revolution (from θ = 0º to θ = 90º) in 20 ms. The 155-turn circular coil has a 6 cm radius and is in a uniform 1.78 T magnetic field which initially is pointing along the normal of the coil. What is the magnitude of the average emf (in V) induced? Enter an integer

  • Question 3 1 pts A generator coil is rotated through one-fourth of a revolution (from 0...

    Question 3 1 pts A generator coil is rotated through one-fourth of a revolution (from 0 = 0° to 0 = 90°) in 14 ms. The 152-turn circular coil has a 4.8 cm radius and is in a uniform 2.32 T magnetic field which initially is pointing along the normal of the coil. What is the magnitude of the average emf (in V) induced? Enter an integer

  • Problem 4. The generator coil shown in the figure below is rotated through one-fourth of a...

    Problem 4. The generator coil shown in the figure below is rotated through one-fourth of a revolution (from θ = 0o to θ = 90o ) in 15.0 ms. The 200-turn circular coil has a 5.00 cm radius and is in a uniform 1.25 T magnetic field. What is the average emf induced? 1 Carbon brush Carbon brush B N. S Path of motion Coil rotated by mechanical means 90°

  • Problem 4. The generator coil shown in the figure below is rotated through one-fourth of a...

    Problem 4. The generator coil shown in the figure below is rotated through one-fourth of a revolution (from 0 = 00 to 0 = 90°) in 15.0 ms. The 200-turn circular coil has a 5.00 cm radius and is in a uniform 1.25 T magnetic field. What is the average emf induced? Carbon brush Carbon brush N Path of motion 2 Coil rotated by mechanical means 90

  • A 0.270 m radius, 530–turn coil is rotated one–fourth of a revolution in 3.81 ms, originally...

    A 0.270 m radius, 530–turn coil is rotated one–fourth of a revolution in 3.81 ms, originally having its plane perpendicular to a uniform magnetic field. Find the magnetic field strength needed to induce an average emf of 9400 V.

  • A generator coil is rotated through 15 revolutions in 280 ms

    A generator coil is rotated through 15 revolutions in 280 ms. Calculate the maximum emf that is generated if the coil is circular with a 12 cm diameter, has 320 turns, and is in a uniform 1.85 T magnetic field. 2300 V 9000 V 360 V 720 V 1400 V

  • In a generator, an 9,705 turn coil of 5.91 cm radius is rotated at a speed...

    In a generator, an 9,705 turn coil of 5.91 cm radius is rotated at a speed of 332.85 revolutions per second while immersed in a 3.6 Tesla magnetic field. What is the maximum emf induced in this coil?

  • In a generator, an 7,180 turn coil of 8.97 cm radius is rotated at a speed...

    In a generator, an 7,180 turn coil of 8.97 cm radius is rotated at a speed of 475.47 revolutions per second while immersed in a 2.4 Tesla magnetic field. What is the maximum emf induced in this coil?

  • A rectangular coil of N turns and of length a and width b is rotated at...

    A rectangular coil of N turns and of length a and width b is rotated at frequency f in a uniform magnetic field of magnitude B, as indicated in the figure. The coil is connected to co-rotating cylinders, against which metal brushes slide to make contact. The emf induced in the coil is given (as a function of time t) by E = 2 pi f Nab Bs in (2 pi ft) = e_0 sin (2 pi ft) This is...

  • A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field...

    A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.177 s , the magnetic field strength increases from 53.1 mT to 96.9 mT . Find the magnitude of the average emf avg induced in the coil during this time interval, in millivolts. A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...
