Answer the following questions, numbering your answers Q1, Q2, and Q3 respectively. Q1) What is the...
Answer the following questions, numbering your answers Q1, Q2, and Q3 respectively.
Q1) What is the difference between routing and forwarding?
Q2) Suppose there are three routers between a source host and a destination host.
Ignoring fragmentation, an IP datagram sent from the source host to the destination host will travel over how many interfaces?
How many forwarding tables will be indexed to move the datagram from the source to the destination?
Q3) Suppose you purchase a wireless router and connect it to your cable modem.
Also suppose that your ISP dynamically assigns your connected device (that is, your wireless router) one IP address. Also suppose that you have five PCs at home that use 802.11 to wirelessly connect to your wireless router.
How are IP addresses assigned to the five PCs?
Does the wireless router use NAT? Why or why not?

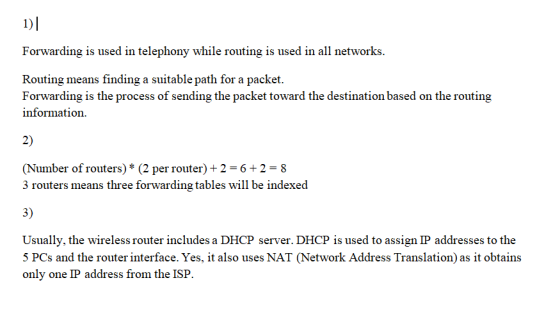

Homework Answers
