CamScanner ile tarandı SELF - STUDY QUESTION are R = 25 32/ The parameters of a...

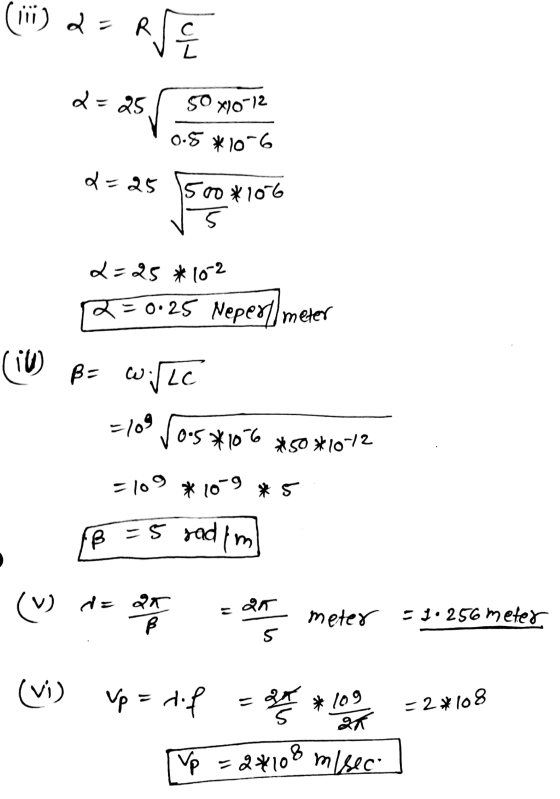

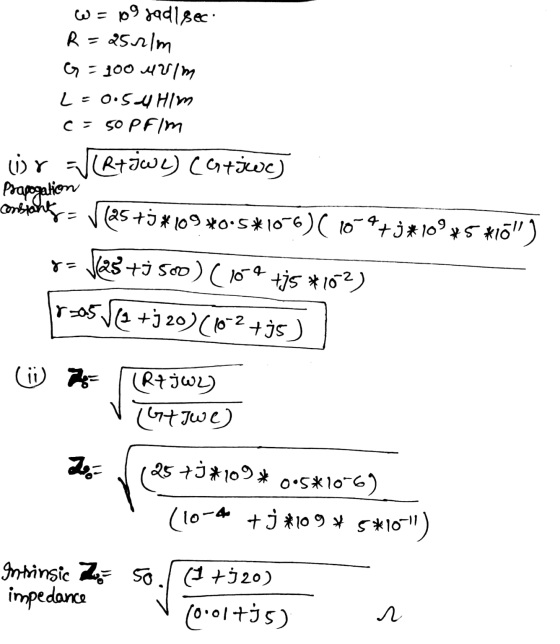

1. The parameters of a certain transmission line operating at 6 x 10$ rad/s are L...
1. The parameters of a certain transmission line operating at 6 x 10$ rad/s are L = 0.4uH/m, C = 40 pF/m, G= 80 mS/m, and R= 2 092/m. a) Find y, a, ß, 2, and Zo: b) If a voltage wave travels 20 m down the line, by what percentage is its amplitude reduced, and by how many degress is its phase shifted?
10.198 A lossless transmission line is 50 cm in length and operates at a frequency of...
10.198 A lossless transmission line is 50 cm in length and operates at a frequency of 100 MHz. The line parameters are L-0.2 μ H/m and C = 80 pF/m. The line is terminated in a short circuit at z 0, and there is a load ZL = 50 + j 20 Ω across the line at location z--20 cm. What average power is delivered to ZL if the input voltage is 10020 V?
A finitely long transmission line has f-100 MHz, R'-1 m Ω m, L,-1 μHm, C'-2 pF/m,...
A finitely long transmission line has f-100 MHz, R'-1 m Ω m, L,-1 μHm, C'-2 pF/m, and G'-o s. Calculate Zo and the propagation constant γ of the . line. Assume 30 w is flowing down the line at z-0. How much power is flowing at z = 3 m? (we will do this part on Next class) Remember: Rave (z) = Vol2 e-2 z cos(ez ) (W). what is Zo y, the phase velocity Up wavelength λ and period...
Question 25 Not yet answered Points out of 1.00 Flag question In the figure, R =...
Question 25 Not yet answered Points out of 1.00 Flag question In the figure, R = 122, C =8 pF, and L = 3 mh, and the ideal battery has emf = 32 V. The switch is kept in position a for a long time and then thrown to position b. What are HH R 7 с mo (a) the maximum charge in the capacitor plates? Select one: • a. 96.00 pc . b. 256.00 pc . c. 32.00 C...
32. A transformer is to be designed to increase the 30 kV-rms output of a generator...
32. A transformer is to be designed to increase the 30 kV-rms output of a generator to the transmission-line voltage of 345 kV-om. If the primary winding has 80 turns, how many turns must the secondary have? b. 70 c. 920 d. 9200 e 12 33. The primary winding of an electric train transformer has 400 turns and the Secondary has 50. If the input voltage is 120V(rms) what is the output voltage? a. 15 V (rms) b. 30 Vrms)...
Question: CODE: >> %% PID controller design Kp = 65.2861; Ki = 146.8418; Kd = 4.0444;...
Question:
CODE:
>> %% PID controller design
Kp = 65.2861;
Ki = 146.8418;
Kd = 4.0444;
Gc = pid(Kp,Ki,Kd);
% close-loop TF
T = feedback(G*Gc,1);
%% checking the design obejective
a_pid = stepinfo(T);
% Settling Time
tp_pid = a_pid.SettlingTime
% Overshhot
OS_pid = a_pid.Overshoot
%% steady-state error
[yout_pid,tout_pid] = lsim(T,stepInput,t);
% steady-state error
ess_pid = stepInput(end) - yout_pid(end);
>> %% Effect of P in G
Kp = 65.2861;
Ki = 0;
Kd = 0;
Gc = pid(Kp,Ki,Kd);
% close-loop TF...
