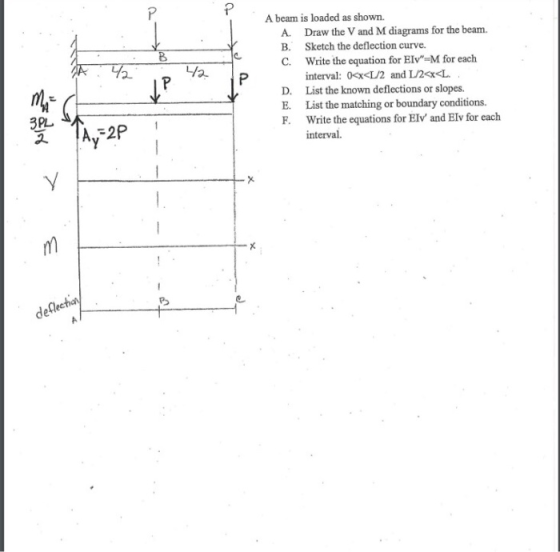

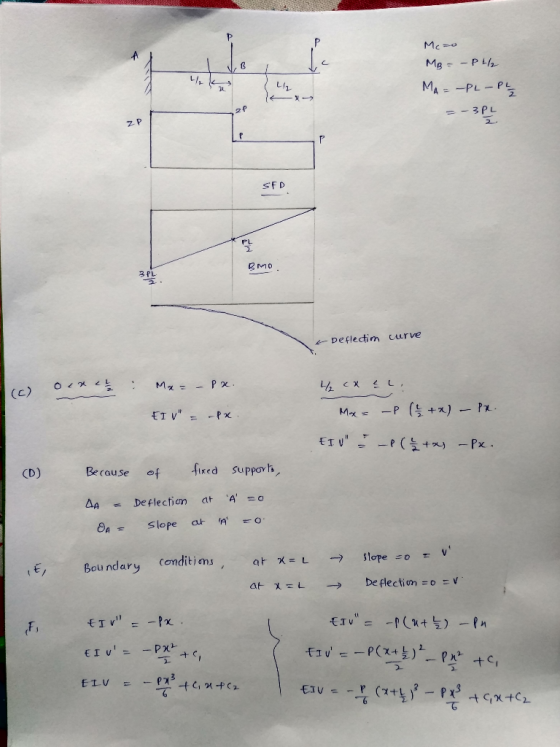

A beam is loaded as shown. A. Draw the V and M diagrams for the beam....
For this beam, analyze the following: a) Draw the V and M diagrams using relationships only...
For this beam, analyze the following: a) Draw the V and M diagrams using relationships only b) Redraw the Vand M diagrams solving the boundary value problem (BVP) c) Redraw the V and M diagrams using functions V(x) and M(x) d) Solve for the maximum beam stresses Omax (top and bottom at the critical location along the beam. NOTE: To do this, you need to find the centroid of the cross section first. e) Solve for the equation of beam...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q =...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
Determine the deflection, moment and shear diagram equations for the beam below two ways: (a) using...
Determine the deflection, moment and shear diagram equations for
the beam below two ways: (a) using integration of the fourth order
governing differential equation for beams EIv''''=w(x) and (b)
using superposition of known deflections equations for statically
determinate beams provided below.
Thanks
8, (6%) For a simple beam shown in Figure lending moments in the bean : (0?S4)...
8, (6%) For a simple beam shown in Figure lending moments in the bean : (0?S4) Pbx Differential Equation is Slopes of deflections of the beam Pbx ? Pbx 1 2L 2 (e s-o Deflectior.the.eamPCr-oY+ca Ely 61. 6 The constants of integration (Ct, Ca, Ca, Ca) can be determined tions and two continuity conditions Write down these four equations 1) Boundary condition at support A: 2) Boundary condition at support 8: 3) Continuity condition for the slope of the beam...
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...
Draw the shear and moment diagrams for the loaded beam. After
you have the diagrams, answer the questions as a check on your
work.
Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 9 KN 7 KN 6 kN/m 4 kN/m e B- ham tomt9m— 5m Questions: When x = 2.3 m, V = KNm When x = 8.6 m, V = kNm...
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...
Draw the shear and moment
diagrams for the loaded beam. After you have the diagrams, answer
the questions in order to gain confidence in your plots.
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. 2 kN 11 kN 5 kNm +3m +4m + 6m — +3m 8 KN Questions: When x = 2.1 m, V = KN.m When x = 5.7 m,...
1/3 Assigneu: 202.01.10 Due: 2020.01.2 w 1. The total load on the beam is W lbs,...
1/3 Assigneu: 202.01.10 Due: 2020.01.2 w 1. The total load on the beam is W lbs, distributed triangularly. (a) Find an equation for the distributed loading, w(x), in terms of W and L. (b) Integrate the equilibrium equation Elv(x)" = w(x), and use the appropriate boundary conditions to obtain equations for the shear, moment, slope and deflection as functions of W, x and El.
Problem Statement: An 6061 wrought aluminum beam is loaded and supported as shown. Find the following,...
Problem Statement:
An 6061 wrought aluminum beam is loaded and supported as shown.
Find the following, and neglecting the effect of self-weight.
(a) The deflection of the beam midway between the
supports.
(b) The maximum deflection between the supports.
(c) The location of the maximum deflection between the
supports.
(d) The deflection of the beam at point A.
(e) The deflection of the beam at point E.
(f) The factor of safety against yielding for the beams maximum
flexural stress....
Draw the shear and moment diagrams for the linearly loaded simple beam. Then answer the questions....
Draw the shear and moment diagrams for the linearly loaded
simple beam. Then answer the questions. The distance x is
measured from point A to the right.
-wo 2.7 L 2.7 L Questions: 0.027 1.34 UwoL2 At x JWOL, M 0.2L, V = -0.11 0.5633 At x 2.9L, V = woL, M 0.65 JwoL The maximum (absolute value) shear force in the beam is 0.5633 JwoL2 The maximum (absolute value) bending moment in the beam is
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
For this beam, analyze the following: a) Draw the V and M diagrams using relationships only b) Redraw the Vand M diagrams solving the boundary value problem (BVP) c) Redraw the V and M diagrams using functions V(x) and M(x) d) Solve for the maximum beam stresses Omax (top and bottom at the critical location along the beam. NOTE: To do this, you need to find the centroid of the cross section first. e) Solve for the equation of beam...
Q2. A simply supported beam AB (Figure 2) supports a uniformly distributed load of q = 18kN/m and a concentrated load of P = 23kN at the centre. Consider length of the beam, L = 3m, Young's modulus, E = 200GPa and moment of inertial, I = 30 x 10 mm-. Assume the deflection of the beam can be expressed by elastic curve equations of the form: y(x) = Ax4 + Bx3 + Cx2 + Dx + E. 1) Sketch...
Determine the deflection, moment and shear diagram equations for
the beam below two ways: (a) using integration of the fourth order
governing differential equation for beams EIv''''=w(x) and (b)
using superposition of known deflections equations for statically
determinate beams provided below.
Thanks
8, (6%) For a simple beam shown in Figure lending moments in the bean : (0?S4) Pbx Differential Equation is Slopes of deflections of the beam Pbx ? Pbx 1 2L 2 (e s-o Deflectior.the.eamPCr-oY+ca Ely 61. 6 The constants of integration (Ct, Ca, Ca, Ca) can be determined tions and two continuity conditions Write down these four equations 1) Boundary condition at support A: 2) Boundary condition at support 8: 3) Continuity condition for the slope of the beam...
Draw the shear and moment diagrams for the loaded beam. After
you have the diagrams, answer the questions as a check on your
work.
Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 9 KN 7 KN 6 kN/m 4 kN/m e B- ham tomt9m— 5m Questions: When x = 2.3 m, V = KNm When x = 8.6 m, V = kNm...
Draw the shear and moment
diagrams for the loaded beam. After you have the diagrams, answer
the questions in order to gain confidence in your plots.
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. 2 kN 11 kN 5 kNm +3m +4m + 6m — +3m 8 KN Questions: When x = 2.1 m, V = KN.m When x = 5.7 m,...
1/3 Assigneu: 202.01.10 Due: 2020.01.2 w 1. The total load on the beam is W lbs, distributed triangularly. (a) Find an equation for the distributed loading, w(x), in terms of W and L. (b) Integrate the equilibrium equation Elv(x)" = w(x), and use the appropriate boundary conditions to obtain equations for the shear, moment, slope and deflection as functions of W, x and El.
Problem Statement:
An 6061 wrought aluminum beam is loaded and supported as shown.
Find the following, and neglecting the effect of self-weight.
(a) The deflection of the beam midway between the
supports.
(b) The maximum deflection between the supports.
(c) The location of the maximum deflection between the
supports.
(d) The deflection of the beam at point A.
(e) The deflection of the beam at point E.
(f) The factor of safety against yielding for the beams maximum
flexural stress....
Draw the shear and moment diagrams for the linearly loaded
simple beam. Then answer the questions. The distance x is
measured from point A to the right.
-wo 2.7 L 2.7 L Questions: 0.027 1.34 UwoL2 At x JWOL, M 0.2L, V = -0.11 0.5633 At x 2.9L, V = woL, M 0.65 JwoL The maximum (absolute value) shear force in the beam is 0.5633 JwoL2 The maximum (absolute value) bending moment in the beam is
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
