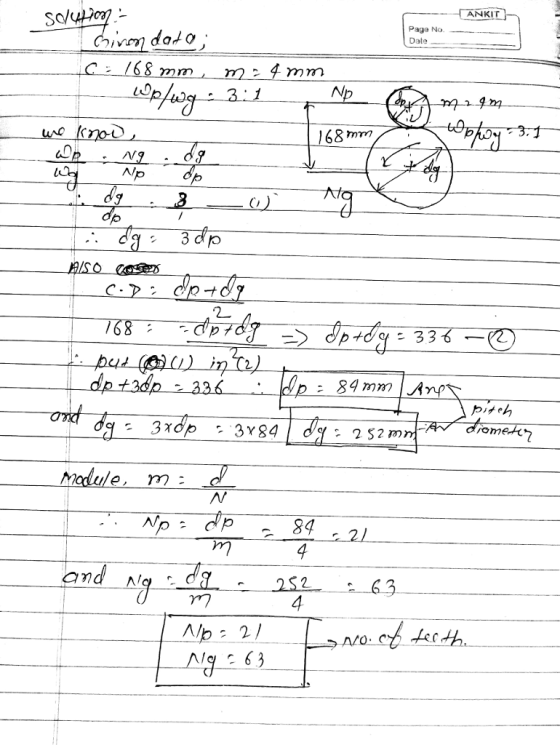

A pair of spur gears on 168 mm centers have a 3:1 speed reduction ratio. With...
Two mating spur gears of parallel shafts with center distance of 4-in. are to be connected...
Two mating spur gears of parallel shafts with center distance of 4-in. are to be connected by 6- pitch, and with pressure angle 20°. The gears providing a velocity ratio of -3.0. Determine the following: a) the pitch diameters and numbers of teeth in the pinion and gear. b) Determine whether there will be interference when standard full-depth teeth are used. c) Determine the contact ratio.
2. (20 points) Design a compound, reverted, 20 standard spur gear train for a gear ratio of 70:1. (a) Specify the teeth numbers (2 18 for the pinions); (b) With the diametral pitch of 10 for all...
2. (20 points) Design a compound, reverted, 20 standard spur gear train for a gear ratio of 70:1. (a) Specify the teeth numbers (2 18 for the pinions); (b) With the diametral pitch of 10 for all gears, calculate their outside diameters and the contact ratio for the pair with the larger gear ratio.
2. (20 points) Design a compound, reverted, 20 standard spur gear train for a gear ratio of 70:1. (a) Specify the teeth numbers (2 18 for...
kinematics please answer ASAP 2 (20 points) Design a compound, reverted, 20° standard spur gear train for a gear ratio of 70:1 . (a) Specify the teeth numbers (2 18 for the pinions); (b) With the...
kinematics please
answer ASAP
2 (20 points) Design a compound, reverted, 20° standard spur gear train for a gear ratio of 70:1 . (a) Specify the teeth numbers (2 18 for the pinions); (b) With the diametral pitch of 10 for all gears, calculate their outside diameters and the contact ratio for the pair with the larger gear ratio.
2 (20 points) Design a compound, reverted, 20° standard spur gear train for a gear ratio of 70:1 . (a) Specify...
mechanical engineering design Problem #2: A pair of helical gears have a module in the normal...
mechanical engineering design
Problem #2: A pair of helical gears have a module in the normal plane of 5 mm, a normal pressure angle of 20, and a helix angle of 35. The gears mesh with parallel shafts and have 32 and 52 teeth. Determine the transverse module, the pitch diameters, the center distance, and the minimum face width.
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°,...
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths...
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths of 2.5-in, a diametral pitch of 4 and both made of steel having a BHN of 400. The pinion is rotating at 600 pm, has 30 teeth and the velocity ratio is 2/3. Assume uniform power source with moderate shock, less rigid mounting with contact across the full face. Find the maximum horsepower that can be transmitted based on strength using the AGMA method....
Component design Spur gear analysis A speed-reducer has 200 full-depth teeth, and the single reduction spur-gear...
Component design
Spur gear analysis
A speed-reducer has 200 full-depth teeth, and the single reduction spur-gear gearset has 22 and 60 teeth. The diametral pitch is 4 teeth/in and the face width is 3-1/4 in. The pinion shaft speed is 1145 rpm. The life goal of 5 year 24 hours per day service is about 3(10 9) pinion revolutions. The absolute value of the pitch variation is such that the transmission accuracy level number is 9. The materials are 4340...
APTER 9 GEAR TRAINS tq-12 Design a compound, spur gear train for a ratio of 120:1 and diametral p...
APTER 9 GEAR TRAINS tq-12 Design a compound, spur gear train for a ratio of 120:1 and diametral pitch of 5 Specify pitch diameters and numbers of teeth. Sketch the train to scale.
APTER 9 GEAR TRAINS tq-12 Design a compound, spur gear train for a ratio of 120:1 and diametral pitch of 5 Specify pitch diameters and numbers of teeth. Sketch the train to scale.
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assu...
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assume same diametral pitch in both stages. 5 1) Specify appropriate numbers of teeth to minimize the gearbox size while avoiding the interference problem in the teeth. Use full-depth teeth Determine the gearbox outside dimension Y, assuming the wall...
The figure shows a pair of shaft-mounted spur gears having a diametral pitch of 5 teeth/in with a...
The figure shows a pair of shaft-mounted spur gears having a diametral pitch of 5 teeth/in with an 18-tooth 20° pinion driving a 50-tooth gear. The horsepower input is 31 maximum at 1.600 rev/min. Find the magnitude of the maximum forces acting on bearings A,B, C, and D 3 in 3 in RA RB = lbf lbf lbf lbf RD =
The figure shows a pair of shaft-mounted spur gears having a diametral pitch of 5 teeth/in with an 18-tooth...
2. (20 points) Design a compound, reverted, 20 standard spur gear train for a gear ratio of 70:1. (a) Specify the teeth numbers (2 18 for the pinions); (b) With the diametral pitch of 10 for all gears, calculate their outside diameters and the contact ratio for the pair with the larger gear ratio.
2. (20 points) Design a compound, reverted, 20 standard spur gear train for a gear ratio of 70:1. (a) Specify the teeth numbers (2 18 for...
kinematics please
answer ASAP
2 (20 points) Design a compound, reverted, 20° standard spur gear train for a gear ratio of 70:1 . (a) Specify the teeth numbers (2 18 for the pinions); (b) With the diametral pitch of 10 for all gears, calculate their outside diameters and the contact ratio for the pair with the larger gear ratio.
2 (20 points) Design a compound, reverted, 20° standard spur gear train for a gear ratio of 70:1 . (a) Specify...
mechanical engineering design
Problem #2: A pair of helical gears have a module in the normal plane of 5 mm, a normal pressure angle of 20, and a helix angle of 35. The gears mesh with parallel shafts and have 32 and 52 teeth. Determine the transverse module, the pitch diameters, the center distance, and the minimum face width.
2/1 A spur gearset has a module of 4 mm and a pressure angle of 25°, and a velocity ratio of 2.80. The pinion has 20 teeth. 1) Checok for interference; show your work. 2) Find: a) The number of teeth on the driven gear b)The circular pitch c) The pitch and base diameters d) The theoretical center distance e) The contact ratio
(1) A pair of meshing spur gears having 20 degree full depth teeth and face widths of 2.5-in, a diametral pitch of 4 and both made of steel having a BHN of 400. The pinion is rotating at 600 pm, has 30 teeth and the velocity ratio is 2/3. Assume uniform power source with moderate shock, less rigid mounting with contact across the full face. Find the maximum horsepower that can be transmitted based on strength using the AGMA method....
Component design
Spur gear analysis
A speed-reducer has 200 full-depth teeth, and the single reduction spur-gear gearset has 22 and 60 teeth. The diametral pitch is 4 teeth/in and the face width is 3-1/4 in. The pinion shaft speed is 1145 rpm. The life goal of 5 year 24 hours per day service is about 3(10 9) pinion revolutions. The absolute value of the pitch variation is such that the transmission accuracy level number is 9. The materials are 4340...
APTER 9 GEAR TRAINS tq-12 Design a compound, spur gear train for a ratio of 120:1 and diametral pitch of 5 Specify pitch diameters and numbers of teeth. Sketch the train to scale.
APTER 9 GEAR TRAINS tq-12 Design a compound, spur gear train for a ratio of 120:1 and diametral pitch of 5 Specify pitch diameters and numbers of teeth. Sketch the train to scale.
A compound gear train is to be designed as a speed increaser to provide a total increase of speed by 30 to 1 ( 1 %). Use spur gears with a 20° pressure angle and a diametral pitch of 7 teeth/in. Assume same diametral pitch in both stages. 5 1) Specify appropriate numbers of teeth to minimize the gearbox size while avoiding the interference problem in the teeth. Use full-depth teeth Determine the gearbox outside dimension Y, assuming the wall...
The figure shows a pair of shaft-mounted spur gears having a diametral pitch of 5 teeth/in with an 18-tooth 20° pinion driving a 50-tooth gear. The horsepower input is 31 maximum at 1.600 rev/min. Find the magnitude of the maximum forces acting on bearings A,B, C, and D 3 in 3 in RA RB = lbf lbf lbf lbf RD =
The figure shows a pair of shaft-mounted spur gears having a diametral pitch of 5 teeth/in with an 18-tooth...
