Two mating spur gears of parallel shafts with center distance of 4-in. are to be connected...
Homework Answers

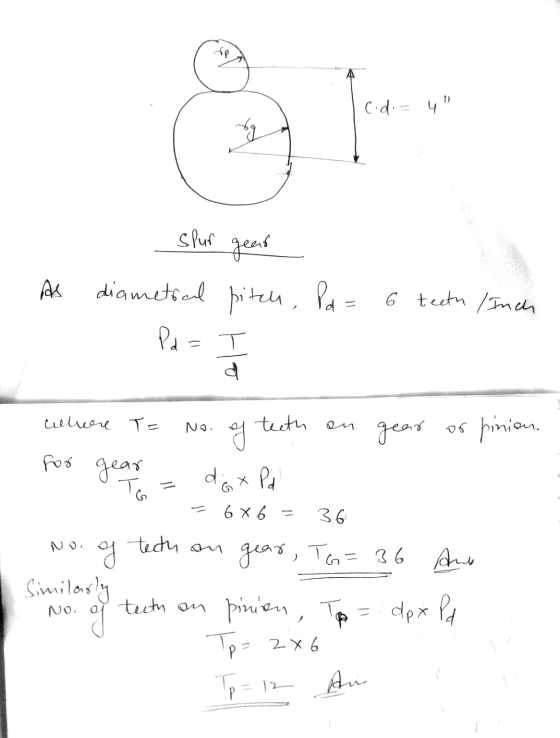

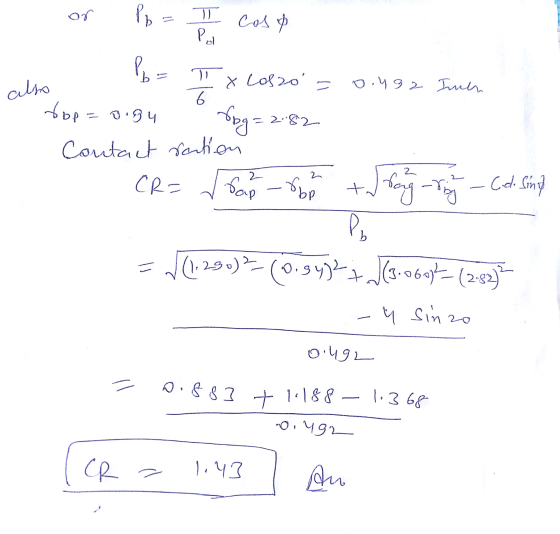

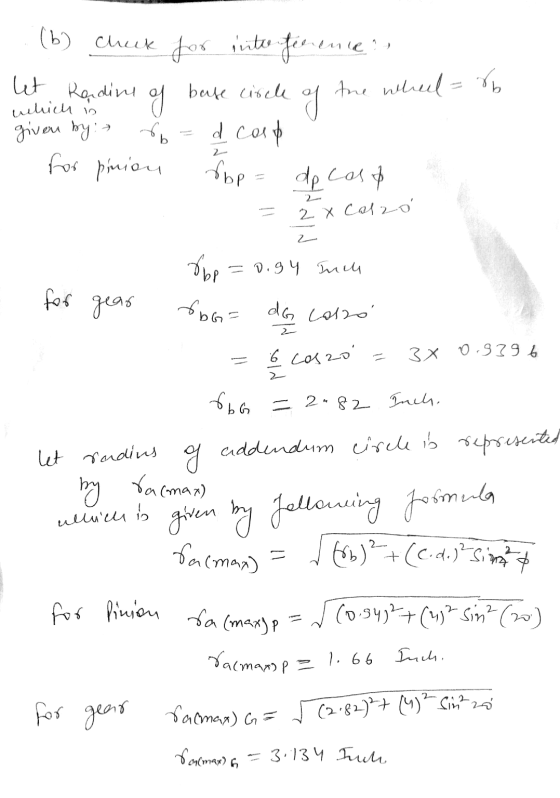

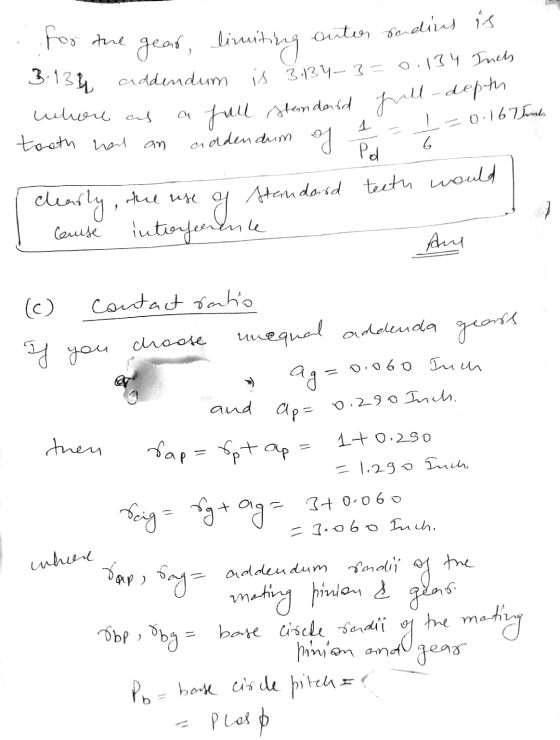

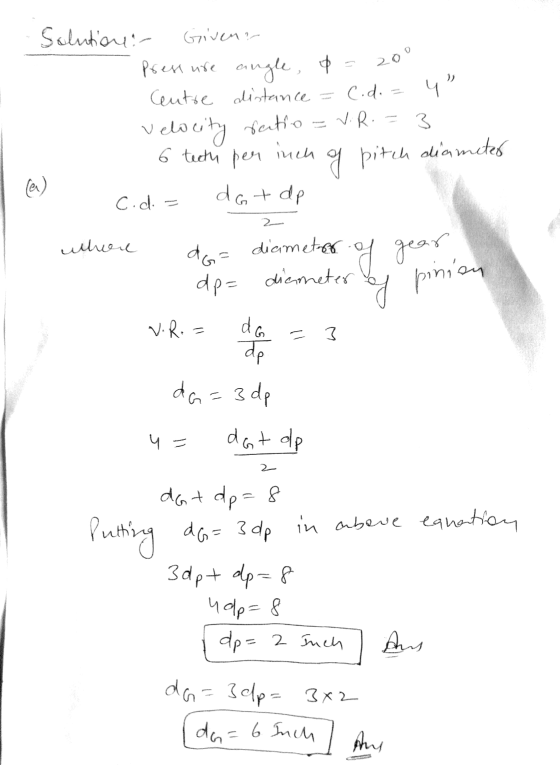

Solution- The given problem has been solved using standard formulas for spur gears. Suitable values have been found to make this design problem feasible.
Add Answer to:
Two mating spur gears of parallel shafts with center distance
of 4-in. are to be connected...
