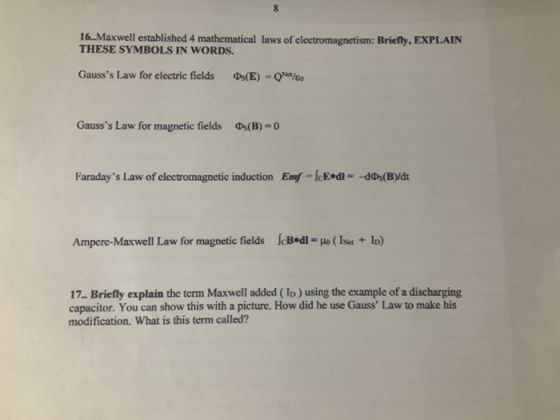

8 16.. Maxwell established 4 mathematical laws of electromagnetism: Briefly, EXPLAIN THESE SYMBOLS IN WORDS. Gauss's Law for electric fields Os(E) - Qrick/co Gauss's Law for magnetic fields Os(B) = 0 Faraday's Law of electromagnetic induction Emf ScE dl = dos(By/dt Ampere-Maxwell Law for magnetic fields ScBedl po ( Iset + Ip) 17.. Briefly explain the term Maxwell added ( lp ) using the example of a discharging capacitor. You can show this with a picture. How did he use Gauss' Law to make his modification. What is this term called?

Answer 1

E=electric field.

B= magnetic flux density also called magnetic induction.

Q(encl) = free charge that is inside the surface.

(φ​​​​​​s ) =magnetic flux through the surface.

The permittivity of free space(ε0) is the capability of the classical vacuum to permit the electric field. It as the definite defined value which can be approximated to

ε0 = 8.854187817 × 10-12 F.m-1 (In SI Unit).

μ0 = vaccum permeability.

μ0 = 4π×10−7 H/m = 1.2566370614…×10−6 N/A2 (1 henry per metre ≡ newton per square ampere.

Inet = net charge in a surface enclosed .

Id = displacement current due to discharging of capacitor.

2.this extra term added to the equation is known as displacement current.

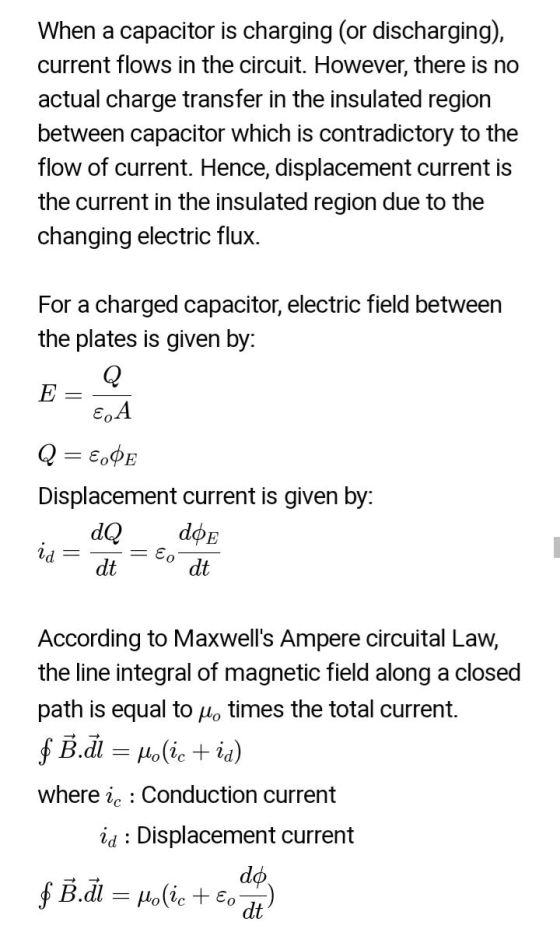

When a capacitor is charging (or discharging), current flows in the circuit. However, there is no actual charge transfer in the insulated region between capacitor which is contradictory to the flow of current. Hence, displacement current is the current in the insulated region due to the changing electric flux. For a charged capacitor, electric field between the plates is given by: Q E EA Q= €0E Displacement current is given by: dфE id dt dt dQ = EO According to Maxwell's Ampere circuital Law, the line integral of magnetic field along a closed path is equal to po times the total current. $ B.di = Holic +id) where ic : Conduction current id : Displacement current do $ B.di = polic +Eo dt

If you have any queries just comment below I will definitely help you out.

If you satisfied the solution please rate it.

Thank you. ?
