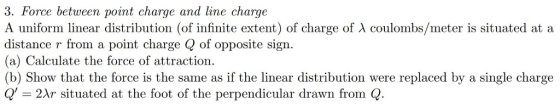

3. Force between point charge and line charge A uniform linear distribution (of infinite extent) of charge of λ coulombs/meter is situated at a distance r from a point charge Q of opposite sign. (a) Calculate the force of attraction. (b) Show that the force is the same as if the linear distribution were replaced by a single charge Q 2Ar situated at the foot of the perpendicular drawn from Q

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

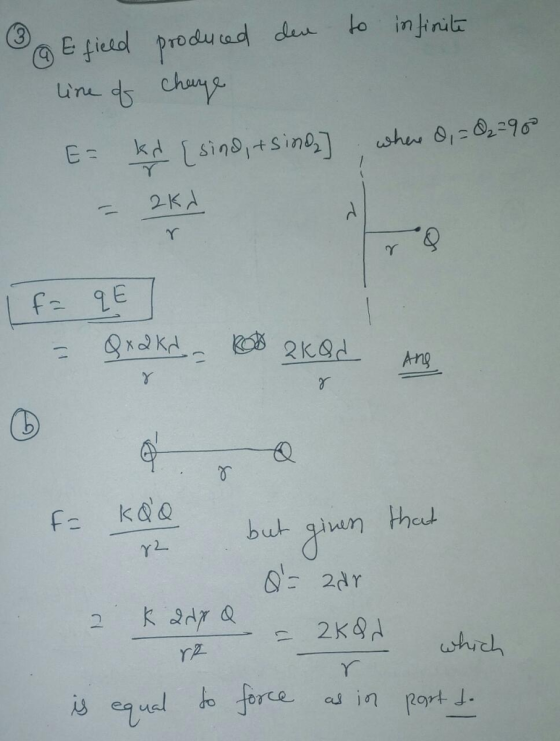

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
3. Force between point charge and line charge A uniform linear distribution (of infinite extent) of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An infinite uniform line of negative charge runs in the north-south direction. Consider a point that...

    An infinite uniform line of negative charge runs in the north-south direction. Consider a point that is located a distance, r= 10.0cm, from the infinite line. In which direction does the electric field point at this location? Radially outward away from the infinite line of charge Radially inward, toward the infinite line of charge Parallel to the infinite line of charge, pointing south Parallel to the infinite line of charge, pointing north At 45 degrees to the infinite line of...

  • An infinite line of charge with a uniform linear charge density λ runs along the ˆz-axis....

    An infinite line of charge with a uniform linear charge density λ runs along the ˆz-axis. This line also lies along the axis of an infinite dielectric shell, of dielectric constant K, whose inner radius is a and whose outer radius is b, and an infinite, neutral conducting shell whose inner radius is b and whose outer radius is c. a. What is the electric field everywhere in space? b. What is the surface charge density on the inner surface...

  • Question 9 and 10 9. An infinite wire contains a linear charge distribution of magnitude 10...

    Question 9 and 10 9. An infinite wire contains a linear charge distribution of magnitude 10 microcoulombs per meter. What is the electric field at a distance of 10 cm radially away from the wire? 10. By constructing a spherical Gaussian surface of radius r concentric with a sphere of radius a (a less than r) which carries a charge q distributed uniformly over it's surface, show that the electric fleld outside the charged surface is identical with that of...

  • An infinite line of uniform positive charge runs along the x axis and has a line...

    An infinite line of uniform positive charge runs along the x axis and has a line charge density of λ= 24.7​m​​nC​​. Consider the point (0 m, 3.42 m) which is located 3.42 meters above the infinite line. What is the magnitude of the electric field at this point?

  • An infinite line of uniform positive charge runs along the x axis and has a line...

    An infinite line of uniform positive charge runs along the x axis and has a line charge density of λ=24.9 ​m /​ ​nC ​​ . Consider the point (0 m, 6.99 m) which is located 6.99 meters above the infinite line. What is the magnitude of the electric field at this point?

  • An infinite line charge of linear charge density 1.5 x 10-6 C/m (Coulombs per meter) lies...

    An infinite line charge of linear charge density 1.5 x 10-6 C/m (Coulombs per meter) lies on the z axis. The potential is zero at a radial distance of 2.5 m from the wire. I.e. V(r=2.5) = 0. Given this, find the potential at a radial distance r = 2.0 m from the wire. Group of answer choices 4500 V -6025 V -1.27 x 104 V 0 V +1.27 x 104 V + 6025 V

  • The figure shows an infinite line with uniform linear charge density a = 5.0 uC/m and...

    The figure shows an infinite line with uniform linear charge density a = 5.0 uC/m and an infinite sheet with uniform surface charge density o = -2.0 uC/m2. If a charge qı = 2.0 uC is placed at (0.4, -0.3, 0) m as shown in the figure, find the total electric field Ē at point P. +0.4 m 0.3 m

  • An infinite line charge of uniform linear charge de sity λ--2.3 μC/m lies parallel to the...

    An infinite line charge of uniform linear charge de sity λ--2.3 μC/m lies parallel to the y axis at x--2 m. A pont charge of 3.6 μC is located at x = 2.5 m, y = 3.5 m. Find the x component of the electric field at x 3.5 m,y-3.0 m. kN/C Enter Help

  • An infinite line of uniform positive charge runs along the x axis and has a line...

    An infinite line of uniform positive charge runs along the x axis and has a line charge density of \lambda = 26.5 \frac{nC}{m}λ=26.5​m​​nC​​. Consider the point (0 m, 2.67 m) which is located 2.67 meters above the infinite line. What is the magnitude of the electric field at this point?

  • 1) Consider Fig. 12, which shows an infinite line of charge which contains a uniform charge...

    1) Consider Fig. 12, which shows an infinite line of charge which contains a uniform charge of a coulombs in every meter. You will now use Gauss' Law to derive an equation for the electric field around a line of charge. Fig. 12 Describe the electric field in the region surrounding the charge. (Draw a few sample lines) Is this electric field symmetrical (spherically, cylindrically... Using this information, choose a notional surface enclosing one meter of the line of charge...
