Add Answer to:

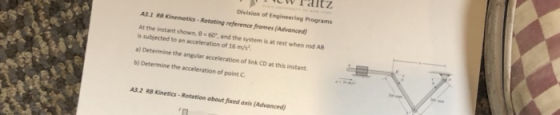

w altz Division of Engineering Programs A3.1 RB Kinemotics-Rototing reference fremes (Advanced Atthe instant shown, θ...
2. At the instant shown, 0-60°, and rod AB is subjected to a deceleration of 16 m/s 2 w is 10 m/s. Det ermine th e...

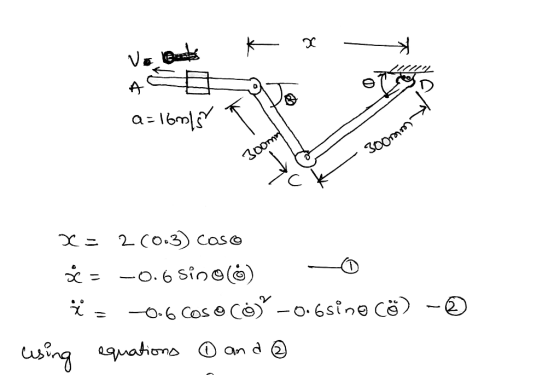

2. At the instant shown, 0-60°, and rod AB is subjected to a deceleration of 16 m/s 2 w is 10 m/s. Det ermine th e angular velocity and angular acceleration of link CD at this instant. 10 m/s a 16 m/s2 300 mm 300 mm
theta is 60 degree Problem 1: Section 16-4 At the instant shown, = 60°, and the...
theta is 60 degree
Problem 1: Section 16-4 At the instant shown, = 60°, and the link DC is rotating with angular velocity -20 rad/s and angular acceleration -200 rad/s2. Determine the velocity and acceleration of rod AB. 500 mm 500 mm
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Dete...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and...
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and angular acceleration shown. Determine: a) The angular velocity of rod AB-us匠エnSTAwT eenTer b) The acceleration of the collar A at this instant c) The acceleration of the center of mass of the rod at G 6THa GO Зо"
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar B...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...

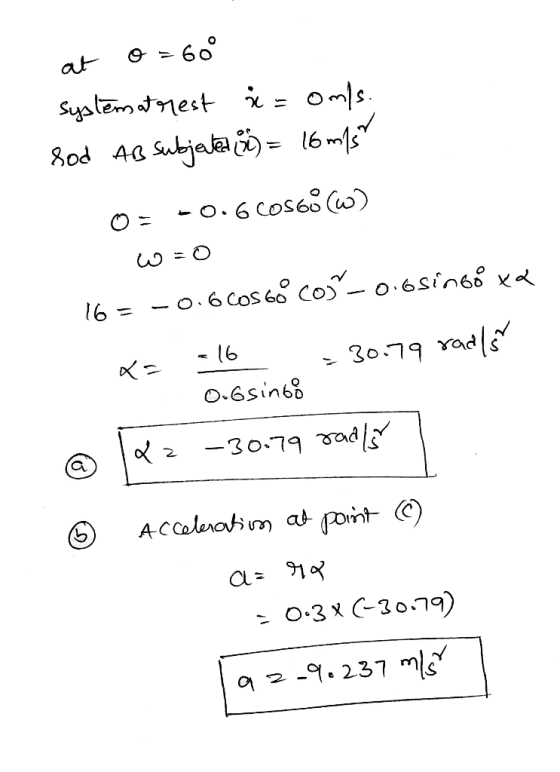

Explain to the smallest details the solution done below. 5/153 The clemcnts of a power hacksaw arc shown in the figure. The saw blade is mounted in a frame which slides along the horizontal guide. I...
Explain to the smallest details the solution done below.
5/153 The clemcnts of a power hacksaw arc shown in the figure. The saw blade is mounted in a frame which slides along the horizontal guide. If the motor turns the flywheel at a constant counterclockwise speed of 60 rev/min, determine the acceleration of the blade for the position where θ-90", and find the corre- sponding angular acceleration of the link AB. 100 mmm 450 mm 100 mm Problem 5/153 Reference...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when the velocity v = 11 m/s Figure 1) Part A Determine the angular velocity of link CD at this instant measured counterolackwise. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if the angular velocity is clockwise. rad/s Submit Figure < 1of1 > Part B Determine the angular acceleration of link CD at this...
A3.1 RB Kinematics -Rotating reference fromes (Advanced) An athlete exercises his arm by raising the 8-kg mass m. The shoulder joint A is stationary. The distance AB is 300 mm, the distance BC is...
A3.1 RB Kinematics -Rotating reference fromes (Advanced) An athlete exercises his arm by raising the 8-kg mass m. The shoulder joint A is stationary. The distance AB is 300 mm, the distance BC is 400 mm, and the distance from C to the pulley is 340 mm. The angular velocities w 1.5 rad/s and 2 rad/s are constant. What are the velocity and acceleration of the weights?
A3.1 RB Kinematics -Rotating reference fromes (Advanced) An athlete exercises his arm by...
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the...
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC.at the instant shown QUESTION 3 At the instant shown. θ-: 60p. and rod AB is subjected to a deceleration of 16 m/s when the velocity is 10 m s. Determine the angular velocity and angular acceleration of link CD at this instant QUESTION 2 The shaper mechanism is designed to give a slow cutting stroke and a...
2. At the instant shown, 0-60°, and rod AB is subjected to a deceleration of 16 m/s 2 w is 10 m/s. Det ermine th e angular velocity and angular acceleration of link CD at this instant. 10 m/s a 16 m/s2 300 mm 300 mm
theta is 60 degree
Problem 1: Section 16-4 At the instant shown, = 60°, and the link DC is rotating with angular velocity -20 rad/s and angular acceleration -200 rad/s2. Determine the velocity and acceleration of rod AB. 500 mm 500 mm
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and angular acceleration shown. Determine: a) The angular velocity of rod AB-us匠エnSTAwT eenTer b) The acceleration of the collar A at this instant c) The acceleration of the center of mass of the rod at G 6THa GO Зо"
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
Explain to the smallest details the solution done below.
5/153 The clemcnts of a power hacksaw arc shown in the figure. The saw blade is mounted in a frame which slides along the horizontal guide. If the motor turns the flywheel at a constant counterclockwise speed of 60 rev/min, determine the acceleration of the blade for the position where θ-90", and find the corre- sponding angular acceleration of the link AB. 100 mmm 450 mm 100 mm Problem 5/153 Reference...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when the velocity v = 11 m/s Figure 1) Part A Determine the angular velocity of link CD at this instant measured counterolackwise. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if the angular velocity is clockwise. rad/s Submit Figure < 1of1 > Part B Determine the angular acceleration of link CD at this...
A3.1 RB Kinematics -Rotating reference fromes (Advanced) An athlete exercises his arm by raising the 8-kg mass m. The shoulder joint A is stationary. The distance AB is 300 mm, the distance BC is 400 mm, and the distance from C to the pulley is 340 mm. The angular velocities w 1.5 rad/s and 2 rad/s are constant. What are the velocity and acceleration of the weights?
A3.1 RB Kinematics -Rotating reference fromes (Advanced) An athlete exercises his arm by...
QUESTION 1 The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC.at the instant shown QUESTION 3 At the instant shown. θ-: 60p. and rod AB is subjected to a deceleration of 16 m/s when the velocity is 10 m s. Determine the angular velocity and angular acceleration of link CD at this instant QUESTION 2 The shaper mechanism is designed to give a slow cutting stroke and a...
