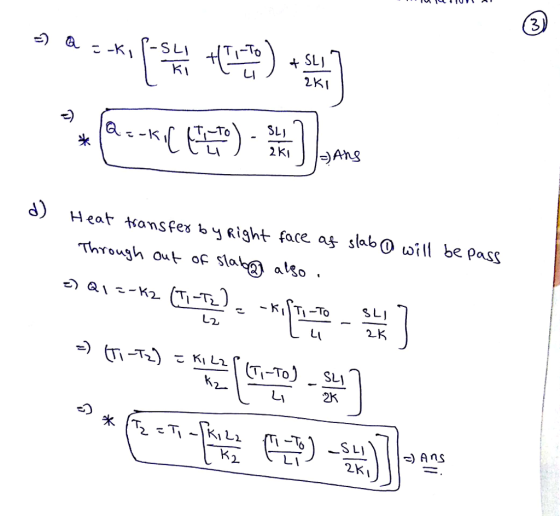

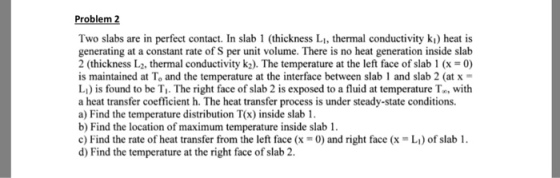

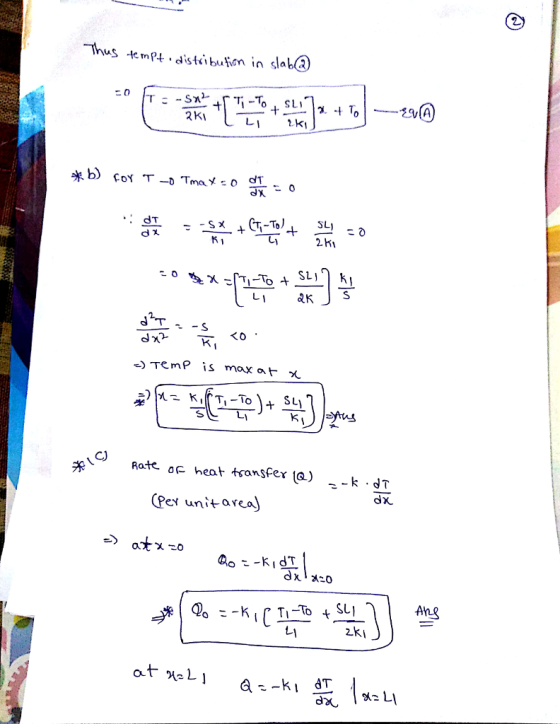

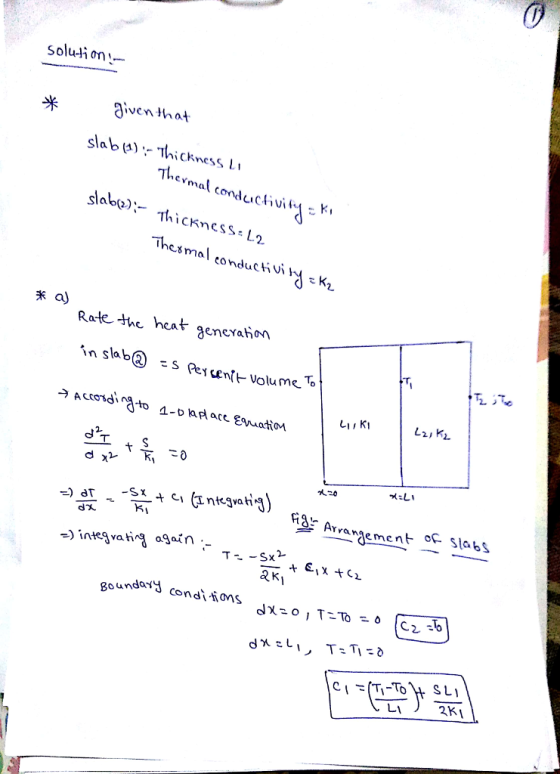

Problem Two slabs are in perfect contact. In slab 1 (thickness Li, thermal conductivity ki) heat...
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k...
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k = 2.5 W/m K and surface area A = 20.0 m². Both sides of the slab is maintained at a constant wall temperature of 358°K while it is subjected to a uniform but constant heat flux of 950.0 W/m2 Evaluate the temperature distribution/profile within the wall. Calculate the heat flux and temperature at location x = 0.1m. Problem 3: Consider a 10.0 m long...
3/5 25 pts.J A slab of thickness L, made of material with constant thermal conductivity k,...
3/5 25 pts.J A slab of thickness L, made of material with constant thermal conductivity k, is undergoing a 1-D, steady heat transfer. Its boundary surface at x 0 is insulated while the boundary surface at x= 1 is kept at constant temperature T= oc. Heat energy is generated within the slab at a rate of 2. qx)o cos(rx/2L) is the energy generation rate per unit volume (Wm) at x= 0. where qo a. Develop an expression for the steady-state...
Consider a large plane wall with a thickness of L and a constant thermal conductivity k....
Consider a large plane wall with a thickness of L and a constant thermal conductivity k. The left surface of the plane is exposed to a uniform heat flux, ?̇?. The right face is exposed air at uniform ?∞ with h. The emissivity on the right surface is ε. a. Write an appropriate form of heat conduction equation for the plane. b. Express the boundary conditions.
Consider the following 1-D heat conduction problem. Two slabs of different width and materials ar...
consider the following 1-D heat conduction problem. Two slabs of
different width and materials are in contact with one another. Slab
B is generating heat at a rate of per unit volume. The
temperature of the left boundary is T1 and the temperature of the
right boundary is T2. Assume 1-D and steady state. The properties
are listed as follows.
Constant properties:
T1 =300K, T2 =350K, k1 =200W/mK, k2 =400W/mK, =1000W/m, L1=L2
=0.2m
Using the finite-difference approach, we can treat...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature of the left surface is held constant at 42°C, whereas the right face is exposed to a flow of 12°C air with a convection heat transfer coefficient of 23 W/m2·K. Neglecting heat transfer by radiation, find the right wall surface temperature and the heat flux through the wall.
A large plane wall has a thickness L = 50 cm and thermal conductivity k =...
A large plane wall has a thickness L = 50 cm and thermal conductivity k = 25W/m·K. On the left surface (x = 0), it is subjected to a uniform heat flux ?̇0 while the surface temperature T0 is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL = 225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and...
Question You are studying heat transfer through a spherical shell container with a thermal conductivity k....
Question You are studying heat transfer through a spherical shell container with a thermal conductivity k. The inner and outer radii are identified as a and b, respectively. The inside surface of the shell is exposed to a constant heat flux in the outward direction. The outside surface temperature of the container is measured at Note that only the variables values provided in the problem statement are known. Assume steady one-dimensional radial heat transfer a. Give the mathematical formulation of...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k =...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k = 5 W/m.K experiences uniform volumetric heat generation at a rate ġ, while convection heat transfer occurs at both of its surfaces (x = -1, + L), each of which is exposed to a fluid of temperature Too = 20 °C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x) = a + bx + cx? where a = 82.0°C,...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
Problem 2: Consider a large plane slab of semi-thickness L = 0.3 m, thermal conductivity k = 2.5 W/m K and surface area A = 20.0 m². Both sides of the slab is maintained at a constant wall temperature of 358°K while it is subjected to a uniform but constant heat flux of 950.0 W/m2 Evaluate the temperature distribution/profile within the wall. Calculate the heat flux and temperature at location x = 0.1m. Problem 3: Consider a 10.0 m long...
3/5 25 pts.J A slab of thickness L, made of material with constant thermal conductivity k, is undergoing a 1-D, steady heat transfer. Its boundary surface at x 0 is insulated while the boundary surface at x= 1 is kept at constant temperature T= oc. Heat energy is generated within the slab at a rate of 2. qx)o cos(rx/2L) is the energy generation rate per unit volume (Wm) at x= 0. where qo a. Develop an expression for the steady-state...
consider the following 1-D heat conduction problem. Two slabs of
different width and materials are in contact with one another. Slab
B is generating heat at a rate of per unit volume. The
temperature of the left boundary is T1 and the temperature of the
right boundary is T2. Assume 1-D and steady state. The properties
are listed as follows.
Constant properties:
T1 =300K, T2 =350K, k1 =200W/mK, k2 =400W/mK, =1000W/m, L1=L2
=0.2m
Using the finite-difference approach, we can treat...
Question You are studying heat transfer through a spherical shell container with a thermal conductivity k. The inner and outer radii are identified as a and b, respectively. The inside surface of the shell is exposed to a constant heat flux in the outward direction. The outside surface temperature of the container is measured at Note that only the variables values provided in the problem statement are known. Assume steady one-dimensional radial heat transfer a. Give the mathematical formulation of...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
Problem 3. A plane wall of thickness 2L = 40 mm and thermal conductivity k = 5 W/m.K experiences uniform volumetric heat generation at a rate ġ, while convection heat transfer occurs at both of its surfaces (x = -1, + L), each of which is exposed to a fluid of temperature Too = 20 °C. Under steady-state conditions, the temperature distribution in the wall is of the form T(x) = a + bx + cx? where a = 82.0°C,...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
