Homework Answers

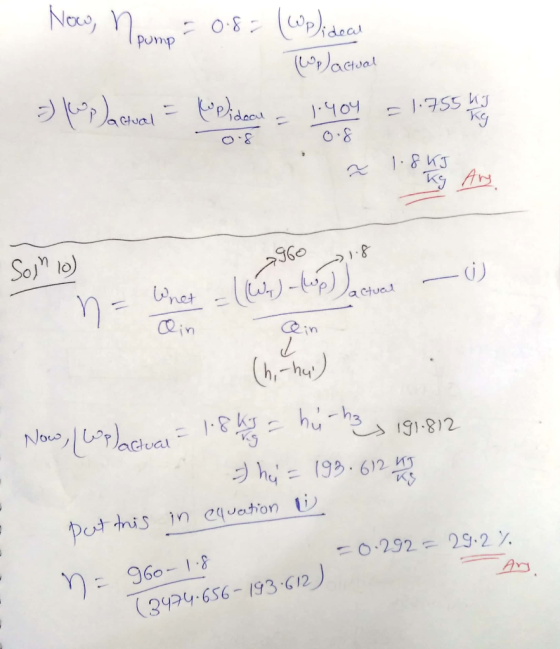

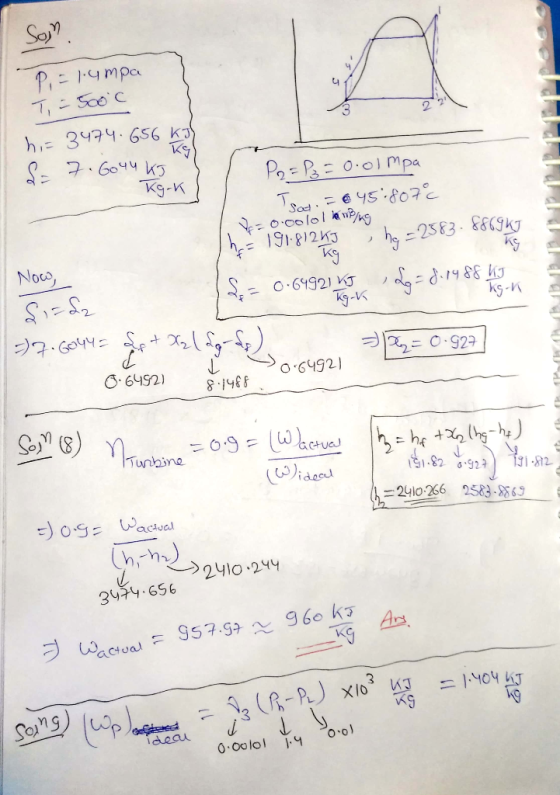

Hope this help
Add Answer to:

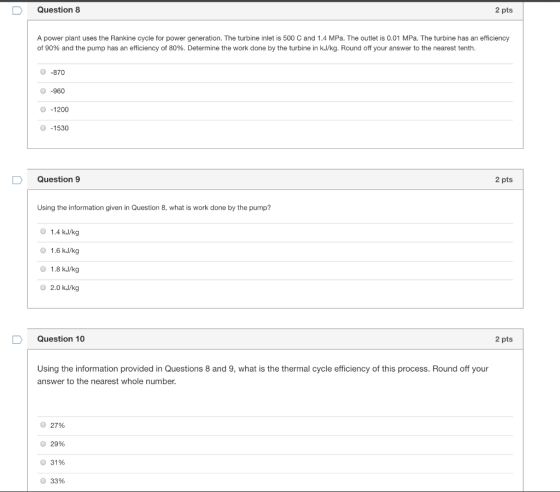

Question 8 2 pts A power plant uses the Rankine cycle for power generation. The turbine...
Consider a power plant with water as the working fluid that operates on a Rankine cycle....
Consider a power plant with water as the working fluid that operates on a Rankine cycle. It has a net power output of 40 MW. Superheated steam enters the turbine at 8 MPa and 600°C (h = 3642 kJ/kg; s = 7.0206 kJ/kg K) and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a lake through the tubes of the condenser. The isentropic efficiency of the turbine is 85%. The pump has...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600°C is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency n of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what...
Question 16 A steam power plant operates on a Rankine cycle. The steam enters the turbine...
Question 16 A steam power plant operates on a Rankine cycle. The steam enters the turbine at 10,000 kPa and 580'C. It is condensed in the condenser at 6 kPa. The isentropic efficiencies of the pump and turbine are 95% and 94% respectively. Determine the following Properties: h1 = 151.53 kJ/kg, n 1-0.0010064 m g . h3 - 3573.7 kJ/kg, X ds = 0.8097 hg. 4 2416.62 kJ/kg a. Work input to the pump in (kJ/kg) b. Heat added in...
Consider a power plant with water as the working fluid that operates on a Rankine cycle. It has a net power output of 40 MW
Consider a power plant with water as the working fluid that operates on a Rankine cycle. It has a net power output of 40 MW. Superheated steam enters the turbine at 8 MPa and 600°C (h = 3642 kJ/kg; s = 7.0206 kJ/kg K) and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a lake through the tubes of the condenser. The isentropic efficiency of the turbine is 85%. The pump has...
Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature...
Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600oC is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency η of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what is...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency. --Given Values--...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency....
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle...
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle and has a net power output of 75 MW. Steam enters the high-pressure turbine at 10 MPa and 400°C and the low-pressure turbine at 1 MPa and 400°C. Water leaves the condenser as a saturated liquid at a pressure of 100 kPa. The isentropic efficiency of the high-pressure turbine is 85% and the low-pressure turbine in 100%. The pump has an isentropic efficiency of...
A steam plant operates on a reheat Rankine cycle and has a net power output of...
A steam plant operates on a reheat Rankine cycle and has a net power output of 80MW. Steam enters the high pressure turbine at 10 MPa and 500 °C and the low pressure turbine at 1 MPa and 500 °C. Steam leaves the condenser as a saturated liquid at a pressure of 10kPa. The efficiency of the turbine is 80% and the efficiency of the pump is 95%. Determine the thermal efficiency of the cycle. Rankine Cycle with Reheat
A power plant using a Rankine power generation cycle and steam operates at a temperature of...
A power plant using a Rankine power generation cycle and steam operates at a temperature of 80 oC in the condenser, a pressure of 2.5 MPa in the boiler, and a maximum boiler temperature of 700 oC. Draw the two cycles described below on a temperature-entropy diagram for steam, and answer the following questions. a) What is the efficiency of this power plant, assuming the pump and turbine operate adiabatically and reversibly? What is the temperature of the steam leaving...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600°C is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency n of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what...
Question 16 A steam power plant operates on a Rankine cycle. The steam enters the turbine at 10,000 kPa and 580'C. It is condensed in the condenser at 6 kPa. The isentropic efficiencies of the pump and turbine are 95% and 94% respectively. Determine the following Properties: h1 = 151.53 kJ/kg, n 1-0.0010064 m g . h3 - 3573.7 kJ/kg, X ds = 0.8097 hg. 4 2416.62 kJ/kg a. Work input to the pump in (kJ/kg) b. Heat added in...
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle and has a net power output of 75 MW. Steam enters the high-pressure turbine at 10 MPa and 400°C and the low-pressure turbine at 1 MPa and 400°C. Water leaves the condenser as a saturated liquid at a pressure of 100 kPa. The isentropic efficiency of the high-pressure turbine is 85% and the low-pressure turbine in 100%. The pump has an isentropic efficiency of...
A steam plant operates on a reheat Rankine cycle and has a net power output of 80MW. Steam enters the high pressure turbine at 10 MPa and 500 °C and the low pressure turbine at 1 MPa and 500 °C. Steam leaves the condenser as a saturated liquid at a pressure of 10kPa. The efficiency of the turbine is 80% and the efficiency of the pump is 95%. Determine the thermal efficiency of the cycle. Rankine Cycle with Reheat
