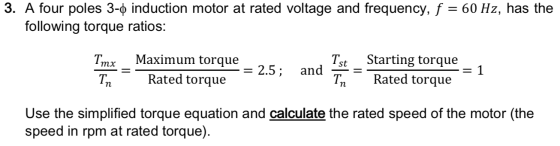

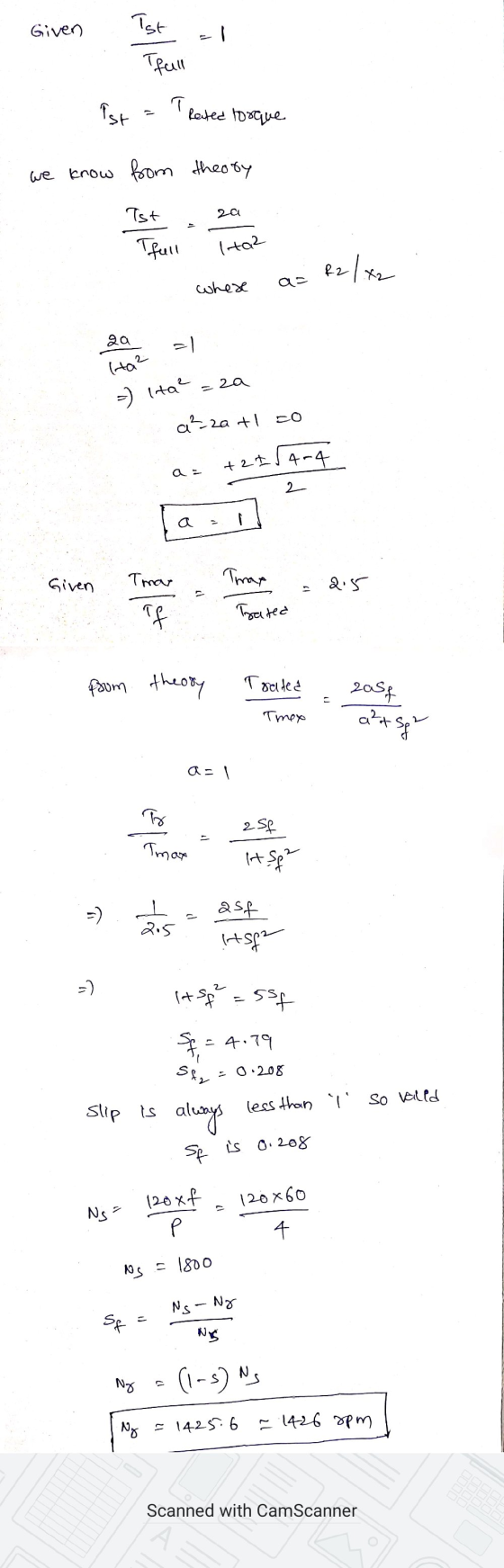

3. A four poles 3-0 induction motor at rated voltage and frequency, f = 60 Hz,...
a four pole 60-Hz, 440-V three phase induction motor is supplied by a variable voltage variable...
a four pole 60-Hz, 440-V three phase induction motor is supplied by a variable voltage variable frequency source. the motor has negible stator resistance and a rotor resistance of 0.1 ohm. the total inductance is 2 x 10 ^-3 H. a)find lowest possible frequency and voltage of proper operation. b) determine the starting torque, the speed at maximum torque, and the router's applied voltage when supply frequency is 8 hz, 40 hz and 60 hz
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is four times the rotor resistance per phase. At what speed will the motor develop maximum torque? 1200 rpm 1500 rpm 1350 rpm 1620 rpm What is the ratio of maximum to full load torque in a motor having slip of 4% at full load and 20% at maximum torque? 15 3 2.6 5.2 If a motor has a slip of 2% at rated voltage,...
44. The direction of rotation of an induction motor depends on a. the frequency of the...
44. The direction of rotation of an induction motor depends on a. the frequency of the input voltage b. the strength of the magnetic field set up c. the phase sequence of the input supply lines and order in which they are connected to the stator windings d. whether the windings are connected in delta or star determines the speed of the rotating magnetic field a. the number of poles in the motor b. the frequency of the supply d...
Please use exact methods and not approximations! 7.15. A three-phase, 460 V, 60 Hz, 1760 rpm, wound-rotor induction mot...
Please use exact methods and not approximations!
7.15. A three-phase, 460 V, 60 Hz, 1760 rpm, wound-rotor induction motor has the following equivalent circuit parameters Ri=0.25 ohm : R'= 0.2 ohm : Xi = 1.2 ohm : X2,= 1.1 ohm : 'Ku = 35 ohm The motor is connected to a 3ph, 460V, 60Hz supply and is star-connected. Use the simplified equivalent circuit. Initially the external rotor resistance is set to zero. (a) Calculate the speed (in rpm) at which...
A three-phase, 2.2 kV, 60 Hz, Y-connected induction motor has the following parameters: R1 = 0.2 ...
A three-phase, 2.2 kV, 60 Hz,
Y-connected induction motor has the following parameters: R1 = 0.2
Ω R2` = 0.4 Ω X1 + X2` = 1.5 Ω The motor’s full load speed is 580
rpm. Ignore the rotational losses and calculate: a. Full load
torque b. Output power rating c. Starting current d. Starting
torque
No poles were provided
A three-phase, 2.2 kV, 60 Hz, Y-connected induction motor has the following parameters: The motor's full load speed is 580 rpm....
5. A 208-V four-pole 60-Hz Y-connected wound-rotor induction motor is rated at 30 hp. Its equivalent...
5. A 208-V four-pole 60-Hz Y-connected wound-rotor induction motor is rated at 30 hp. Its equivalent circuit components are R=0.100 Ry=0.070. X - 10.00 R = 250 X; -0.2100 X=0.21002 Praw=500 W P =0.5% of input at full load For a slip of 0.05, find (a) The line current (b) The induced voltage in the rotor (c) The stator power factor (d) The rotor power factor (e) The rotor frequency (f) The stator copper losses (g) The core loss (h)...
Three-phase induction motor The three-phase induction motor nameplate gives the following informa...
Three-phase induction motor The three-phase induction motor nameplate gives the following information: 100 HP, 6 poles, 600 V, 60 Hz, PF =0.87. Rated motor slip s=0.0275 and rated motor current is 91.7 A. Measured at rated speed friction and ventilation losses are 1100 W. Measured between two motor terminals resistance is 0.305 Ω. f) For a load such where the motor rotates at the speed of 1180 r / min, determine shaft torque and calculate the mechanical power in HP,...
A 240-V, 20hp, four poles, 50 Hz, Y-connected induction motor has a full-load slip of 2...
A 240-V, 20hp, four poles, 50 Hz, Y-connected induction motor has a full-load slip of 2 percent. What is the rotor speed of this motor at rated load? 1470 rpm 1420 rpm 1500 rpm 1400 rpm
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
Need detailed answer, big thanks! 2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction...
Need detailed answer, big thanks!
2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction motor has the following parameters for the exact equivalent circuit (per phase): R, 0.7 Q; x 1.4 Q; x 1.2 ; xy 50 -1600 ; R 0.54 2. The rotational loss is 300 W at rated current. The motor is supplied by an 8-pole synchronous generator, Y-connected, with a synchronous reactance of x 1.5 (per phase). The motor is operating at rated frequency, rated...
44. The direction of rotation of an induction motor depends on a. the frequency of the input voltage b. the strength of the magnetic field set up c. the phase sequence of the input supply lines and order in which they are connected to the stator windings d. whether the windings are connected in delta or star determines the speed of the rotating magnetic field a. the number of poles in the motor b. the frequency of the supply d...
Please use exact methods and not approximations!
7.15. A three-phase, 460 V, 60 Hz, 1760 rpm, wound-rotor induction motor has the following equivalent circuit parameters Ri=0.25 ohm : R'= 0.2 ohm : Xi = 1.2 ohm : X2,= 1.1 ohm : 'Ku = 35 ohm The motor is connected to a 3ph, 460V, 60Hz supply and is star-connected. Use the simplified equivalent circuit. Initially the external rotor resistance is set to zero. (a) Calculate the speed (in rpm) at which...
A three-phase, 2.2 kV, 60 Hz,
Y-connected induction motor has the following parameters: R1 = 0.2
Ω R2` = 0.4 Ω X1 + X2` = 1.5 Ω The motor’s full load speed is 580
rpm. Ignore the rotational losses and calculate: a. Full load
torque b. Output power rating c. Starting current d. Starting
torque
No poles were provided
A three-phase, 2.2 kV, 60 Hz, Y-connected induction motor has the following parameters: The motor's full load speed is 580 rpm....
5. A 208-V four-pole 60-Hz Y-connected wound-rotor induction motor is rated at 30 hp. Its equivalent circuit components are R=0.100 Ry=0.070. X - 10.00 R = 250 X; -0.2100 X=0.21002 Praw=500 W P =0.5% of input at full load For a slip of 0.05, find (a) The line current (b) The induced voltage in the rotor (c) The stator power factor (d) The rotor power factor (e) The rotor frequency (f) The stator copper losses (g) The core loss (h)...
A 240-V, 20hp, four poles, 50 Hz, Y-connected induction motor has a full-load slip of 2 percent. What is the rotor speed of this motor at rated load? 1470 rpm 1420 rpm 1500 rpm 1400 rpm
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
Need detailed answer, big thanks!
2. A three-phase A-connected, 50 Hz, 400 V, 4 poles, induction motor has the following parameters for the exact equivalent circuit (per phase): R, 0.7 Q; x 1.4 Q; x 1.2 ; xy 50 -1600 ; R 0.54 2. The rotational loss is 300 W at rated current. The motor is supplied by an 8-pole synchronous generator, Y-connected, with a synchronous reactance of x 1.5 (per phase). The motor is operating at rated frequency, rated...
