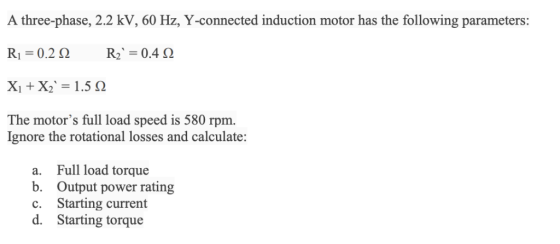

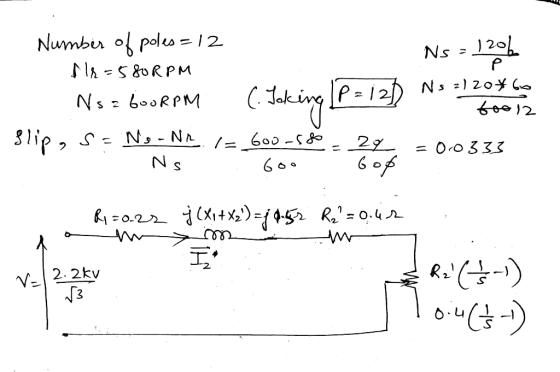

A three-phase, 2.2 kV, 60 Hz,
Y-connected induction motor has the following parameters: R1 = 0.2
Ω R2` = 0.4 Ω X1 + X2` = 1.5 Ω The motor’s full load speed is 580

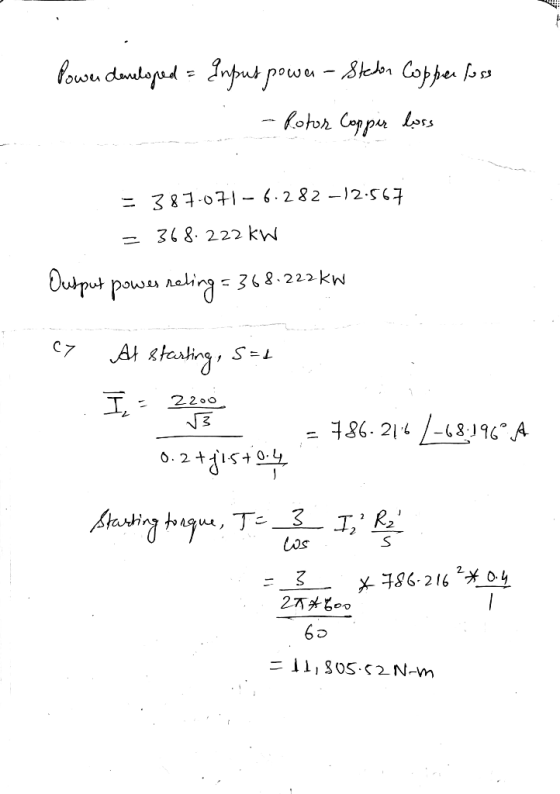

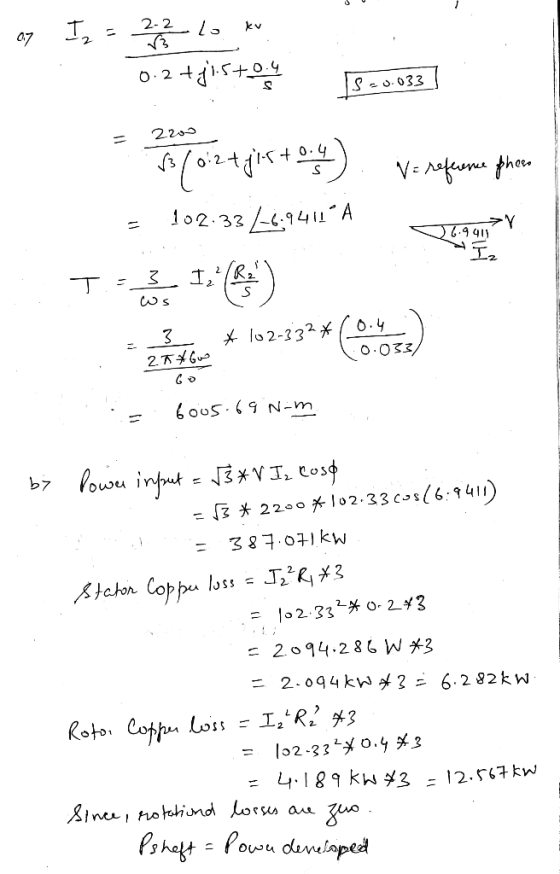

rpm. Ignore the rotational losses and calculate: a. Full load
torque b. Output power rating c. Starting current d. Starting
torque
No poles were provided
Homework Answers
