have confuse about part (c)..and i did not get correct answer ..so
I did not solve.. please don't give negative rating..
Thank You So Much..
Add Answer to:

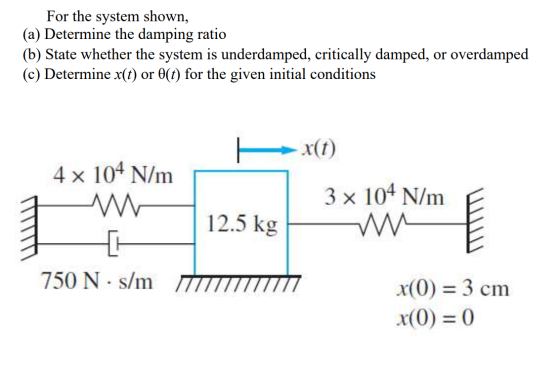

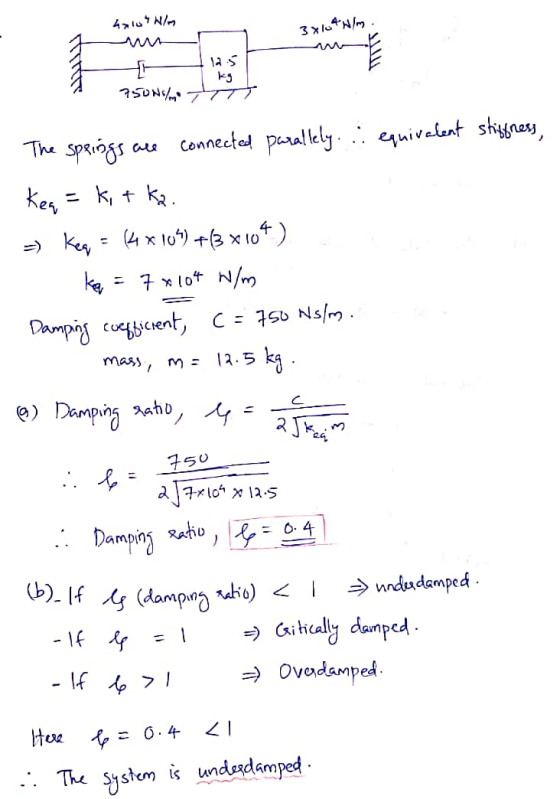

For the system shown, (a) Determine the damping ratio (b) State whether the system is underdamped,...
[1] 25 pts. A damped single degree of freedom system without applied forces is oscillating due to...
solve for #2
[1] 25 pts. A damped single degree of freedom system without applied forces is oscillating due to a certain unknown initial conditions. Derive a response equation x(t) for the following four cases. a. 5 pts. 0 (no damping) b. 10 pts. 0<1 (underdamped) c. 5 pts. >1 (overdamped) d. 5 pts. ๕-1 (critically damped) Here the is the damping ratio of the oscillating system. [2] 5 pts. For the same system of underdamped case with initial conditions...
4. (20 points) A mass pring system has a mass of kg, a damping constant of...
4. (20 points) A mass pring system has a mass of kg, a damping constant of kg/sec and a spring constant of 15 kg/sec2. There is no external force. The system is started in motion at y 4 meters with an initial velocity of 3 m/s in the downward direction. a) Find the differential equation and the initial conditions that describe the motion of this system. b) Solve the resulting initial value problem. c) Is the spring system overdamped, underdamped...
Consider a mass-spring-dashpot system in which the mass is m = 4 lb-sec^2/ft, the damping constant...
Consider a mass-spring-dashpot system in which the mass is m = 4 lb-sec^2/ft, the damping constant is c =24 lb-sec/ft, and the spring constant is k=52lb/ft. The motion is free damped motion and the mass is set in motion with initial position x0=5ft and the initial velocity v0= -7ft/sec. Find the position function x(t) and determine whether the motion is overdamped, critically damped, or underdamped.
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sket...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...
2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and...
2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and k=10 N/m. Is the system overdamped, underdamped, or critically damped? Calculate the damped natural frequency. Compute and plot the solution given the initial conditions x0 = 10 mm and v0 = 0 mm/s. (Hint: Use the same steps in Q1. Pay attention to units). 3. Consider the system x’’+ 4x’ + x = 0 for x0 = 1 mm, v0 = 0 mm/s. Is...
plz print your result -1 points МУ Not A mass weighing 3V 10 N stretches a spring 2 m. The mass is attached to a dashpot device that offers a damping force numerically equal to β (B > 0) times the...
plz print your result
-1 points МУ Not A mass weighing 3V 10 N stretches a spring 2 m. The mass is attached to a dashpot device that offers a damping force numerically equal to β (B > 0) times the instantaneous velocity Determine the values of the damping constant B so that the subsequent motion is overdamped, critically damped, and underdamped. (If an answer is an interval, use interval notation. Use g 9.8 m/s2 for the acceleration due to...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in Fig. II-2. The block is moved to the right of the equilibrium position and is released from rest (time t = 0) when its displacement, x = XO. Using the notations given in Fig. II-2,4 (1) Draw the free body diagram of the block - (2) Write the equation of motion of the block- If the initial displacement of the block to the right...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in Fig. II-2. The block is moved to the right of the equilibrium position and is released from rest (time t = 0) when its displacement, x = XO. Using the notations given in Fig. II-2,4 (1) Draw the free body diagram of the block - (2) Write the equation of motion of the block- If the initial displacement of the block to the right...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...
Please solve all parts. Thanks! (4) What is the damping ratio fof the system? (expressed using...
Please solve all parts. Thanks!
(4) What is the damping ratio fof the system? (expressed using the parameters given) (3 pts) (5) Given m1 = 1, m2-0, c1 = 1, c2-1, ki = 3.k2-3, calculate Wn and( (3 pts) (6) Based on the ζ in (5), this is a system (1 pt) A. Overdamped B. Underdamped C. Critically damped
solve for #2
[1] 25 pts. A damped single degree of freedom system without applied forces is oscillating due to a certain unknown initial conditions. Derive a response equation x(t) for the following four cases. a. 5 pts. 0 (no damping) b. 10 pts. 0<1 (underdamped) c. 5 pts. >1 (overdamped) d. 5 pts. ๕-1 (critically damped) Here the is the damping ratio of the oscillating system. [2] 5 pts. For the same system of underdamped case with initial conditions...
4. (20 points) A mass pring system has a mass of kg, a damping constant of kg/sec and a spring constant of 15 kg/sec2. There is no external force. The system is started in motion at y 4 meters with an initial velocity of 3 m/s in the downward direction. a) Find the differential equation and the initial conditions that describe the motion of this system. b) Solve the resulting initial value problem. c) Is the spring system overdamped, underdamped...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...
plz print your result
-1 points МУ Not A mass weighing 3V 10 N stretches a spring 2 m. The mass is attached to a dashpot device that offers a damping force numerically equal to β (B > 0) times the instantaneous velocity Determine the values of the damping constant B so that the subsequent motion is overdamped, critically damped, and underdamped. (If an answer is an interval, use interval notation. Use g 9.8 m/s2 for the acceleration due to...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in Fig. II-2. The block is moved to the right of the equilibrium position and is released from rest (time t = 0) when its displacement, x = XO. Using the notations given in Fig. II-2,4 (1) Draw the free body diagram of the block - (2) Write the equation of motion of the block- If the initial displacement of the block to the right...
A spring-mass-dashpot system for the motion of a block of mass m kg is shown in Fig. II-2. The block is moved to the right of the equilibrium position and is released from rest (time t = 0) when its displacement, x = XO. Using the notations given in Fig. II-2,4 (1) Draw the free body diagram of the block - (2) Write the equation of motion of the block- If the initial displacement of the block to the right...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...
Please solve all parts. Thanks!
(4) What is the damping ratio fof the system? (expressed using the parameters given) (3 pts) (5) Given m1 = 1, m2-0, c1 = 1, c2-1, ki = 3.k2-3, calculate Wn and( (3 pts) (6) Based on the ζ in (5), this is a system (1 pt) A. Overdamped B. Underdamped C. Critically damped
