TRANSFORMERS QUESTION

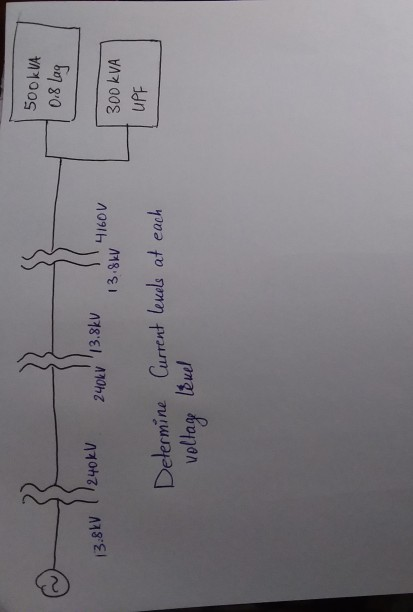

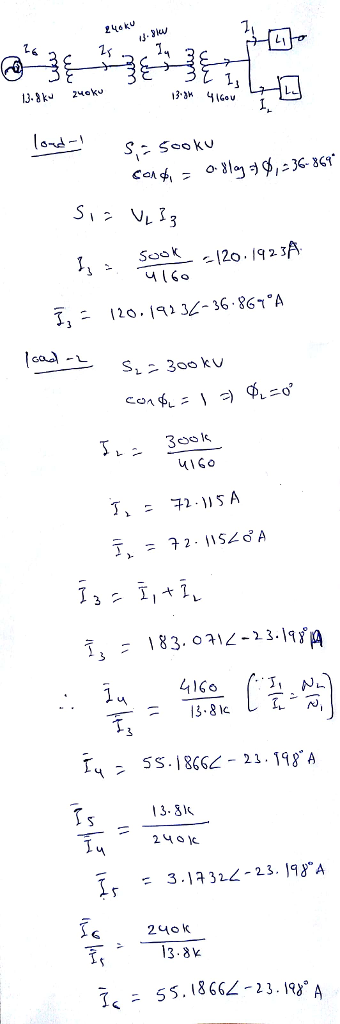

Determine the current levels at each voltage level

TRANSFORMERS QUESTION Determine the current levels at each voltage level 5o0kA 0.8 la 8 13.8kV (7240kV...
Three single-phase transformers are connected in delta-delta configuration to step up a line voltage of 8 kV to 120 kV. A 24 MVA load at angle 30 is connected to the high voltage side. Calculate: a) Transformer turns ratio b) Load power in MW c) Line current in HV and LV sides d) The apparent power supplied by each transformer e) If one transformer is removed for maintenance, what is the reduction percentage in the transformer bank power rating with...
[29] SECTION B: TRANSFORMERS QUESTION 2 2.1 A 240:48-volt, 50-F power factor of 0.8 lagging. If the no load current and iron loss of this e transformer supplies a load of 10 ampere at a ampere and 12-watt respectively, calculate the total current supplied and the powe oad current and iron loss of this transformer are factor. (7) KVA, 50-Hz, 1200:230-volt single phase transformer has the following series impedance values: Z1 = (0.047 +0.112) Z2 = (0.00172 +0.00411)2 Calculate: 2.2.1...
show all work please
motor are KT-kb = 0.05 N.m/A, Ra = 0.8 Ω, La-3 x 10-3 H, 1-8 × c :0.05 N.ms/rad. Determine the response (t) to the step input voltage ta(t)-12us(t). The parameter values of a certain 6. Assume the load torque Tit)-
motor are KT-kb = 0.05 N.m/A, Ra = 0.8 Ω, La-3 x 10-3 H, 1-8 × c :0.05 N.ms/rad. Determine the response (t) to the step input voltage ta(t)-12us(t). The parameter values of a certain...
Question No 4: -8+8 16 points) s 0 Ca 24V s n (-la) Find α'uivalent resistance of the circuit below (Fig 4a) Also, calculate current and voltage through each resistor. (4b) Find equivalent capacitance of the circuit(Fig: 4b) Also, find charge and voltage through each capacitor
Find the current and the power in each resistor.
8. Encuentre la corriente y la potencia en cada resistor. 24.0 V -,,+ 28,0 Ω Ω 12.0 V 一,」+ 12.012 16.0 Ω
10. Two loads connected in parallel draw a total of 2.4 kW at 0.8 pflagging from a 120-V rms, 60- Hz line. One load absorbs 1.5 kW at a 0.707 pf lagging. Determine: (a) the pf of the second load, INV 11. Calculate the line currents for the system shown in figure. Calculate also the total power and reactive power consumed by the load. w 12. For the balanced three-phase circuit in Fig.. Calculate the line currents, the phase voltage...
Question 2.2 [2] Determine: a) the voltage VC across the 2μF capacitor, and b) the energy wi stored in the 5H inductor. asitor, en I induktor. 100 - Ve + 50Ω 6mA 300 5 H
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
4. Three ideal single-phase transformers are connected as shown below. The turns ratio of each single-phase transformer is 2400/480. Assume a perfectly balanced three- phase system (with ABC sequence) and that the delta side is the high-voltage side. (a) If IA is 8 amperes at 20 degrees, determine the phasor current Ix. (b) If the three-phase load is 100 kW at 0.87 lagging power factor and 465 V, determine how much current is flowing in the primary winding of T3....
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
