Three single-phase transformers are connected in delta-delta configuration to step up a line voltage of 8...

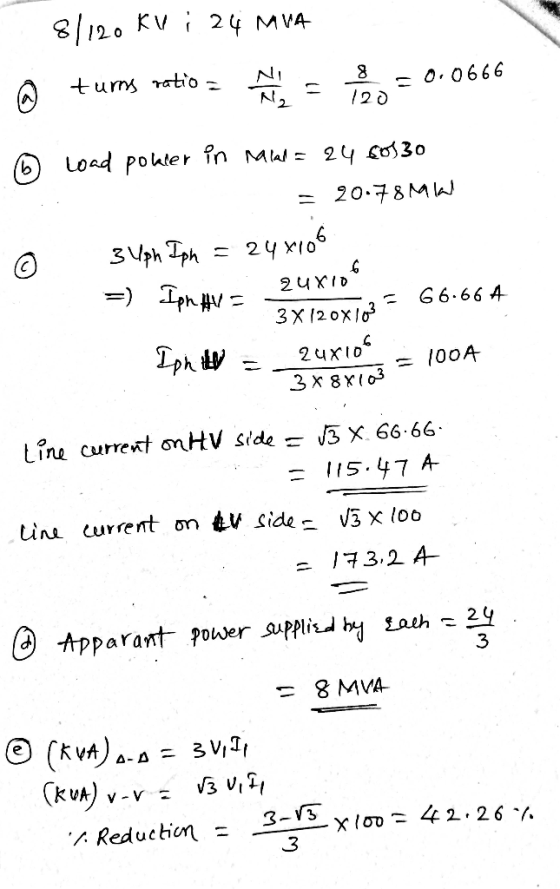

Three single-phase transformers are connected in delta-delta configuration to step up a line voltage of 8 kV to 120 kV. A 24 MVA load at angle 30 is connected to the high voltage side. Calculate:
a) Transformer turns ratio
b) Load power in MW
c) Line current in HV and LV sides
d) The apparent power supplied by each transformer
e) If one transformer is removed for maintenance, what is the reduction percentage in the transformer bank power rating with only two transformers?
Homework Answers
