A three single-phase transformers steps up the three-phase generator voltage of 13.8 kV (line to line)...

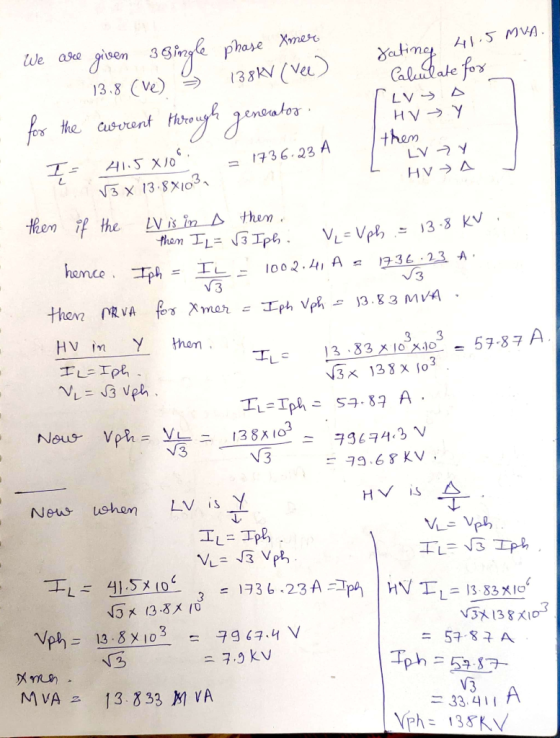

A three single-phase transformers steps up the three-phase generator voltage of 13.8 kV (line to line) to a transmission voltage of 138 kV (line to line). The generator rating is 41.5 MVA. Find the voltage, current, and kVA ratings of each transformer for the following connections: Low-voltage windings Delta, high-voltage windings Y. Low-voltage windings Y, high-voltage windings Delta.
Homework Answers
Add Answer to:
A three single-phase transformers steps up the three-phase
generator voltage of 13.8 kV (line to line)...
3. A 200 MVA, 20 kV, 60 Hz Y-connected solidly grounded three phase synchronous generator connect...
3. A 200 MVA, 20 kV, 60 Hz Y-connected solidly grounded three phase synchronous generator connected through a 200 MVA 20/138 KV Y-Y transformer to a 138 kV transmission line. The generator reactances to the machine's own base are X-1.10 Both of the transformers Y connections are solidly grounded and its positive, negative and zero sequence series resitances are all 0.10 pu. a. What is the voltage at the terminals of the generator during the sub transient period if a...
Three single-phase transformers are connected in delta-delta configuration to step up a line voltage of 8...
Three single-phase transformers are connected in delta-delta configuration to step up a line voltage of 8 kV to 120 kV. A 24 MVA load at angle 30 is connected to the high voltage side. Calculate: a) Transformer turns ratio b) Load power in MW c) Line current in HV and LV sides d) The apparent power supplied by each transformer e) If one transformer is removed for maintenance, what is the reduction percentage in the transformer bank power rating with...
1. Three single-phase step-up transformers rated at 75 MVA, 13.2 kV/80 kV are connected in delta-...
1. Three single-phase step-up transformers rated at 75 MVA, 13.2 kV/80 kV are connected in delta- wye on a 13.2 kV transmission line. If they feed a 180 MVA load, calculate the following: a. The secondary line voltage b. The currents in the primary and secondary windings C. The incoming and outgoing transmission line currents
Three single phase step-up transformers rated at 40 MVA, 13.2 kV/80 kV are connected in delta-wye on a 13.2 kV transmission line
a. Three single phase step-up transformers rated at 40 MVA, 13.2 kV/80 kV are connected in delta-wye on a 13.2 kV transmission line. If they feed a 90 MVA load calculate the following: i. The secondary line voltage ii. The current in the transformer windings iii. The incoming line currents iv. If the transformer types are two (2) additive and one (1) subtractive draw the connection diagram for the configuration stated using physical representation. b. A 3-phase squirrel cage motor has twelve (12) leads (labelled 1 to...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in...
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming a...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
Problem 2: A three-phase transformer bank (1-phase transformers) is to handle 30 MVA and have a...
Problem 2: A three-phase transformer bank (1-phase transformers) is to handle 30 MVA and have a primary voltage of 115kVLL and a secondary voltage of 4.16kVLL. Find the rating of each individual transformer in the bank (high side voltage, low side voltage, transformer turn ratio, and apparent power rating of each transformer) if the bank is connected: Wye-Wye Wye-Delta Delta-Wye Delta-Delta Draw winding connections for (a)-(d) (NOTE: This step does not need to be done in MATLAB). Assume all delta...
2. In order to meet an emergency, three single-phase transformers rated 100 kVA (each), 13.2 kV/2.4...
2. In order to meet an emergency, three single-phase transformers rated 100 kVA (each), 13.2 kV/2.4 kV are connected in Y-∆ on a 3-phase, 20 kV line. a. What is the maximum load that can connected to the transformer bank? b. What is the outgoing line voltage?
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in...
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in A-Y to form a three-płuase transformer wluch is fed by a 12,470-V transmission line. If the transformer supplies 60 MVA to a lood, find (a) the tum ratio for each transformer, (b) the currents in the primary and secondary windings of the transformer, (c) the incoming and outgoing transmission line cuarents
3. A 200 MVA, 20 kV, 60 Hz Y-connected solidly grounded three phase synchronous generator connected through a 200 MVA 20/138 KV Y-Y transformer to a 138 kV transmission line. The generator reactances to the machine's own base are X-1.10 Both of the transformers Y connections are solidly grounded and its positive, negative and zero sequence series resitances are all 0.10 pu. a. What is the voltage at the terminals of the generator during the sub transient period if a...
1. Three single-phase step-up transformers rated at 75 MVA, 13.2 kV/80 kV are connected in delta- wye on a 13.2 kV transmission line. If they feed a 180 MVA load, calculate the following: a. The secondary line voltage b. The currents in the primary and secondary windings C. The incoming and outgoing transmission line currents
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in A-Y to form a three-płuase transformer wluch is fed by a 12,470-V transmission line. If the transformer supplies 60 MVA to a lood, find (a) the tum ratio for each transformer, (b) the currents in the primary and secondary windings of the transformer, (c) the incoming and outgoing transmission line cuarents
