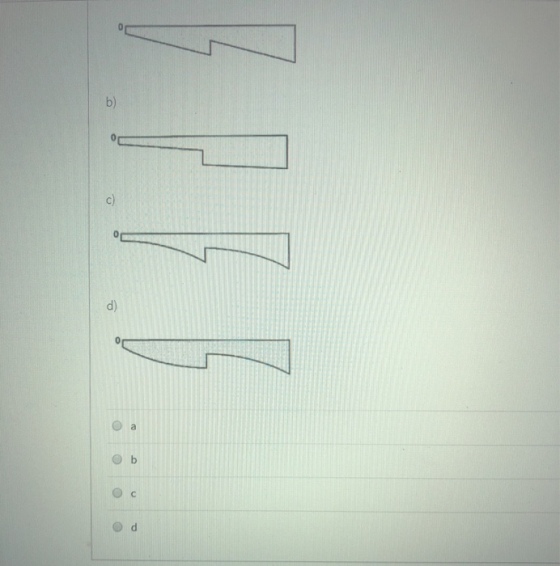

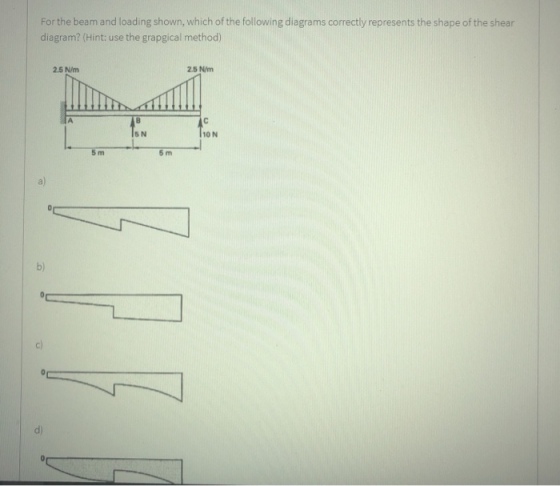

For the beam and loading shown, which of the following diagrams correctly represents the shape of...

Question

Question

engineering Mechanical-Engineering

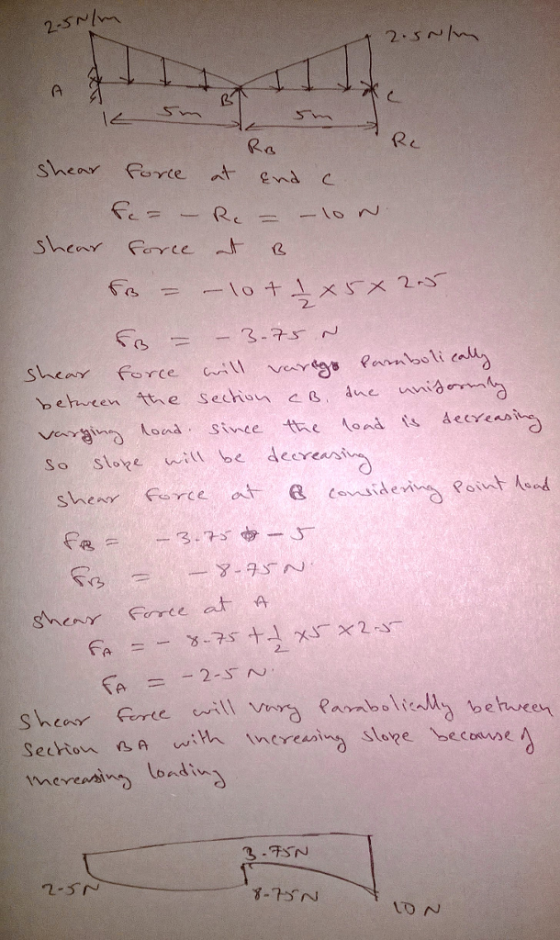

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

4. For the beam and loading shown, draw the shear force and bending moment diagrams and...

4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
For the beam and loading shown draw the shear and bending moment diagrams and then find...

For the beam and loading shown draw the shear and bending moment diagrams and then find the maximum absolute values of the shear and bending moment. 1. For the beam and loading shown draw the shear and bending-moment diagrams and then find the maximum absolute values of the shear and bending moment. 300 N/m 4 m
strength and materials heerhang beam with the loading shown oxcomms Identify the ums, maximum, and jumps in values on the diagrams Shear Diagram Moment Diagram heerhang beam with the loading...

strength and materials heerhang beam with the loading shown oxcomms Identify the ums, maximum, and jumps in values on the diagrams Shear Diagram Moment Diagram heerhang beam with the loading shown oxcomms Identify the ums, maximum, and jumps in values on the diagrams Shear Diagram Moment Diagram

For the beam and loading shown, draw the shear and bending-moment diagrams Extra credit: For the beam and loading shown, draw the shear and bending-moment diagrams Wo Wo Extra credit: For the bea...

For the beam and loading shown, draw the shear and bending-moment diagrams Extra credit: For the beam and loading shown, draw the shear and bending-moment diagrams Wo Wo Extra credit: For the beam and loading shown, draw the shear and bending-moment diagrams Wo Wo
Problem 4 Draw the shear and bending moment diagrams for the beam with the loading shown....

Problem 4 Draw the shear and bending moment diagrams for the beam with the loading shown. (HINT: Use integration techniques starting with the load function wx) ?, V o t- ?.
For the beam and loading shown, draw the shear and bending moment diagrams, and determine the...

For the beam and loading shown, draw the shear and bending moment diagrams, and determine the magnitude and location of the maximum shear and bending moment. 2 kN/m AC D 6 NT 3kN/m lm-- 1.2 m 0.6 m

For the beam shown in Fig. 9.3, draw the shear force and bending moment diagrams. Use...

For the beam shown in Fig. 9.3, draw the shear force and bending moment diagrams. Use the area method that relies on the relationships between loading and shear force and between shear force and bending moment. Indicate the slope of the shear force diagram at locations A, B, C, and D using the load information in Fig. 9.3. Indicate the slope of the bending moment diagram at the same four locations using information from the shear force diagram. | 6...
For the beam and loading shown, (a) draw the shear and bending-moment diagrams

For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment.
For the beam and loading shown, (a) draw the shear and bending-moment diagrams

For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment.

For the beam and loading shown, (a) draw the shear and bending-moment diagrams

For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment.
