Add Answer to:

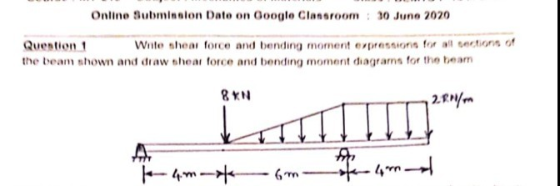

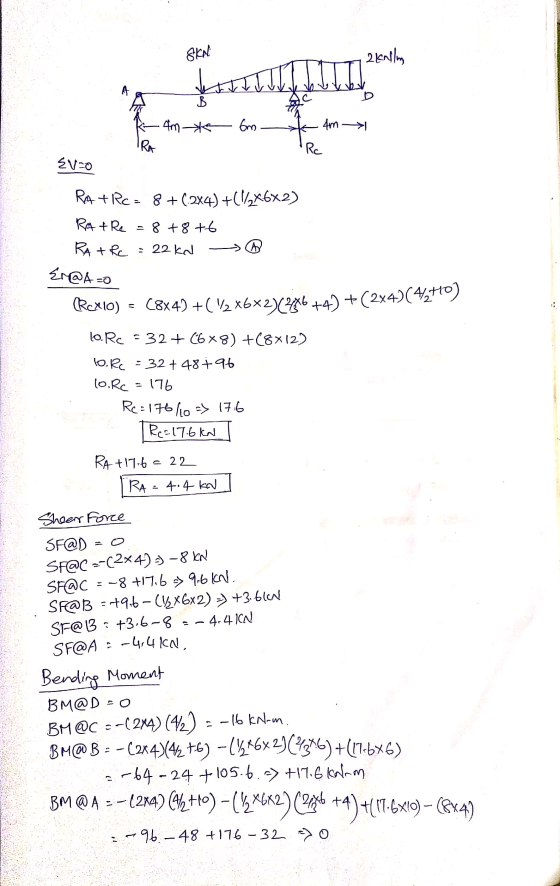

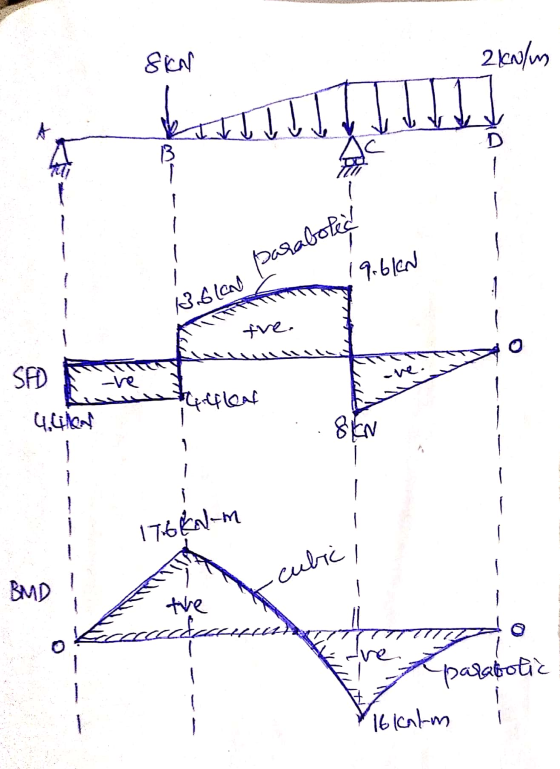

Online Submission Date on Google Classroom : 30 Juno 2020 Quention 1 Wife shear force and...
Mech Su Date.. ID. Student Name.. Question 1: Calculate the shear force and bending moment for...
Mech Su Date.. ID. Student Name.. Question 1: Calculate the shear force and bending moment for the beam subjected to the loads shown in the figure, then draw the shear force diagram (SFD) and bending moment diagram (BMD) as 50 kN 50 kN 25 kN/m A 4m 5 m 5 m
To determine the reactive forces and moments acting on a beam;express the shear and bending...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending m...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram...
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine t...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
For the Wide-Flange I-beam with distributed load as in figure below calculate: 1) the shear force...
For the Wide-Flange I-beam with distributed load as in figure below calculate: 1) the shear force V(x) and the bending moment M(x) and plot the shear and bending moment diagrams 2) the maximum bending moment MMAX For the section of the beam with Mwax calculate for each of the points A and B shown in the figure: (a) the flexural stress og (b) the principal stresses 01, 02, 03 c) the principal stress angle Upi (d) the absolute maximum shear...
draw axial force, shear force and bending moment diagrams 2m 4'm 30 kN 2m 50 kN...
draw axial force, shear force and bending moment
diagrams
2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m
4) Draw the shear force and bending moment diagrams for the beam subjected to the loading...
4) Draw the shear force and bending moment diagrams for the beam subjected to the loading shown. 30) KN SUKN
Mech Su Date.. ID. Student Name.. Question 1: Calculate the shear force and bending moment for the beam subjected to the loads shown in the figure, then draw the shear force diagram (SFD) and bending moment diagram (BMD) as 50 kN 50 kN 25 kN/m A 4m 5 m 5 m
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
For the Wide-Flange I-beam with distributed load as in figure below calculate: 1) the shear force V(x) and the bending moment M(x) and plot the shear and bending moment diagrams 2) the maximum bending moment MMAX For the section of the beam with Mwax calculate for each of the points A and B shown in the figure: (a) the flexural stress og (b) the principal stresses 01, 02, 03 c) the principal stress angle Upi (d) the absolute maximum shear...
draw axial force, shear force and bending moment
diagrams
2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m
4) Draw the shear force and bending moment diagrams for the beam subjected to the loading shown. 30) KN SUKN
