Water at 40C and 10 kPa is pumped adiabatically from the condenser of a powerplant to...

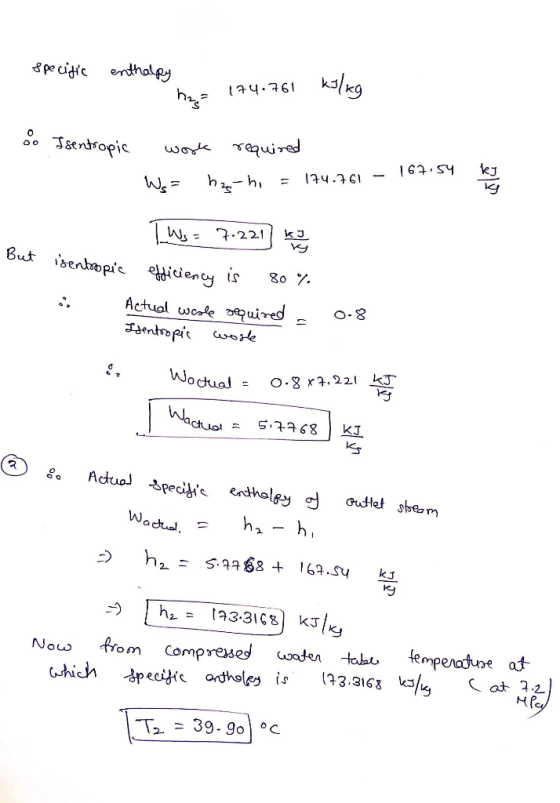

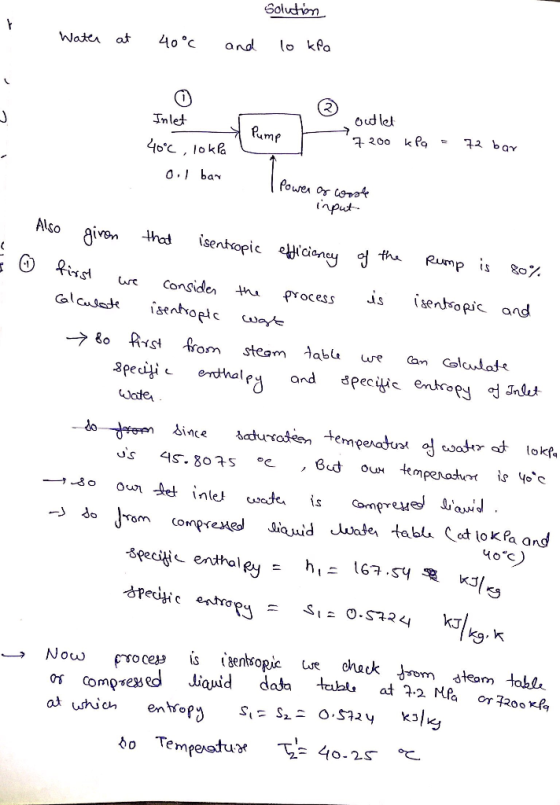

Water at 40C and 10 kPa is pumped adiabatically from the condenser of a powerplant to the boiler pressure of 7200 kPa. If the pump is 80% efficient compared with isentropic operation, find A) the work required B) the temperature rise of the water
Homework Answers
Add Answer to:
Water at 40C and 10 kPa is pumped adiabatically from the
condenser of a powerplant to...
Saturated liquid water at 10 kPa leaves the condenser of a steam power plant and is...
Saturated liquid water at 10 kPa leaves the condenser of a steam power plant and is pumped to the boiler pressure of 5 MPa. Calculate the work for an isentropic pumping process in kJ/kg.
Water is the working substance for an ideal Rankine cycle. The condenser pressure is equal to...
Water is the working substance for an ideal Rankine cycle. The condenser pressure is equal to 7.5 kPa. The boiler pressure is 8 MPa. Find: a) The specific work required by the pump b) The specific heat addition for the boiler c) The specific heat rejection for the condenser d) The specific work out of the turbine e) The thermal efficiency of the cycle 2. Solve problem 1, but this time assuming that the temperature at the inlet of the...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
You are to analyze a simple steam power plant. At the boiler exit, the pressure is...
You are to analyze a simple steam power plant. At the boiler exit, the pressure is 8 MPa and the temperature is 1000 °C. The turbine isentropic efficiency is 85%. The condenser pressure is 15 kPa and the water is a saturated liquid at the condenser exit. The pump isentropic efficiency is 80%. Answer the following: a) What is the quality at the exit in %, if the turbine is assumed isentropic? b) What is the work output of the...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a c...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
Problem 5-Irreversible Power...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
Explain which of the Laws of Thermodynamics are adhered to, or not, for the powerplant illustrated in Figure Q4 4. (a) BOILER Resistance beuter Figure Q4 TURHINE GIENERATO PUMP CONDENSER Two perfectl...
Explain which of the Laws of Thermodynamics are adhered to, or not, for the powerplant illustrated in Figure Q4 4. (a) BOILER Resistance beuter Figure Q4 TURHINE GIENERATO PUMP CONDENSER Two perfectly insulated, rigid wall tanks are connected by a pipe containing a valve (b) Tank A contains 3 kg of air at 75°C and 0.5 bar Tank B holds 9 kg of air at 25 C and 1.5bar The valve is opened and the air is allowed to mix....
Steam generated in a power plant at a pressure of 8,600 kPa and temperature of 600°C...
Steam generated in a power plant at a pressure of 8,600 kPa and
temperature of
600°C is fed to a turbine. Exhaust from the turbine enters a
condenser at 10 kPa, where it is
condensed to saturated liquid, which is then pumped to the boiler.
The turbine and the pump in the Rankine cycle operate at 80% and
75% efficiency, respectively.
a. Determine the rates of heat transfer in the boiler
b.Determine the rate of heat transfer in the condenser...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 50 kPa. At the entrance to the turbine, the temperature is 450°C. The isentropic efficiency of the turbine is 94 percent, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 6.3°C. The boiler is sized for a mass flow rate of 20 kg/s. Determine the rate at which heat is added in the...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
Problem 5-Irreversible Power...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
Explain which of the Laws of Thermodynamics are adhered to, or not, for the powerplant illustrated in Figure Q4 4. (a) BOILER Resistance beuter Figure Q4 TURHINE GIENERATO PUMP CONDENSER Two perfectly insulated, rigid wall tanks are connected by a pipe containing a valve (b) Tank A contains 3 kg of air at 75°C and 0.5 bar Tank B holds 9 kg of air at 25 C and 1.5bar The valve is opened and the air is allowed to mix....
Steam generated in a power plant at a pressure of 8,600 kPa and
temperature of
600°C is fed to a turbine. Exhaust from the turbine enters a
condenser at 10 kPa, where it is
condensed to saturated liquid, which is then pumped to the boiler.
The turbine and the pump in the Rankine cycle operate at 80% and
75% efficiency, respectively.
a. Determine the rates of heat transfer in the boiler
b.Determine the rate of heat transfer in the condenser...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 50 kPa. At the entrance to the turbine, the temperature is 450°C. The isentropic efficiency of the turbine is 94 percent, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 6.3°C. The boiler is sized for a mass flow rate of 20 kg/s. Determine the rate at which heat is added in the...
