Homework Answers
Add Answer to:

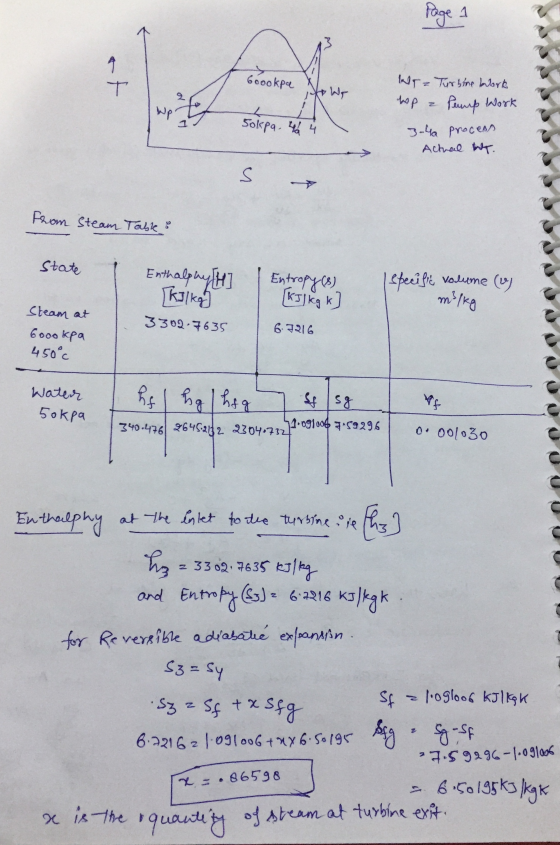

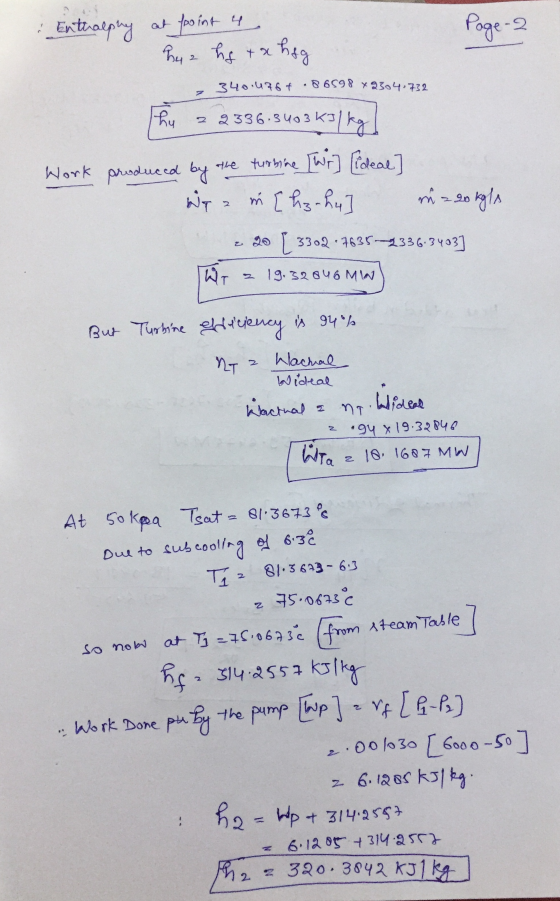

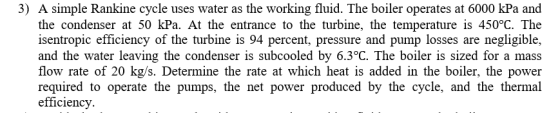

3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
An ideal reheat Rankine cycle with water as the working fluid operates the boiler at 20,000...
An ideal reheat Rankine cycle with water as the working fluid operates the boiler at 20,000 kPa, the reheater at 2000 kPa, and the condenser at 100 kPa. The temperature is 450 C at the entrance of the high-pressure and low-pressure turbines. The mass flow rate through the cycle is 1.74 kg/s. Determine the power used by pumps, the power produced by the cycle, the rate of heat transfer in the reheater, and the thermal efficiency of this system. Use...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the pressures of 4 MPa and 20 kPa. The fluid leaves the boiler at 550°C, the turbine efficiency is 89% and the fluid exits the condenser as saturated liquid. The flow rate is 81.5 kg/s and the pump efficiency is 52%. Determine: a. The net power output, in kW. b. The rate of heat input in the boiler, in kW. C. The rate of heat...
3. A water vapor thermoelectric plant operates in the regenerative Rankine cycle with two open feed...
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
A steam Rankine cycle operates between the pressure limits of 1500 psia in the boiler and...
A steam Rankine cycle operates between the pressure limits of 1500 psia in the boiler and 6 psia in the condenser. The turbine inlet temperature is 800°F. The turbine isentropic efficiency is 90 percent, the pump losses are negligible, and the cycle is sized to produce 2500 kW of power. How much error is caused in the thermal efficiency if the power required by the pump were completely neglected? Use steam tables. The error caused in the thermal efficiency if...
Consider a power plant with water as the working fluid that operates on a Rankine cycle....
Consider a power plant with water as the working fluid that operates on a Rankine cycle. It has a net power output of 40 MW. Superheated steam enters the turbine at 8 MPa and 600°C (h = 3642 kJ/kg; s = 7.0206 kJ/kg K) and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a lake through the tubes of the condenser. The isentropic efficiency of the turbine is 85%. The pump has...
A steam power plant operates on the basis of Rankine cycle between the pressure limits of...
A steam power plant operates on the basis of Rankine cycle between the pressure limits of 10 MPa in the boiler and 15 kPa in the condenser. The turbine inlet temperature is 425oC. The turbine isentropic efficiency is 90 percent, the pump losses are negligible, and the cycle is sized to produce 2500 kW of power. (a) Calculate the mass flow rate through the boiler, the power produced by the turbine, the rate of heat supply in the boiler, and...
An ideal reheat Rankine cycle with water as the working fluid operates the inlet of the...
An ideal reheat Rankine cycle with water as the working fluid operates the inlet of the high-pressure turbine at 8000 kPa and 450°C, the inlet of the low-pressure turbine at 300kPa and 500°C, and the condenser at 10 kPa. Determine the mass flow rate through the boiler needed for this system to produce a net 5000 kW of power and the thermal efficiency of the cycle.
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle...
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle and has a net power output of 75 MW. Steam enters the high-pressure turbine at 10 MPa and 400°C and the low-pressure turbine at 1 MPa and 400°C. Water leaves the condenser as a saturated liquid at a pressure of 100 kPa. The isentropic efficiency of the high-pressure turbine is 85% and the low-pressure turbine in 100%. The pump has an isentropic efficiency of...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
An ideal reheat Rankine cycle with water as the working fluid operates the boiler at 20,000 kPa, the reheater at 2000 kPa, and the condenser at 100 kPa. The temperature is 450 C at the entrance of the high-pressure and low-pressure turbines. The mass flow rate through the cycle is 1.74 kg/s. Determine the power used by pumps, the power produced by the cycle, the rate of heat transfer in the reheater, and the thermal efficiency of this system. Use...
3. (10 pts) A simple Rankine cycle operates with water as the working fluid between the pressures of 4 MPa and 20 kPa. The fluid leaves the boiler at 550°C, the turbine efficiency is 89% and the fluid exits the condenser as saturated liquid. The flow rate is 81.5 kg/s and the pump efficiency is 52%. Determine: a. The net power output, in kW. b. The rate of heat input in the boiler, in kW. C. The rate of heat...
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
Consider a power plant with water as working fluid that operates on a reheat Rankine cycle and has a net power output of 75 MW. Steam enters the high-pressure turbine at 10 MPa and 400°C and the low-pressure turbine at 1 MPa and 400°C. Water leaves the condenser as a saturated liquid at a pressure of 100 kPa. The isentropic efficiency of the high-pressure turbine is 85% and the low-pressure turbine in 100%. The pump has an isentropic efficiency of...
Problem 2. (11 points) The ideal simple Rankine operates at a pressure of 100 kPa in the condenser and at a pressure of 4.5 MPa in the evaporator. The liquid leaving the condenser is a saturated mixture with quality x-0.8. The mass flow rate of steam in the cycle is 1.5 kg/s. Plot the cycle on power-generation cycle using steam (a) T-s diagram for steam; and determine (b) What is the maximum temperature (°C) of this Rankine cycle (c) the...
