A steam Rankine cycle operates between the pressure limits of 1500 psia in the boiler and...

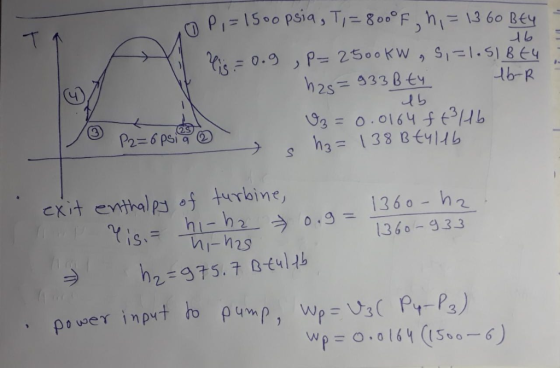

A steam Rankine cycle operates between the pressure limits of 1500 psia in the boiler and 6 psia in the condenser. The turbine inlet temperature is 800°F. The turbine isentropic efficiency is 90 percent, the pump losses are negligible, and the cycle is sized to produce 2500 kW of power. How much error is caused in the thermal efficiency if the power required by the pump were completely neglected? Use steam tables.

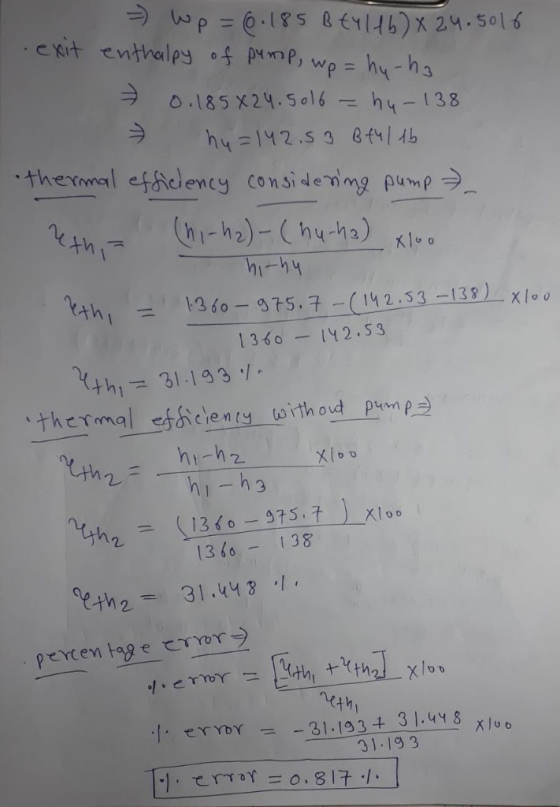

The error caused in the thermal efficiency if the power required by the pump was completely neglected is %
Homework Answers
Add Answer to:
A steam Rankine cycle operates between the pressure limits of
1500 psia in the boiler and...
A steam power plant operates on the basis of Rankine cycle between the pressure limits of...
A steam power plant operates on the basis of Rankine cycle between the pressure limits of 10 MPa in the boiler and 15 kPa in the condenser. The turbine inlet temperature is 425oC. The turbine isentropic efficiency is 90 percent, the pump losses are negligible, and the cycle is sized to produce 2500 kW of power. (a) Calculate the mass flow rate through the boiler, the power produced by the turbine, the rate of heat supply in the boiler, and...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 50 kPa. At the entrance to the turbine, the temperature is 450°C. The isentropic efficiency of the turbine is 94 percent, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 6.3°C. The boiler is sized for a mass flow rate of 20 kg/s. Determine the rate at which heat is added in the...
10-12A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of...
10-12A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 3 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 300°C, and the mass flow rate of steam through the cycle is 35 kg/s. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the thermal efficiency of the cycle and (b) the net power output of the power plant. If it is actual...
A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of...
A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 6 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 450◦C, and the mass flow rate of steam through the cycle is 50 kg/s. (a) Find the temperature, pressure and specific volume at states 1, 2, 3, and 4. (b) Find the heat supplied, heat rejected, work consumed by the pump, work produced by the turbine, net power generation,...
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of...
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of 5 MPa and 100 kPa. The temperature of the steam att the turbine is 500 C degree and the mass flow rate of steam through the cycle is 35 kg/s. a) Determine the thermal efficiency of the cycle. b) determine the net power output of the power plant ( Assume both the turbine and the pump have isentropic efficiency of 100%). c) Draw the...
Consider a steam power plant which operates on the simple ideal Rankine cycle (shown in the...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure of 160 bar and a condenser pressure of 0.045 bar. The turbine has an inlet steam temperature of 575°C, and has an isentropic efficiency of 90.5%. The pump has an isentropic efficiency of 88%. Hence, determine Show the cycle on a T-s diagram in relation to the saturation curves and clearly label all the principal points starting from the exit of the condenser. Sketch...
Answers are in parenthesis A steam Rankine cycle operates with 100 psia saturated steam that is...
Answers are in parenthesis
A steam Rankine cycle operates with 100 psia saturated steam that is reduced to 1 atm through expansion in a turbine with an isentropic efficiency of 80%. Water is at 80°F and 1 atm when it enters the boilerfeed pump. The pump's isentropic efficiency is 60%. What is the cycle's thermal efficiency? (Note: this is a problem from the PE exam) (0.098)
3. A water vapor thermoelectric plant operates in the regenerative Rankine cycle with two open feed...
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 40 kPa. At the entrance to the turbine, the temperature is 380 °C. The isentropic efficiency of the turbine is 88 %, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 5.9 °C. The boiler is sized for a mass flow rate of 17 kg/s. Determine the following values. °C m®/kg 1 kJ/kg (1)...
3) A simple Rankine cycle uses water as the working fluid. The boiler operates at 6000 kPa and the condenser at 50 kPa. At the entrance to the turbine, the temperature is 450°C. The isentropic efficiency of the turbine is 94 percent, pressure and pump losses are negligible, and the water leaving the condenser is subcooled by 6.3°C. The boiler is sized for a mass flow rate of 20 kg/s. Determine the rate at which heat is added in the...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure of 160 bar and a condenser pressure of 0.045 bar. The turbine has an inlet steam temperature of 575°C, and has an isentropic efficiency of 90.5%. The pump has an isentropic efficiency of 88%. Hence, determine Show the cycle on a T-s diagram in relation to the saturation curves and clearly label all the principal points starting from the exit of the condenser. Sketch...
Answers are in parenthesis
A steam Rankine cycle operates with 100 psia saturated steam that is reduced to 1 atm through expansion in a turbine with an isentropic efficiency of 80%. Water is at 80°F and 1 atm when it enters the boilerfeed pump. The pump's isentropic efficiency is 60%. What is the cycle's thermal efficiency? (Note: this is a problem from the PE exam) (0.098)
3. A water vapor thermoelectric plant operates in the
regenerative Rankine cycle with two open feed water heaters as
shown in the figure. The plant maintains the turbine inlet at 10
MPa and 600 ° C, and operates the condenser at 5 kPa. Steam is
drawn from the turbine at 0.6 and 0.2 MPa. The water comes out of
both feed water heaters as a saturated liquid. The isentropic
efficiency for the turbine and the pumps is 90%. For a...
