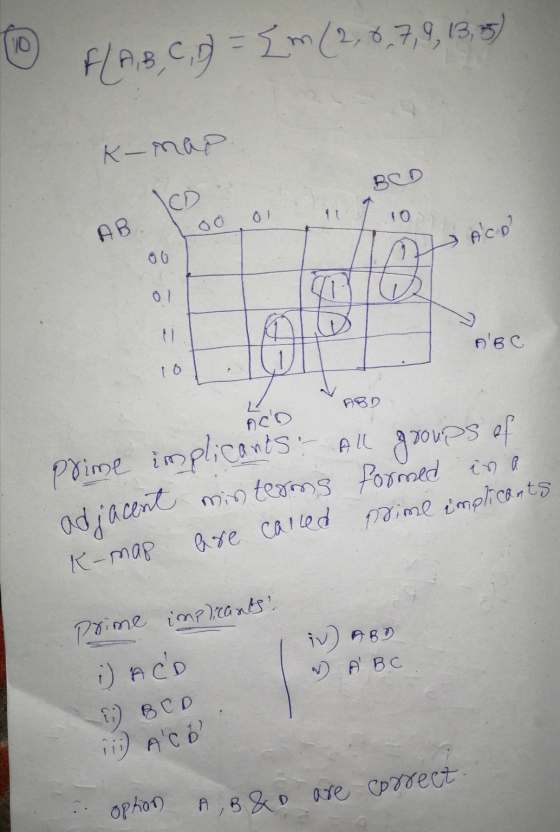

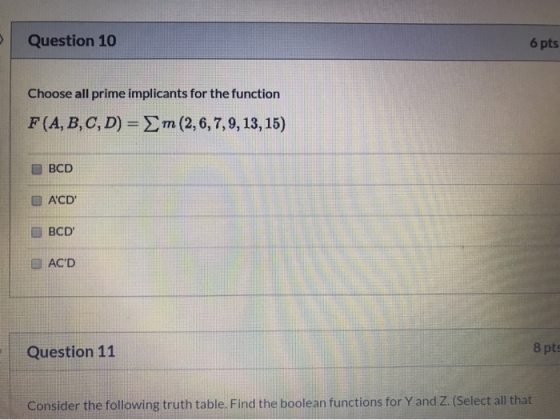

Question 10 6 pts Choose all prime implicants for the function F(A,B,C,D) = m(2,6,7,9,13,15) BCD A'CD'...
Problem 1: Find all of the essential prime implicants for the following Boolean functions (d) F...
Problem 1: Find all of the essential prime implicants for the following Boolean functions (d) F = y,z + wyz + w,(y' + z')
(a) List all seven product term implicants of F(a, b, c) = Σ m(0, 1, 5,...
(a) List all seven product term implicants of F(a, b, c) = Σ m(0, 1, 5, 7) Which of these implicants are prime? Why is a′c not an implicant? (b) Defne a prime implicant. (c) Why must every term in a minimum sum-of-products expression be a prime implicant? Check your answer using a Karnaugh map. 170 Unit 6 (d) Given that F(A, B, C, D) = Σ m(0, 1, 4, 5, 7, 10, 15), which of the following terms are...
Identify all essential prime-implicants of the function f(A,B,C,D) = (0,2,4,5,6,8,10,13,15) and find all minimal functions. Please...
Identify all essential prime-implicants of the function
f(A,B,C,D) =
(0,2,4,5,6,8,10,13,15) and find all minimal functions. Please show
steps.
uestion Completion Status QUESTION 1 What are the essential prime implicants for the logic function fa,b,c,d)...
uestion Completion Status QUESTION 1 What are the essential prime implicants for the logic function fa,b,c,d) □ blcd Σ m(2,3,5,6,7, 10, 11, 13, 14)? labd □cid lac QUESTION 2 A minimum cost SOP cover will include? O Some of the essential prime implicants O Only the essential prime implicants O All of the essential prime implicants Clich Save and Submit to save and submit Click Save All Answers to save all answers
Problem 4 [10 points] For the functions below, draw their Kmaps and indicate their prime implicants...
Problem 4 [10 points] For the functions below, draw their Kmaps and indicate their prime implicants and essential prime implicants. Then write down their simplified form. Make sure it is easy to distinguish them using different colors or other clear markings. (a) F(x, y, z, w)- (1, 5, 7, 8, 9, 12, 13, 14, 15) (b) G(r, y, z, w)- (0,2,3,4,5, 8, 10, 11, 13, 15)
Question 22 4 pts Find the sum-of-prime-implicants form of the following Boolean expression: xy +2'z+yz' +...
Question 22 4 pts Find the sum-of-prime-implicants form of the following Boolean expression: xy +2'z+yz' + xyz xy + xz+y O xy + y2 + 2 OX'z+y+z' O2 + y + 2 None of the above.
1. For the following function: f(a, b, c, d) =>m(0, 1, 4, 8, 10, 15)d(2,5,7, 11,...
1. For the following function: f(a, b, c, d) =>m(0, 1, 4, 8, 10, 15)d(2,5,7, 11, 13, 14) a. Complete the K-map cdlab 00 01 11 10 00 10 b. List all prime implicants c. List all essential prime implicants d. Simplify the function based on your K-map in the sum of product format
(18 pts) Given the Boolean function F(A, B, C, D) = Σ (0, 1, 2, 3,...
(18 pts) Given the Boolean function F(A, B, C, D) = Σ (0, 1, 2, 3, 4, 5, 7, 8, 10, 12, 14) a. Draw a Karnaugh Map. b. Identify the prime implicants of F. c. Identify all Essential Prime Implicants of F. d. Derive minimal SOP expressions for F e. Derive minimal POS expressions for F. f. Assume each inverter has a cost of 1, each 2-input NAND gate has a cost of 2, and 4-input NAND gate has...
1. (10 point 1 effort points) Simplify the Boolean function F(A, B,C, D) - 11 (3,4,6,7,1...
1. (10 point 1 effort points) Simplify the Boolean function F(A, B,C, D) - 11 (3,4,6,7,1 1,12,13,14,15). a) Generate K-Map of F b) Obtain simplified sum-of-products form of F c) Obtain simplified product-of-sums form of F Note:you should show the final prime implicants you used
Q3: 1. For the Boolean function shown below, answer the questions F(W,X,Y,Z) = 11 (6,8,9,10,11,12,13) use...
Q3: 1. For the Boolean function shown below, answer the questions F(W,X,Y,Z) = 11 (6,8,9,10,11,12,13) use K-MAP to: • Derive the BF as SOP. • Derive the BF as POS. • Find All prime implicants of the BF. • Determine the Essential prime implicant(s). 2. Let the BF change to have don't care condition as: F(W,X,Y,Z) = 1,3,7,11,15 + de E(0.2,5) Derive the BF as SOP and POS.
Problem 1: Find all of the essential prime implicants for the following Boolean functions (d) F = y,z + wyz + w,(y' + z')
Identify all essential prime-implicants of the function
f(A,B,C,D) =
(0,2,4,5,6,8,10,13,15) and find all minimal functions. Please show
steps.
uestion Completion Status QUESTION 1 What are the essential prime implicants for the logic function fa,b,c,d) □ blcd Σ m(2,3,5,6,7, 10, 11, 13, 14)? labd □cid lac QUESTION 2 A minimum cost SOP cover will include? O Some of the essential prime implicants O Only the essential prime implicants O All of the essential prime implicants Clich Save and Submit to save and submit Click Save All Answers to save all answers
Problem 4 [10 points] For the functions below, draw their Kmaps and indicate their prime implicants and essential prime implicants. Then write down their simplified form. Make sure it is easy to distinguish them using different colors or other clear markings. (a) F(x, y, z, w)- (1, 5, 7, 8, 9, 12, 13, 14, 15) (b) G(r, y, z, w)- (0,2,3,4,5, 8, 10, 11, 13, 15)
Question 22 4 pts Find the sum-of-prime-implicants form of the following Boolean expression: xy +2'z+yz' + xyz xy + xz+y O xy + y2 + 2 OX'z+y+z' O2 + y + 2 None of the above.
1. For the following function: f(a, b, c, d) =>m(0, 1, 4, 8, 10, 15)d(2,5,7, 11, 13, 14) a. Complete the K-map cdlab 00 01 11 10 00 10 b. List all prime implicants c. List all essential prime implicants d. Simplify the function based on your K-map in the sum of product format
(18 pts) Given the Boolean function F(A, B, C, D) = Σ (0, 1, 2, 3, 4, 5, 7, 8, 10, 12, 14) a. Draw a Karnaugh Map. b. Identify the prime implicants of F. c. Identify all Essential Prime Implicants of F. d. Derive minimal SOP expressions for F e. Derive minimal POS expressions for F. f. Assume each inverter has a cost of 1, each 2-input NAND gate has a cost of 2, and 4-input NAND gate has...
1. (10 point 1 effort points) Simplify the Boolean function F(A, B,C, D) - 11 (3,4,6,7,1 1,12,13,14,15). a) Generate K-Map of F b) Obtain simplified sum-of-products form of F c) Obtain simplified product-of-sums form of F Note:you should show the final prime implicants you used
Q3: 1. For the Boolean function shown below, answer the questions F(W,X,Y,Z) = 11 (6,8,9,10,11,12,13) use K-MAP to: • Derive the BF as SOP. • Derive the BF as POS. • Find All prime implicants of the BF. • Determine the Essential prime implicant(s). 2. Let the BF change to have don't care condition as: F(W,X,Y,Z) = 1,3,7,11,15 + de E(0.2,5) Derive the BF as SOP and POS.
