Identify all essential prime-implicants of the function f(A,B,C,D) = (0,2,4,5,6,8,10,13,15) and find all minimal functions. Please...
Identify all essential prime-implicants of the function
f(A,B,C,D) =
(0,2,4,5,6,8,10,13,15) and find all minimal functions. Please show
steps.
Homework Answers

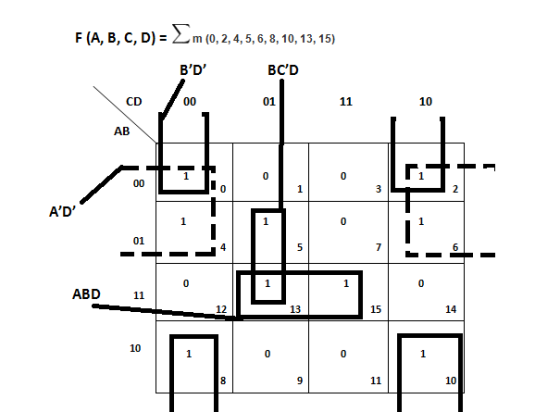

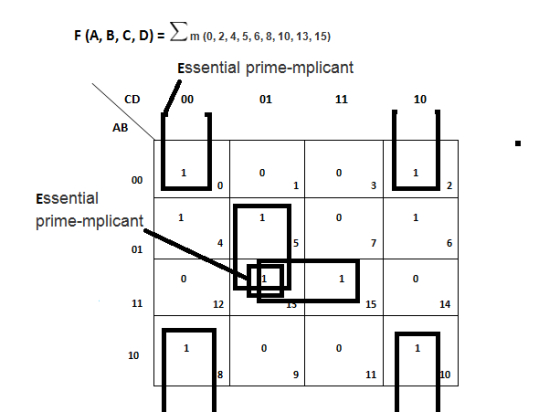

The Minimal function of SOP is
F = A’D’+AB+B’D’+BC’D
Add Answer to:
Identify all essential prime-implicants of the function
f(A,B,C,D) =
(0,2,4,5,6,8,10,13,15) and find all minimal functions. Please...
Using a 4-variable K-map, find all prime implicants, essential prime implicants and a minimal sum-of-products expression...
Using a 4-variable K-map, find all prime implicants, essential prime implicants and a minimal sum-of-products expression for f(A, B, C, D) = sigma m(1,4,5,6,7,12,13,14)
