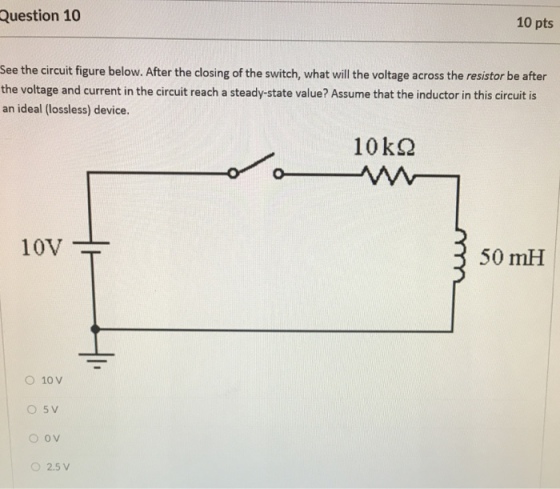

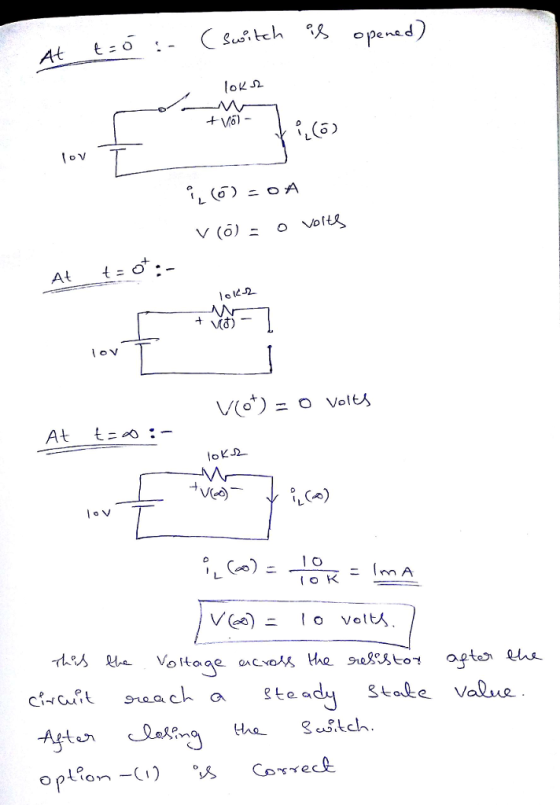

Question 10 10 pts See the circuit figure below. After the closing of the switch, what will the voltage across the resistor be after the voltage and current in the circuit reach a steady-state value? Assume that the inductor in this circuit is an ideal (lossless) device. 10VT 50 mH O 10 V 2.5 V
