Using the data below, determine the angle (degrees) of the desired pole with respect to the...
QUESTION 5 Using the data below, determine the angle (degrees) of the desired pole with respect...

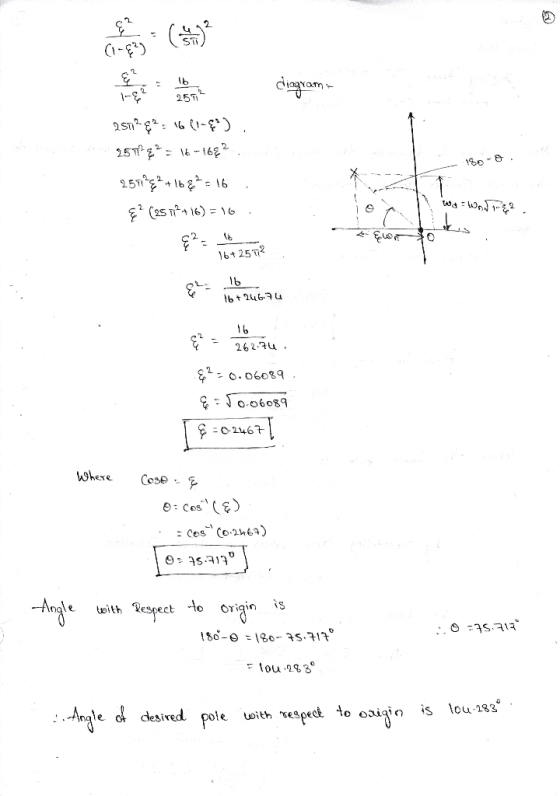

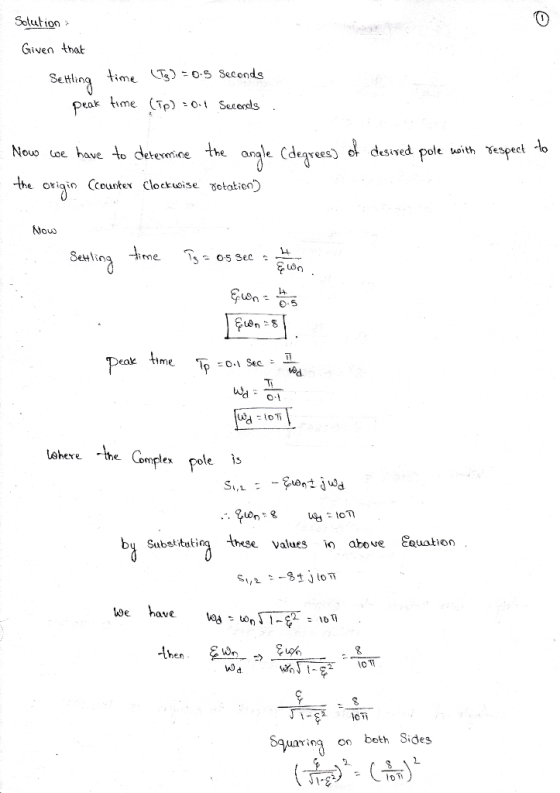

QUESTION 5 Using the data below, determine the angle (degrees) of the desired pole with respect to the origin (counter-clockwise rotation): Hint: Do not include the i" Settling Time (Ts) 5 seconds Peak Time (Tp) 1.0 seconds
Using the data below, determine the real component of the desired pole (which your root locus...
Using the data below, determine the real component of the desired pole (which your root locus would pass through): Settling Time (Ts) = 5 seconds Peak Time (Tp) = 1.0 seconds
R(s) C(s) G(s)G(s) Given the simple control loop above and the data below, determine the Kp...
R(s) C(s) G(s)G(s) Given the simple control loop above and the data below, determine the Kp gain for the Go(s) PD-controller Peak time (Tp)-0.1 seconds Settling Time (Ts)-0.5 second G(s) = (s+2) / (s^3 + 9m2 + 8s)
Using the Pole Method determine the stresses acting on the horizontal and vertical planes for the...
Using the Pole Method determine the stresses acting on the horizontal and vertical planes for the following: Plane A Normal stress 50 psi compression and Shear Stress 150 psi counter clock wise rotation Plane B Normal stress 250 psi compression and Shear Stress 50 psi clockwise rotation Plane B is oriented 10 degrees counter clockwise from horizontal
For the given system above, determine the gain K that will give the system desired response below: Settling time of 5 seconds Peak time of 0.5 seconds The given plant has a transfer function of: Gp...
For the given system above, determine the gain K that will give
the system desired response below:
Settling time of 5 seconds
Peak time of 0.5 seconds
The given plant has a transfer function of: Gp = (s + 4)/( (s +
1)*(s + 3) )
The controller has a transfer function of: Gc =
(s+27.75)/s
QUESTION 2 10 points Save Answer Y(S) R(s) Gc(s) Gp(s) For the given system above, determine the gain K that will give the system...
Y(S) Gp(s) Gc(s) R(S) For the given system above, determine the gain K that will give the system desired response below . Settling time of 2 seconds . Peak time of 0.5 seconds . The given plant h...
Y(S) Gp(s) Gc(s) R(S) For the given system above, determine the gain K that will give the system desired response below . Settling time of 2 seconds . Peak time of 0.5 seconds . The given plant has a transfer function of: Gp - (s +8V( (s +6'(s+4) The controller has a transfer function of: Gc (s+33.7392Vs
Y(S) Gp(s) Gc(s) R(S) For the given system above, determine the gain K that will give the system desired response below . Settling...
QUESTION t- Y(S) Gc(S) Gp(S) R(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 5 seconds Peak time of 0.5 seconds The given plan...
QUESTION t- Y(S) Gc(S) Gp(S) R(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 5 seconds Peak time of 0.5 seconds The given plant has a transfer function of: Gp (s4V(s0) (s1)(s 2) (s6) · The controller has a transfer function of: GC = (s+2.8417)
QUESTION t- Y(S) Gc(S) Gp(S) R(s) For the given system above, determine the gain K that will give the system desired response below:...
4 R(s) Y(S) Gp(s) Gc(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 1.6 seconds . Peak time of 0.8 seconds · The given plan...
4 R(s) Y(S) Gp(s) Gc(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 1.6 seconds . Peak time of 0.8 seconds · The given plant has a transfer function of:Gp-6+8n (s + 6 .(s + 4)) . The controller has a transfer function of: GC = (s+ 11.1812/s
4 R(s) Y(S) Gp(s) Gc(s) For the given system above, determine the gain K that will give the system desired...
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of G...
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of Gp(s) if it is desired that the uncompensated system has a 10% OS (overshoot) to a step input. (4 points) a 5% overshoot and a peak time Tp 3.1 meets the requirements described in part (b) and achieves zero steady state (b) Compute the desired...
Using Mohr's circle determine for the below differential element: a) the principal stresses and the plan...
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
QUESTION 5 Using the data below, determine the angle (degrees) of the desired pole with respect to the origin (counter-clockwise rotation): Hint: Do not include the i" Settling Time (Ts) 5 seconds Peak Time (Tp) 1.0 seconds
R(s) C(s) G(s)G(s) Given the simple control loop above and the data below, determine the Kp gain for the Go(s) PD-controller Peak time (Tp)-0.1 seconds Settling Time (Ts)-0.5 second G(s) = (s+2) / (s^3 + 9m2 + 8s)
For the given system above, determine the gain K that will give
the system desired response below:
Settling time of 5 seconds
Peak time of 0.5 seconds
The given plant has a transfer function of: Gp = (s + 4)/( (s +
1)*(s + 3) )
The controller has a transfer function of: Gc =
(s+27.75)/s
QUESTION 2 10 points Save Answer Y(S) R(s) Gc(s) Gp(s) For the given system above, determine the gain K that will give the system...
Y(S) Gp(s) Gc(s) R(S) For the given system above, determine the gain K that will give the system desired response below . Settling time of 2 seconds . Peak time of 0.5 seconds . The given plant has a transfer function of: Gp - (s +8V( (s +6'(s+4) The controller has a transfer function of: Gc (s+33.7392Vs
Y(S) Gp(s) Gc(s) R(S) For the given system above, determine the gain K that will give the system desired response below . Settling...
QUESTION t- Y(S) Gc(S) Gp(S) R(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 5 seconds Peak time of 0.5 seconds The given plant has a transfer function of: Gp (s4V(s0) (s1)(s 2) (s6) · The controller has a transfer function of: GC = (s+2.8417)
QUESTION t- Y(S) Gc(S) Gp(S) R(s) For the given system above, determine the gain K that will give the system desired response below:...
4 R(s) Y(S) Gp(s) Gc(s) For the given system above, determine the gain K that will give the system desired response below: Settling time of 1.6 seconds . Peak time of 0.8 seconds · The given plant has a transfer function of:Gp-6+8n (s + 6 .(s + 4)) . The controller has a transfer function of: GC = (s+ 11.1812/s
4 R(s) Y(S) Gp(s) Gc(s) For the given system above, determine the gain K that will give the system desired...
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of Gp(s) if it is desired that the uncompensated system has a 10% OS (overshoot) to a step input. (4 points) a 5% overshoot and a peak time Tp 3.1 meets the requirements described in part (b) and achieves zero steady state (b) Compute the desired...
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
