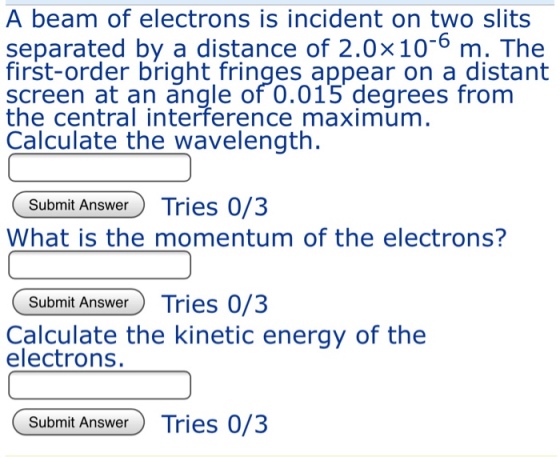

A beam of electrons is incident on two slits separated by a distance of 2.0×10-6 m....

Question

Question

science physics

Answer 1

Answer #1

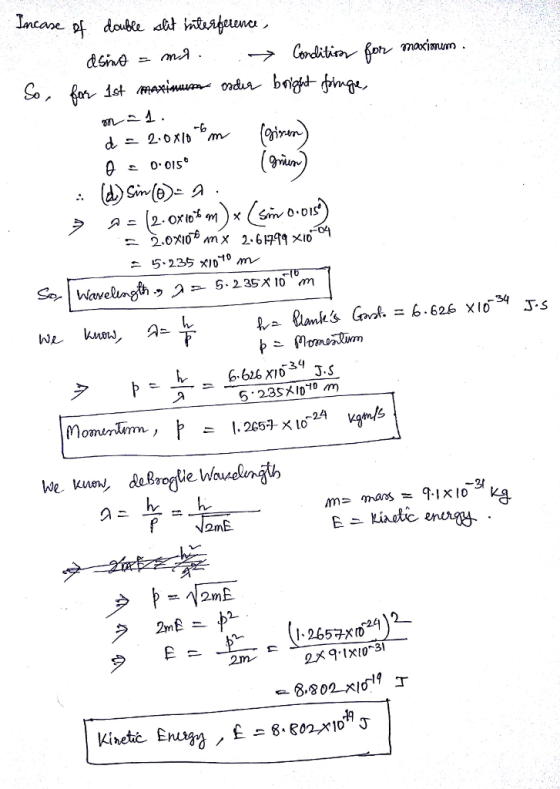

01s SaWare We know . ん-ん I.2657XD 19

Answer 2

Similar Homework Help Questions

A laser beam is incident on two slits with a separation of 0.195 mm, and a...

A laser beam is incident on two slits with a separation of 0.195 mm, and a screen is placed 5.15 m from the slits. If the bright interference fringes on the screen are separated by 1.60 cm, what is the wavelength of the laser light? nm
A laser beam is incident on two slits with a separation of 0.230 mm, and a...

A laser beam is incident on two slits with a separation of 0.230 mm, and a screen is placed 4.90 m from the slits. If the bright interference fringes on the screen are separated by 1.55 cm, what is the wavelength of the laser light? nm
A laser beam is incident on two slits with a separation of 0.180 mm, and a...

A laser beam is incident on two slits with a separation of 0.180 mm, and a screen is placed 4.90 m from the slits. If the bright interference fringes on the screen are separated by 1.57 cm, what is the wavelength of the laser light? nm

A laser beam is incident on two slits with a separation of 0.215 mm, and a...

A laser beam is incident on two slits with a separation of 0.215 mm, and a screen is placed 4.95 m from the slits. If the bright interference fringes on the screen are separated by 1.55 cm, what is the wavelength of the laser light? ___ nm
A laser beam with wavelength 632.8 nm is incident on two narrow slits separated by 0.22...

A laser beam with wavelength 632.8 nm is incident on two narrow slits separated by 0.22 mm. Calculate how far apart the resultant interference fringes on a screen will be if it is located 2.3 m away from the slits?
D24-01: Monochromatic light is incident on a pair of slits that are separated by 0.200 mm....

D24-01: Monochromatic light is incident on a pair of slits that are separated by 0.200 mm. The screen is 2.50 m away from the slits. a) If the distance between the central bright fringe and either of the adjacent bright fringes is 1.67 cm, find the wavelength of the incident light. b) At what angle does the next set of bright fringes appear?

A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How...

A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ...

Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ = 633 nm), producing interference fringes on a distant screen. Find the angle between the centers of the central bright fringe and the next bright fringe. (in degrees)
Consider double slit experiment with two slits are separated by d=0,715 mm

Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...

Part Two thin parallel slits that are 1.24 102mm apart are illuminated by a laser beam...

Part Two thin parallel slits that are 1.24 102mm apart are illuminated by a laser beam of wavelength 582 nm On a very large distant screen, what is the fotal number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both ides of it? Solve this problem without calculating all the anglesl (Hint: What is the largest that sin 8can be? What does this tell you is the largest value of m? Submit Request...
