D24-01: Monochromatic light is incident on a pair of slits that are separated by 0.200 mm....
D24-01: Monochromatic light is incident on a pair of slits that are separated by 0.200 mm. The screen is 2.50 m away from the slits.
a) If the distance between the central bright fringe and either of the adjacent bright fringes is 1.67 cm, find the wavelength of the incident light.
b) At what angle does the next set of bright fringes appear?

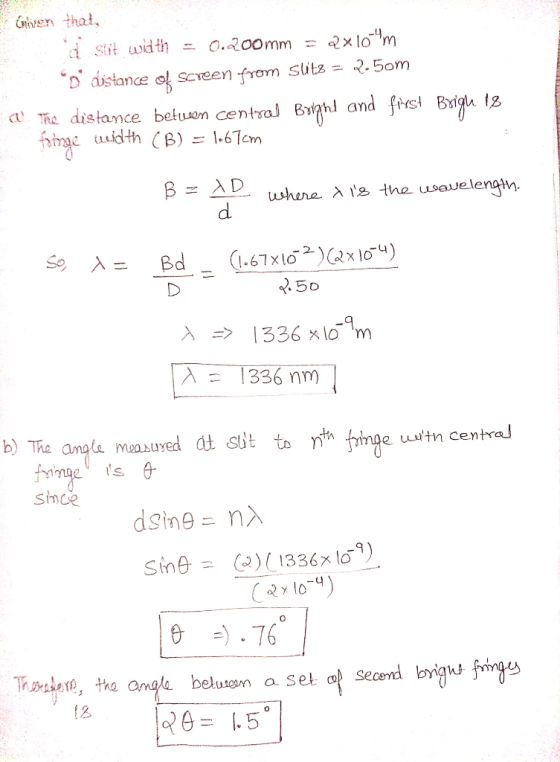

Homework Answers
Add Answer to:
D24-01: Monochromatic light is incident on a pair of slits that
are separated by 0.200 mm....
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An...
1. Light of wavelength 640 nm is incident on two slits separated by 0.880 mm. An interference pattern is observed on a screen 2.20 m away. a) Using the small angle approximation (tan θ sinθ), find the distance between the central maximum and the first bright fringe. b) What percent of error is made in locating of the seventh-order bright fringe if the small angle approximation is used compared to using the exact trigonometric function? c) How does the...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source...
Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source whose wavelength is 615 nm. Adjacent fringes on a screen are separated by 1.4 cm. What is the distance between the screen and the slits?
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
A pair of slits separated by 0.5 mm, are illuminated with monochromatic light of wavelength 587...
A pair of slits separated by 0.5 mm, are illuminated with
monochromatic light of wavelength 587 nm. The light falls on a
screen 2.74 m away producing an interference pattern. A piece of
glass with index of refraction n = 1.76 is placed at one slit.
Placing the piece of glass in front of the slit causes the maxima
to shift 0.14δx, where δx is the distance between adjacent maxima.
What is the thickness of the glass in μm
?
Consider double slit experiment with two slits are separated by d=0,715 mm
Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...
Two narrow slits separated by 0.36 mm are illuminated by monochromatic light of wavelength 487 nm....
Two narrow slits separated by 0.36 mm are illuminated by monochromatic light of wavelength 487 nm. How many bright fringes can be seen on a screen 1.8 cm wide placed 1.9 m in front of the slits?
Two narrow slits separated by 0.52 mm are illuminated by monochromatic light of wavelength 524 nm....
Two narrow slits separated by 0.52 mm are illuminated by monochromatic light of wavelength 524 nm. How many bright fringes can be seen on a screen 1.2 cm wide placed 1.7 m in front of the slits?
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
A pair of slits separated by 0.5 mm, are illuminated with
monochromatic light of wavelength 587 nm. The light falls on a
screen 2.74 m away producing an interference pattern. A piece of
glass with index of refraction n = 1.76 is placed at one slit.
Placing the piece of glass in front of the slit causes the maxima
to shift 0.14δx, where δx is the distance between adjacent maxima.
What is the thickness of the glass in μm
?
Two narrow slits separated by 0.36 mm are illuminated by monochromatic light of wavelength 487 nm. How many bright fringes can be seen on a screen 1.8 cm wide placed 1.9 m in front of the slits?
