Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source...

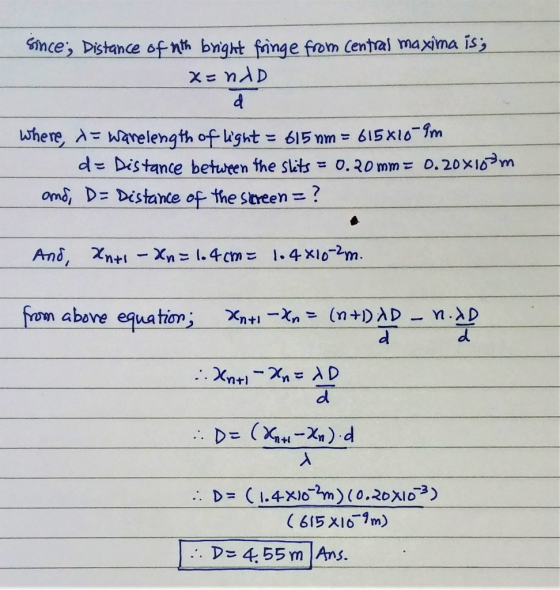

Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source whose wavelength is 615 nm. Adjacent fringes on a screen are separated by 1.4 cm. What is the distance between the screen and the slits?
Homework Answers
Alright Dude, If that worked for you... dont forget to give THUMBS
UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.
