Question

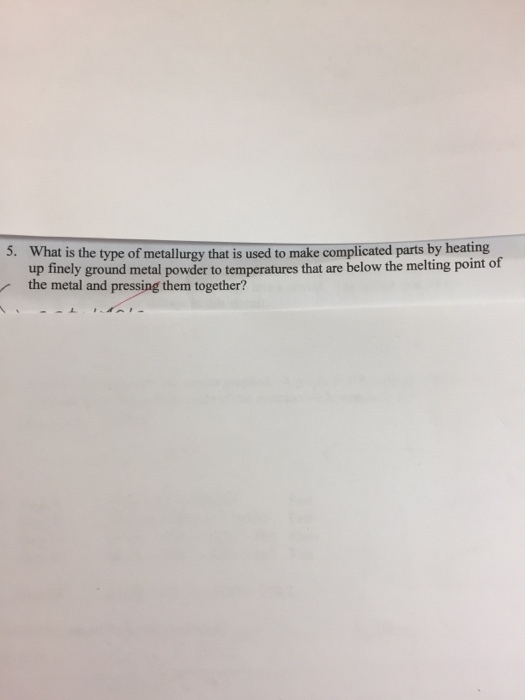

What is the type of metallurgy that is used to make complicated parts by heating up metal powder to temperatures that are below the melting point of the metal and pressing them together?

Answer 1

The type of metallurgy used to make complicated parts by heating up finely ground metal powder to temperatures that are below the melting points of the metals and pressing them together is POWDER METALLURGY .

Powder metallurgy (PM) is a metal working process for forming precision metal components from metal powders. The metal powder is first pressed into product shape at room temperature. This is followed by heating (sintering) that causes the powder particles to fuse together without melting. The parts produced by PM have adequate physical and mechanical properties while completely meeting the functional performance characteristics. The cost of producing a component of given shape and the required dimensional tolerances by PM is generally lower than the cost of casting or making it as a wrought product, because of extremely low scrap and the fewer processing steps. The cost advantage is the main reason for selecting PM as a process of production for high – volume component which needs to be produced exactly to, or close to, final dimensions. Parts can be produced which are impregnated with oil or plastic, or infiltrated with lower melting point metal. They can be electroplated, heat treated, and machined if necessary.The rate of production of parts is quite high, a few hundreds to several thousands per hour. Industrial applications of PM parts are several. These include self – lubricating bearings, porous metal filters and a wide range of engineered shapes, such as gears, cams, brackets, sprockets, etc.

Process:

          In the PM process the following three steps are followed in sequence: mixing (or blending), compacting, and sintering.

          Mixing: A homogeneous mixture of elemental metal powders or alloy powders is prepared. Depending upon the need, powders of other alloys or lubricants may be added.

          Compacting: A controlled amount of the mixed powder is introduced into a precision die and then it is pressed or compacted at a pressure in the range 100 MPa to 1000 MPa. The compacting pressure required depends on the characteristics and shape of the particles, the method of mixing, and on the lubricant used. This is generally done at room temperature. In doing so, the loose powder is consolidated and densified into a shaped model. The model is generally called “green compact.” As is comes out of the die, the compact has the size and shape of the finished product. The strength of the compact is just sufficient for in – process handling and transportation to the sintering furnace.

Sintering: During this step, the green compact is heated in a protective atmosphere furnace to a suitable temperature, which is below the melting point of the metal. Typical sintering atmospheres are endothermic gas, exothermic gas, dissociated ammonia, hydrogen, and nitrogen. Sintering temperature varies from metal to metal; typically these are within 70 to 90% of the melting point of the metal or alloy. intering is a solid state process which is responsible for producing physical and mechanical properties in the PM part by developing metallurgical bond among the powder particles. It also serves to remove the lubricant from the powder, prevents oxidation, and controls carbon content in the part. The structure and porosity obtained in a sintered compact depend on the temperature, time, and processing details. It is not possible to completely eliminate the porosity because voids cannot be completely closed by compaction and because gases evolve during sintering. Porosity is an important characteristic for making PM bearings and filters.
