Homework Answers
Add Answer to:

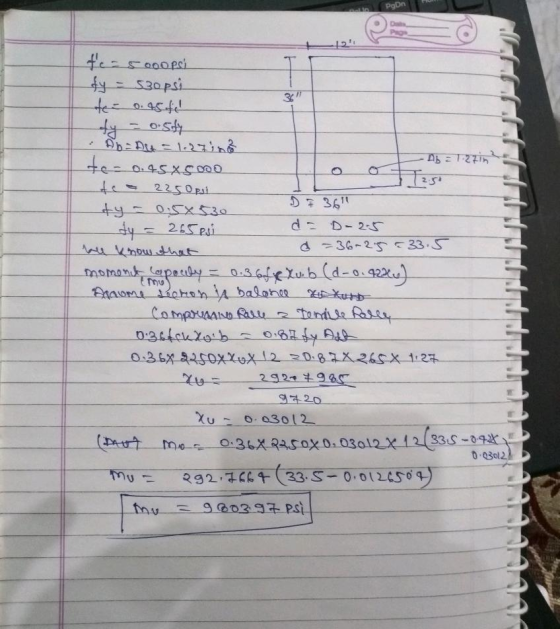

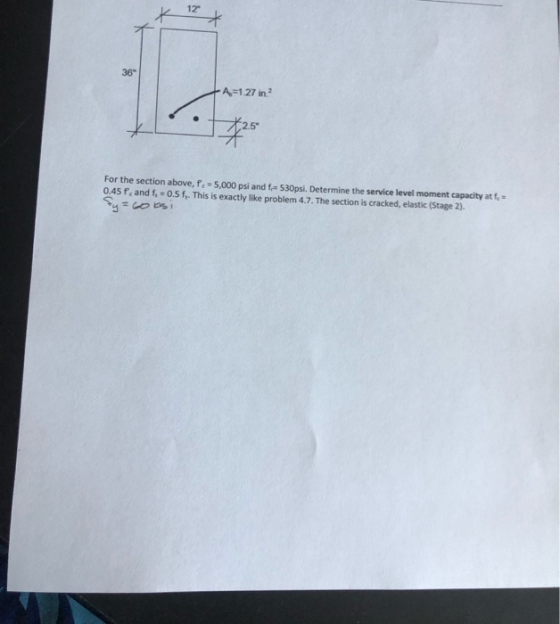

12 36 A-1.27 in For the section above, f.-5,000 psi and f 530psi. Determine the service...
2.5" 2#7 fc= 4,000 psi fy= 60,000 psi n 8 5#11 3" 18" For service level...
2.5" 2#7 fc= 4,000 psi fy= 60,000 psi n 8 5#11 3" 18" For service level moment M= 200 ft-k, use the procedures from Chapter 2 to find (20 pts) the following using linear-elastic analysis procedures and using transformed section a. properties: compressive stress in the concrete (fc) tension stress in the bottom steel (fs) compressive stress in the top steel (f's) What is the applicable moment of inertia of the concrete section if the (10 pts) service level moment...
5. For the beam and properties shown: Ec 4,030 ksi f=6ksi fy=60 ksi h-12" fr=530 psi...
5. For the beam and properties shown: Ec 4,030 ksi f=6ksi fy=60 ksi h-12" fr=530 psi E,-29,000 ksi 4-# 11 y = 150 pcf 2.5" b-18" Find: .Cracking moment based on gross section properties (10 pts) a b. Service moment corresponding to 0.45 fe, 0.4f, (10 pts) Nominal Flexural Strength (use Whitney Stress block) (10 pts) c. d. Does this beam satisfy ACI 9.6.1? (10 pts) e. If B 0.75, is the beam closest to a tension controlled or compression...
1. For the cross section and loading shown below. [50 points] 10" fc-5500 psi 60,000 psi...
1. For the cross section and loading shown below. [50 points] 10" fc-5500 psi 60,000 psi Concrete unit weight 150 pcf 18.5, P,-15 kips w 1,500 lb/ft 32" 25" 37 (12) #8 15" a. Calculate the gross moment of inertia, Ig, and the location of the centroid, ybar (from the bottom) Neglect the steel when calculating Ig. [10 points] b. What is the cracking moment, Mcr? [5 points] c. Calculate the cracked transformed moment of inertia, Icr. [10 points] d....
Problem 2 Determine the design moment capacity (фМ.) for the beam cross section below 20° fy-80,000...
Problem 2 Determine the design moment capacity (фМ.) for the beam cross section below 20° fy-80,000 psi f 6,000 psi 24" 27 6 # 11 bars 3"
Reinforced concrete 2 For the section in Problem i) determine the area of steel such that...
Reinforced concrete
2 For the section in Problem i) determine the area of steel such that the depth of the equivalent rectangular concrete stress distribution (block) is 4", and ii) determine the nominal moment strength and capacity if the steel area is 25% higher than balanced steel condition. Assume d 23.5", f.-3,000 psi, and f 60,000 psi. Hole 5-88 8 16
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.)...
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.) Note: Modify the total depth of the beam from 24" to 26" and the depth of the steel rebars from 21" to 23". Transformed Area Method (Concrete Cracked- Elastic Stresses Stage) Problem 2) Problem 2.13 (page 56, McCormac and Brown, 8th Ed.) Note: Make the following changes: Change fe to 5 ksi use the values and dimensions shown in the figure below 1) 2)...
Problem 2. A steel beam has the dimensions shown, and yield stress Fy = 36 ksi....
Problem 2. A steel beam has the dimensions shown, and yield stress Fy = 36 ksi. 12" 1.5" a. Find the elastic properties A, yes (from the top), Ixx, lwy, Stop, Shot. b. Find the moment, M., (in inch-kips) needed to just cause first yield in the section. Where does that yielding 21.5" happen? c. Find the plastic properties Ycg and Z. d. What is the full plastic moment capacity, M? e. How would the first yield moment, M, and...
Please show all the steps and write neatly. Do not skip any steps and write out...
Please show all the steps and write neatly. Do not skip any
steps and write out any formula u used please. write neatly as
well. Thank you
Problem 2: (35 Points Design the reinforced concrete (normal weight concrete, NWC) beam AB shown in Fig. 2. The beam shown in Fig. 2 is the same beam as shown in Fig. 1. The beam is subjected to an uniformly distributed loading which can be calculated from Fig. (based on tributary area). In...
6) The YourMoney Bank claims that the mean waiting time of customers for service at the...
6) The YourMoney Bank claims that the mean waiting time of customers for service at the drive through window is 3 minutes. a) State the Hypothesis to show the mean waiting time for service different than 3 minutes. b) Choose a level of a. Use a= 0.05 for this problem. c) To test the hypothesis, the quality-assurance department took a sample of 50 customers and records their waiting time in minutes. The data appear in the YourMoney worksheet of the...
PROBLEM Authorities of the Atherton Tablelands in North Queensland proposes a glass covered 3m long walkway scenic lookout to cater for tourists. The glass panels are to be attached to an aluminium f...
PROBLEM Authorities of the Atherton Tablelands in North Queensland proposes a glass covered 3m long walkway scenic lookout to cater for tourists. The glass panels are to be attached to an aluminium frame attached to a reinforced concrete beam. You are required to design the reinforced concrete beam Gla Safety post up Thick glas SIDE VIEW FRONT VIEW Figure 1. Schematic View of the Walkway Structure To hold the aluminium frame/glass panels and to allow the tourists to walk in...
2.5" 2#7 fc= 4,000 psi fy= 60,000 psi n 8 5#11 3" 18" For service level moment M= 200 ft-k, use the procedures from Chapter 2 to find (20 pts) the following using linear-elastic analysis procedures and using transformed section a. properties: compressive stress in the concrete (fc) tension stress in the bottom steel (fs) compressive stress in the top steel (f's) What is the applicable moment of inertia of the concrete section if the (10 pts) service level moment...
5. For the beam and properties shown: Ec 4,030 ksi f=6ksi fy=60 ksi h-12" fr=530 psi E,-29,000 ksi 4-# 11 y = 150 pcf 2.5" b-18" Find: .Cracking moment based on gross section properties (10 pts) a b. Service moment corresponding to 0.45 fe, 0.4f, (10 pts) Nominal Flexural Strength (use Whitney Stress block) (10 pts) c. d. Does this beam satisfy ACI 9.6.1? (10 pts) e. If B 0.75, is the beam closest to a tension controlled or compression...
1. For the cross section and loading shown below. [50 points] 10" fc-5500 psi 60,000 psi Concrete unit weight 150 pcf 18.5, P,-15 kips w 1,500 lb/ft 32" 25" 37 (12) #8 15" a. Calculate the gross moment of inertia, Ig, and the location of the centroid, ybar (from the bottom) Neglect the steel when calculating Ig. [10 points] b. What is the cracking moment, Mcr? [5 points] c. Calculate the cracked transformed moment of inertia, Icr. [10 points] d....
Problem 2 Determine the design moment capacity (фМ.) for the beam cross section below 20° fy-80,000 psi f 6,000 psi 24" 27 6 # 11 bars 3"
Reinforced concrete
2 For the section in Problem i) determine the area of steel such that the depth of the equivalent rectangular concrete stress distribution (block) is 4", and ii) determine the nominal moment strength and capacity if the steel area is 25% higher than balanced steel condition. Assume d 23.5", f.-3,000 psi, and f 60,000 psi. Hole 5-88 8 16
Cracking Moment (Uncracked Concrete Stage) Problem 1) Problem 2.6 (page 55, McCormac and Brown, gth Ed.) Note: Modify the total depth of the beam from 24" to 26" and the depth of the steel rebars from 21" to 23". Transformed Area Method (Concrete Cracked- Elastic Stresses Stage) Problem 2) Problem 2.13 (page 56, McCormac and Brown, 8th Ed.) Note: Make the following changes: Change fe to 5 ksi use the values and dimensions shown in the figure below 1) 2)...
Problem 2. A steel beam has the dimensions shown, and yield stress Fy = 36 ksi. 12" 1.5" a. Find the elastic properties A, yes (from the top), Ixx, lwy, Stop, Shot. b. Find the moment, M., (in inch-kips) needed to just cause first yield in the section. Where does that yielding 21.5" happen? c. Find the plastic properties Ycg and Z. d. What is the full plastic moment capacity, M? e. How would the first yield moment, M, and...
Please show all the steps and write neatly. Do not skip any
steps and write out any formula u used please. write neatly as
well. Thank you
Problem 2: (35 Points Design the reinforced concrete (normal weight concrete, NWC) beam AB shown in Fig. 2. The beam shown in Fig. 2 is the same beam as shown in Fig. 1. The beam is subjected to an uniformly distributed loading which can be calculated from Fig. (based on tributary area). In...
PROBLEM Authorities of the Atherton Tablelands in North Queensland proposes a glass covered 3m long walkway scenic lookout to cater for tourists. The glass panels are to be attached to an aluminium frame attached to a reinforced concrete beam. You are required to design the reinforced concrete beam Gla Safety post up Thick glas SIDE VIEW FRONT VIEW Figure 1. Schematic View of the Walkway Structure To hold the aluminium frame/glass panels and to allow the tourists to walk in...
