A uniform board with a length of 12 m and weighing 700 N is carried by...

Question

Question

A uniform board with a length of 12 m and weighing 700 N is carried by two people. The first person is at one end of the boar

science physics

Answer 1

Answer #1

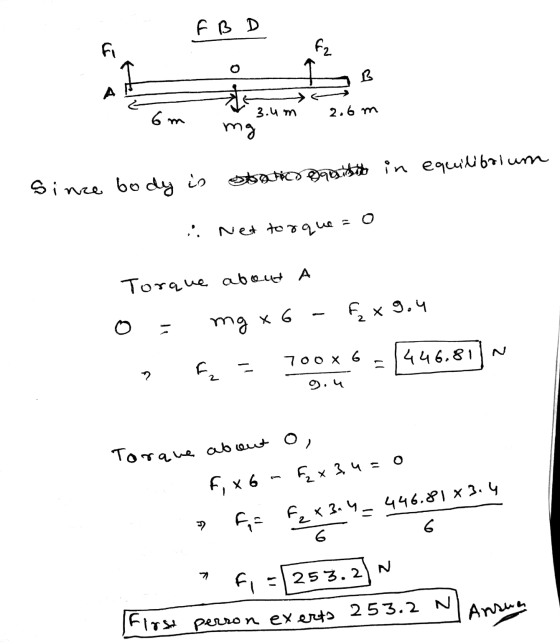

Ев Helv 3.4m 2.6 m mg stored and in equilibrium 1. Since body is .. Net torque =0 A Torque about o= mg x 6 - f x 9.4 F = 700x ..........

Answer 2
