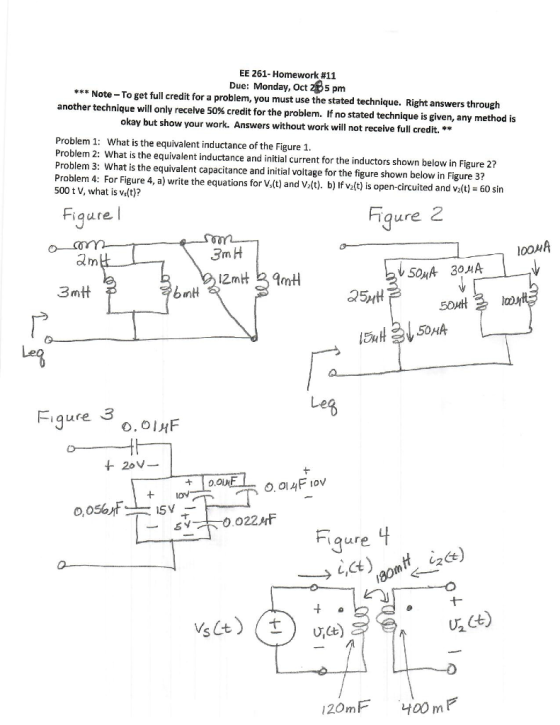

EE 261- Homework #11 Due: Monday, Oct 205 pm *** Note - To get full credit for a problem, you must use the stated technique. Right answers through another technique will only receive 50% credit for the problem. If no stated technique is given, any method is okay but show your work. Answers without work will not receive full credit. ** Problem 1: What is the equivalent inductance of the Figure 1. Problem 2: What is the equivalent inductance and initial current for the inductors shown below in Figure 2? Problem 3: What is the equivalent capacitance and initial voltage for the figure shown below in Figure 3? Problem 4: For Figure 4, a) write the equations for V.(t) and V.(t). b) If vz(t) is open-circuited and vz(t) = 60 sin 500 t V, what is vs(t)? Figurel so amt to Зm H b. bizmit 39mH Figure 2 100MA bu souA 30MA I 2544 - 5014 3 loont 154HZ 50A L 3 mtt H Leg Figure 3 0.0145 + 20V - + OF + 10 0,05637+ 156+ H 0.04F10V - 510.0224 Figure 4 1,Ct) comit iztt) 45 US(+) VsCt) 120mF 400 mF
