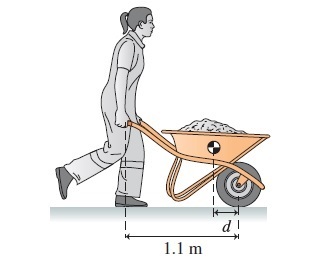

A woman is pushing a load in a wheelbarrow, as in
(Figure 1). The combined mass of the wheelbarrow and the load is 130kg, with a center of gravity at d = 0.35m behind the axle. The woman supports the wheelbarrow at the handles, 1.1 m behind the axle..
Figure
1 of 1
Part A
What is the force required to support the wheelbarrow?
Part B
What fraction of the weight of the wheelbarrow and the load does this force represent?

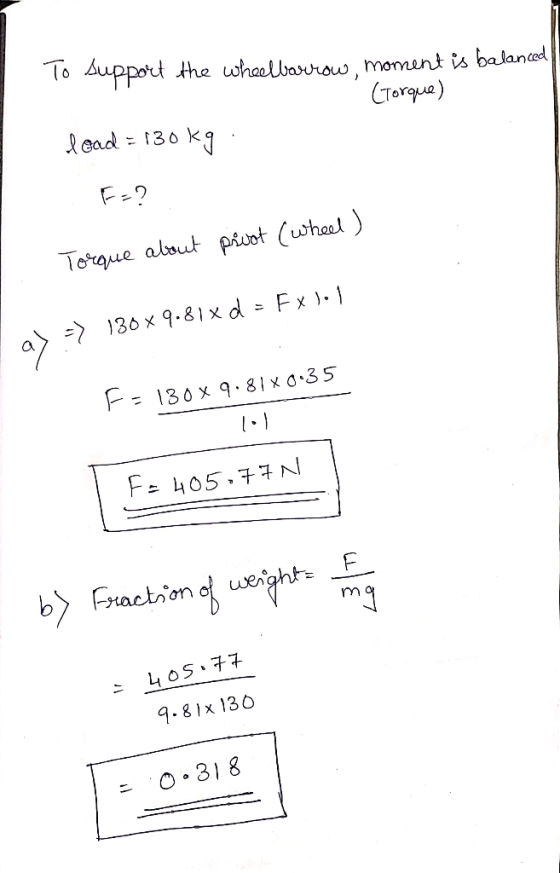

Homework Answers
