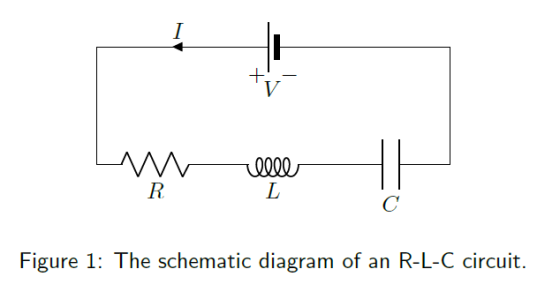

A series resistor-inductor-capacitor circuit (see Fig. 1) can be described as a linear system, in which, for constant voltageConsider the case that the circuit is equipped with a multimeter that enables measurement of current. Using the template file10000 Figure 1: The schematic diagram of an R-L-C circuit.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Solution:

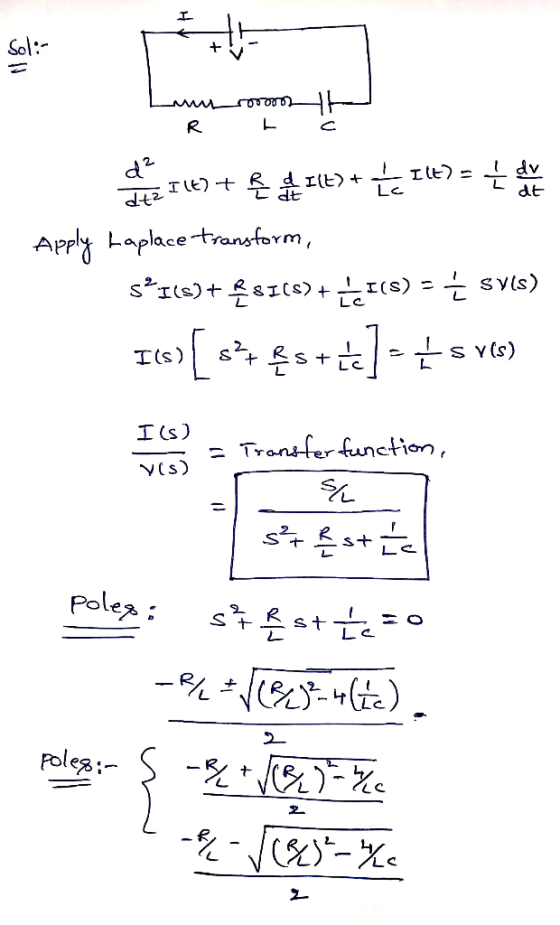

d2 Sol: A _ M_ I_F RL DEZIL? + ICE+ Ilt) = { dx Apply Laplace transform, s’I(s)+281(s) + I(8) = { svis) IC) [ s>t&s+ ta] = {
