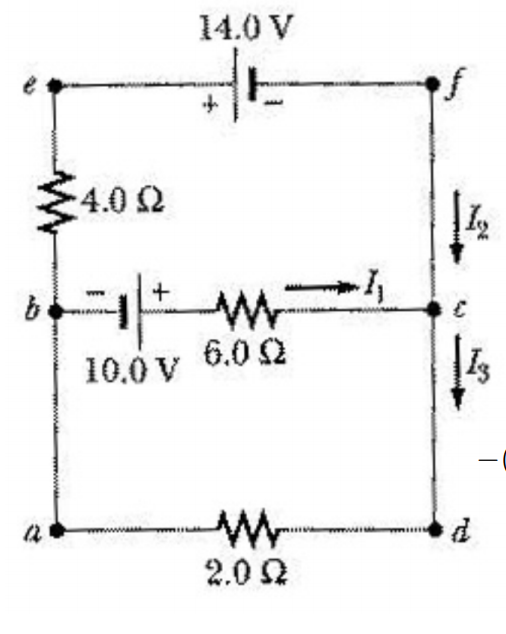

what is I1, I2, and I3? 14.0 V 4.0 + 10.0 v 6.0 w 2.0

Question

Question

14.0 V 4.0 + 10.0 v 6.0 w 2.0

what is I1, I2, and I3?

science physics

Answer 1

Answer #1

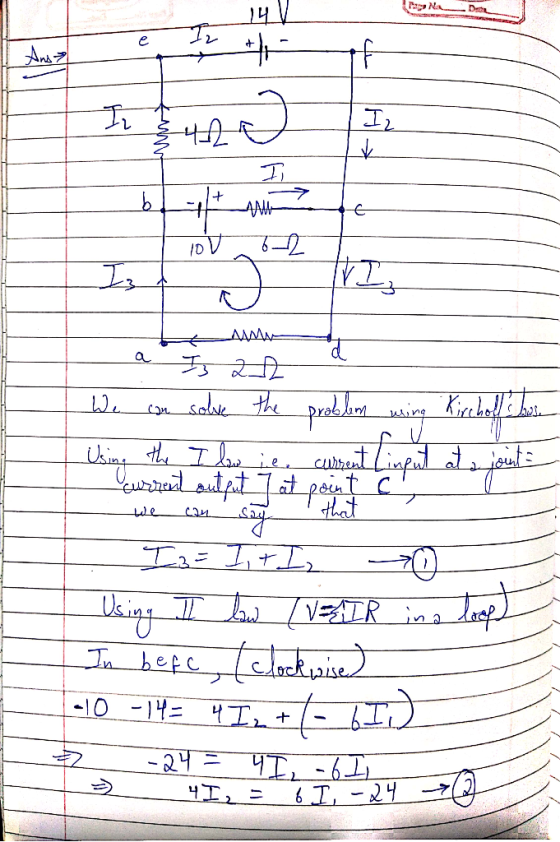

P Na De Ans D AAMA a e eurtrandautait Tatpant C Heat 2. Tabedseleko 6 I+ 2I 6 I,10-22 1 6 3 _ 3 3 3 10-2315-3-34 6_Is 3 3 32- LiUking D

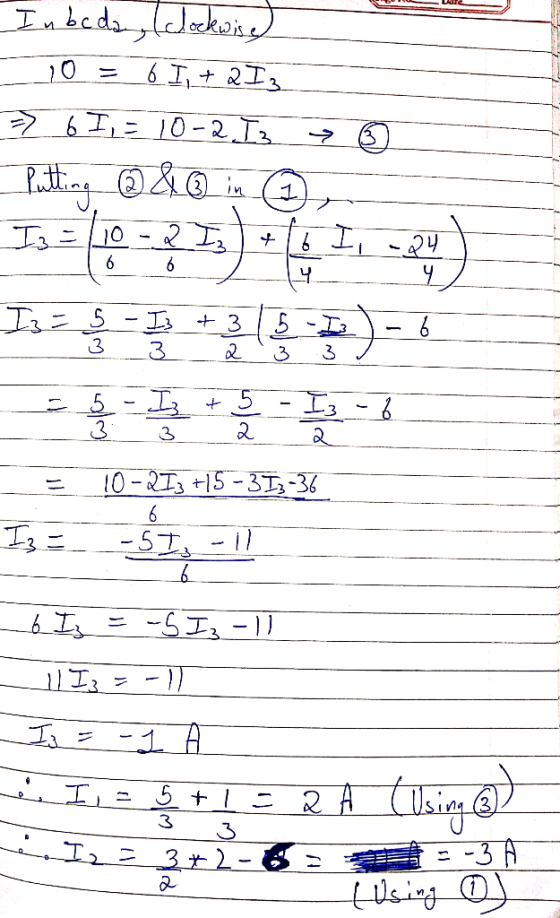

# the negative current values show that the actual current direction is opposite to that assumed in our diagram!

Answer 2

Similar Homework Help Questions

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12...

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 2.0 Ω. I1 = _________A I2 = _________A I3 = _________A (b) What is the terminal voltage of the 6.0 V battery?
Determine the currents I1, I2, and I3 in the figure above

(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 1.0 Ω.I1 = ____ AI2 = ____ AI3 = ____ A(b) What is the terminal voltage of the 6.0 V battery?______ V
Find i1, i2, i3, i4 and i5 (answer i1 = 0.5A, i2 = 5.308 A, i3...

Find i1, i2, i3, i4 and i5 (answer i1 = 0.5A, i2 = 5.308 A, i3 = 0.308 A, i4 = -2.692 A, i5 = 2.808 A) 20 V 10 V ОЗА

Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3...

Looking for I1 , I2 , I3 equation to find I1 is I1= I2 + I3 21= 14.5I1 + 12.5I3 12= -11I2- 11.5I3
Calculate each of the unknown currents in the circuit. Ans: I1=2.0A, I2=-3.0A, I3=-1.0A. s desconocidas en...

Calculate each of the unknown currents in the circuit. Ans: I1=2.0A, I2=-3.0A, I3=-1.0A. s desconocidas en el circuit 4.0 Ω 10,0 V 6,0Ω 2.0 Ω
Part 1. Determine the currents I1, I2, and I3 in the figure. Assumethe internal resistance of...

Part 1. Determine the currents I1, I2, and I3 in the figure. Assumethe internal resistance of each battery is r = 1.4 Ω. Part 2. What is the terminal voltage of the 6.0 V battery?
