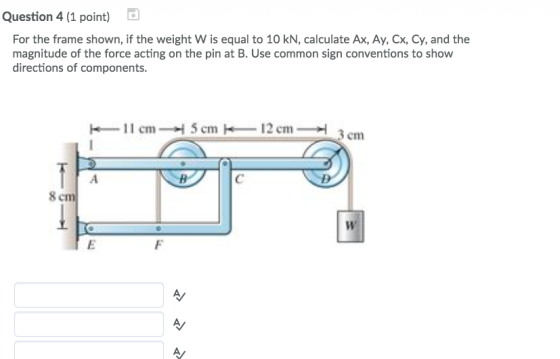

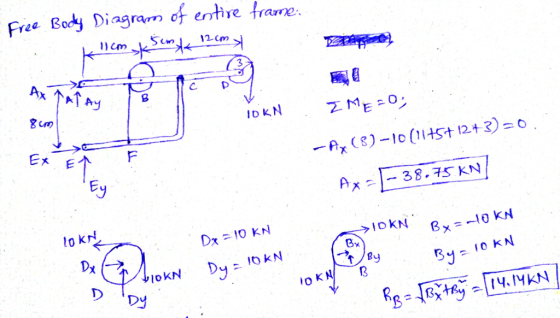

Question 4 (1 point) For the frame shown, if the weight w is equal to 10...
Find all the reaction forces Ax, Ay,Dx,Dy Problem 1 The frame shown in the figure has...
Find all the reaction forces Ax,
Ay,Dx,Dy
Problem 1 The frame shown in the figure has two pin supports at points A and D. Two point loads P1 = P2 = 4 kN and a uniformly distributed load W = 10 kN/m are applied to the frame as shown. The horizontal reaction at support A is -1.037 kN. Note: A positive value here indicates a reaction force pointing to the right, and a negative value one pointing to the left....
Find Ax, Ay, Cx, Cy Revie Consider the beam shown in (Figure 1). Suppose that w...
Find Ax, Ay, Cx, Cy
Revie Consider the beam shown in (Figure 1). Suppose that w 20 kN/m. 1 of 1 Figure 60° 6 m
Consider the frame shown in (Figure 1). Suppose that F1 = 4 kN . Determine the...
Consider the frame shown in (Figure 1). Suppose that
F1 = 4 kN . Determine the magnitude of the force in
member FD.
Determine the magnitude of the force in member
DB.
Determine the x and y components of reaction
the pin C exerts on member ABC
using scalar notation.
Determine the x and y components of reaction
the pin C exerts on member EDC
using scalar notation.
2 m 1 m
Fx Fx Fy W EX OD Slot Ах Вх The given frame is subject to a...
Fx Fx Fy W EX OD Slot Ах Вх The given frame is subject to a distributed load w = 55 kN/m and a horizontal force P = 20 kN. The free body diagrams for members AF and BF are also given. Assume L = 12 m, a = 10 m, b = 10 m, c = 14 m, and d = 2 m for your calculations. Determine reactions at supports A and B and the forces at pin F....
Prob. 2. The 80 kN weight is supported by the frame with members as shown in...
Prob. 2. The 80 kN weight is supported by the frame with members as shown in figure. The radius of the pulley is 3 m. Determine the reactions at hinge supports Cand E. Also, determine the horizontal and vertical components of the force exerted by pin at B. 3 m 9 m 80 KN 5 m— 5 m
A uniform, 24.5 kg beam of length 2.90 m is hanging horizontally as shown in the...
A uniform, 24.5 kg beam of length 2.90 m is hanging horizontally
as shown in the diagram below. It is pinned to a vertical wall at
point B and supported by a uniform 15.9 kg diagonal brace that is
pinned at point C on the beam and at point A on the
wall. [Use g = 9.80 m/s2.]
There is a load W, with a weight of 211 N, hanging at the end of
the horizontal beam. The distance BC is...
Please Solve Ay and Cy Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12...
Please Solve Ay and Cy
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Part 1 For the simply supported beam subfected to the loading shown, derive equations for the...
Part 1 For the simply supported beam subfected to the loading shown, derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) Let a-13.0 ft, b-5.0 ft, c-3.0 ft, w -9 kips/tt and M-160 kip-ft. Construct the shear-force and bending-murnent ??durams on paper and use?ie 'esults to answer the uuestions in the subsequent parts of this GO exertise. Calculate the reactian farces Ay and Cy acting...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
Analyze the nonsway frame by the Slope-Deflection Method. •Evaluate all the reactions •Consider Special-Case Spans and...
Analyze the nonsway frame by the Slope-Deflection Method.
•Evaluate all the reactions
•Consider Special-Case Spans and Statically Determinate (CE 304)
Spans where appropriate
Slope Deflection Method - Frames Problem 1. Given: 8 k 2 k/ft 15 ft E constant Support A is a pin Support C is fixed Support D is a roller 12 ft (A) HAND CALCULATIONS Analyze the nonsway frame by the Slope-Deflection Method. Evaluate all the reactions e Consider Special-Case Spans and Statically Determinate (CE 304) Spans...
Find all the reaction forces Ax,
Ay,Dx,Dy
Problem 1 The frame shown in the figure has two pin supports at points A and D. Two point loads P1 = P2 = 4 kN and a uniformly distributed load W = 10 kN/m are applied to the frame as shown. The horizontal reaction at support A is -1.037 kN. Note: A positive value here indicates a reaction force pointing to the right, and a negative value one pointing to the left....
Find Ax, Ay, Cx, Cy
Revie Consider the beam shown in (Figure 1). Suppose that w 20 kN/m. 1 of 1 Figure 60° 6 m
Consider the frame shown in (Figure 1). Suppose that
F1 = 4 kN . Determine the magnitude of the force in
member FD.
Determine the magnitude of the force in member
DB.
Determine the x and y components of reaction
the pin C exerts on member ABC
using scalar notation.
Determine the x and y components of reaction
the pin C exerts on member EDC
using scalar notation.
2 m 1 m
Fx Fx Fy W EX OD Slot Ах Вх The given frame is subject to a distributed load w = 55 kN/m and a horizontal force P = 20 kN. The free body diagrams for members AF and BF are also given. Assume L = 12 m, a = 10 m, b = 10 m, c = 14 m, and d = 2 m for your calculations. Determine reactions at supports A and B and the forces at pin F....
Prob. 2. The 80 kN weight is supported by the frame with members as shown in figure. The radius of the pulley is 3 m. Determine the reactions at hinge supports Cand E. Also, determine the horizontal and vertical components of the force exerted by pin at B. 3 m 9 m 80 KN 5 m— 5 m
A uniform, 24.5 kg beam of length 2.90 m is hanging horizontally
as shown in the diagram below. It is pinned to a vertical wall at
point B and supported by a uniform 15.9 kg diagonal brace that is
pinned at point C on the beam and at point A on the
wall. [Use g = 9.80 m/s2.]
There is a load W, with a weight of 211 N, hanging at the end of
the horizontal beam. The distance BC is...
Please Solve Ay and Cy
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Part 1 For the simply supported beam subfected to the loading shown, derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) Let a-13.0 ft, b-5.0 ft, c-3.0 ft, w -9 kips/tt and M-160 kip-ft. Construct the shear-force and bending-murnent ??durams on paper and use?ie 'esults to answer the uuestions in the subsequent parts of this GO exertise. Calculate the reactian farces Ay and Cy acting...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
Analyze the nonsway frame by the Slope-Deflection Method.
•Evaluate all the reactions
•Consider Special-Case Spans and Statically Determinate (CE 304)
Spans where appropriate
Slope Deflection Method - Frames Problem 1. Given: 8 k 2 k/ft 15 ft E constant Support A is a pin Support C is fixed Support D is a roller 12 ft (A) HAND CALCULATIONS Analyze the nonsway frame by the Slope-Deflection Method. Evaluate all the reactions e Consider Special-Case Spans and Statically Determinate (CE 304) Spans...
