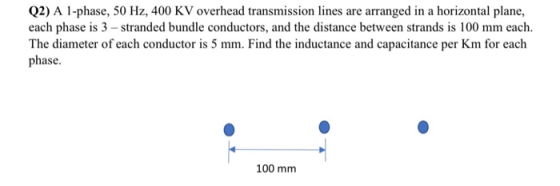

Q2) A 1-phase, 50 Hz, 400 KV overhead transmission lines are arranged in a horizontal plane, each phase is 3 - stranded bundl
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

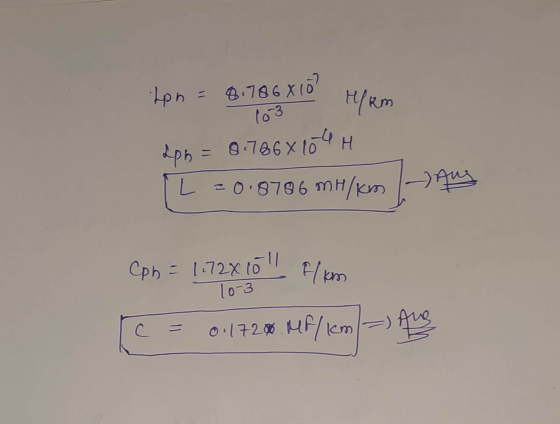

Lpn = 8.78681 H/km 2ph = 0.786x104 L=0.8786 MH/km H Aug f/km Cph = 117281011 10-3 0.1720 Mf/km =) Aug 0

answered by: ANURANJAN SARSAM
0 0
Add a comment
Answer #2

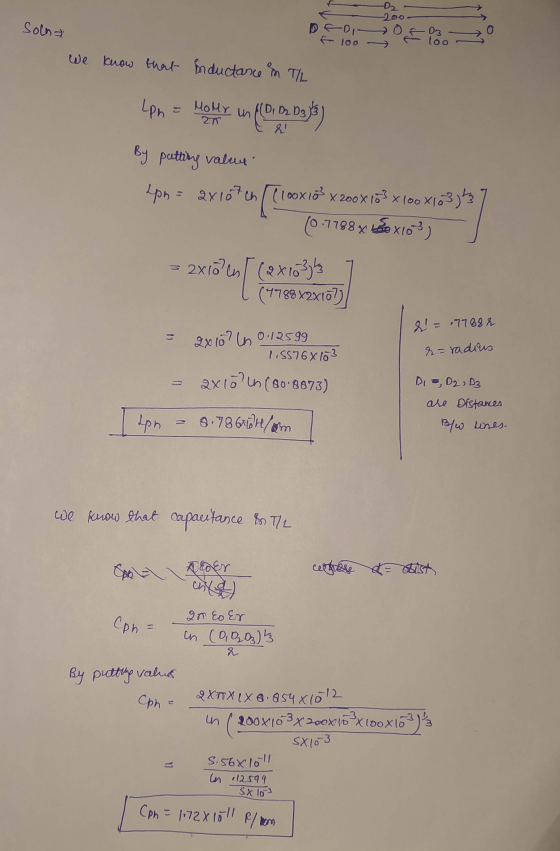

Lpn = 8.78681 H/km 2ph = 0.786x104 L=0.8786 MH/km H Aug f/km Cph = 117281011 10-3 0.1720 Mf/km =) Aug 0proper stepwise solution is given above .

Kindly ? to support teachers.

0 0
Add a comment
Know the answer?
Add Answer to:
Q2) A 1-phase, 50 Hz, 400 KV overhead transmission lines are arranged in a horizontal plane,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 50 Hz, 3 phase, 3 wire overhead line has solid cylindrical conductors arranged in the...

    A 50 Hz, 3 phase, 3 wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 1.22 m conductor spacing. Conductor diameter is 12.7 mm. Calculate the positive sequence inductance and reactance. (1.102 mH/km, 0.346 12/km)

  • A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the fo...

    Please show all the steps A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 4 ft conductor spacing. Conductor diameter is 0.5 in a) Calculate the positive-sequence inductance in H/m and the positive-sequence inductive reactance in 2/km. b) Calculate the capacitance-to-neutral in F/m and the admittance-to-neutral in S/km for the three-phase line stated above. Neglect the effect of the earth plane. c) Rework b) if the phase spacing is i)...

  • A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter...

    A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter of each conductor in a bundle is 10 mm and the conductors are placed at the vertices of an equilateral triangle with a side length of 20 cm. The three phase bundles are horizontally placed with a distance between phase A and phase B as 1.2 m and phase B and phase C as 1m. The three phase lines are completely transposed. Calculate the...

  • a) A 3 phase transmission line is arranged in a horizontal plane with a spacing of...

    a) A 3 phase transmission line is arranged in a horizontal plane with a spacing of 2.5m. Diameter of conductor is 2 cm. Find the Inductance/phase/m. b) If the same transmission line is rearranged at the edges of an equilateral triangle so that the inductance remains the same, find the sides of the equilateral triangle. c) If the length of transmission line for the above equilateral triangle arrangement is 120km, Voltage is 33kV at 50HZ. Find the charging current per...

  • THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER...

    THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER HEAD TRANSMISSION LINES KINDLY DO ALL QUESTIONS TOMMOROW IS MY FINAL PLEASE DO YOUR BEST 4. A 20 km single phase line has two parallel conductors separated by 1·5 metres. The diameter of each conductor is 0·823 cm. If the conductor has a resistance of 0·311 Ω/km, find the loop impedance of this line at 50 Hz. [19·86 Ω ] 5. The three conductors...

  • A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an...

    A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 1 m conductor spacing. Conductor diameter is 1.0 cm. Calculate the line inductance in H/m per conductor and the line inductive reactance in Ω/km per conductor.

  • 4.1 A 60-Hz single-phase, two-wire overhead line has solid cylindrical copper conductors with 1.5 cm diameter....

    4.1 A 60-Hz single-phase, two-wire overhead line has solid cylindrical copper conductors with 1.5 cm diameter. The conductors are arranged in a horizontal configuration with 0.5 m spacing. Calculate in mH/km (a) The inductance of each conductor due to internal flux linkages only; (b) The inductance of each conductor due to both internal and external flux linkages; (c) The total inductance of the line. (40 Points) F.A. (a) Lint = 0.05 mh per conductor km (b) Ly = Ly per...

  • A long, lossless, three-phase transmission line is operating with 60 Hz with a nominal voltage of 400 kV. The distance between sending and receiving sides of the line is 350 km and the line’s series i...

    A long, lossless, three-phase transmission line is operating with 60 Hz with a nominal voltage of 400 kV. The distance between sending and receiving sides of the line is 350 km and the line’s series inductance and shunt capacitance per length per phase are 0.92 mH/km and 0.016µF/km, respectively.  If the line delivers 667.2461 MW at 400 kV with unity power factor at its receiving side, what would be the line-line voltage magnitude in the middle of the line?

  • Q.1 (8 marks) A two-wire, single-phase, overhead line has solid cylindrical copper conductors with diameter 1.4...

    Q.1 (8 marks) A two-wire, single-phase, overhead line has solid cylindrical copper conductors with diameter 1.4 cm. The conductors are arranged in a horizontal configuration with 0.8 m spacing between phases The ac frequency is 60 Hz. Calculate: Inductance of each conductor due to internal flux linkages only, expressed in [mH/km Inductance of each conductor due to internal and external flux linkages, expressed in [mH/km] The loop inductance and loop inductive reactance of the line, respectively expressed in mH/km] and...

  • Calculate the inductive reactance in ohms of a single phase, 8 kV, 50 hz, 50 km...

    Calculate the inductive reactance in ohms of a single phase, 8 kV, 50 hz, 50 km long transmission line consisting of two aluminium conductors with a 3 cm diameter by a spacing of 2 meters. Then, calculate the shunt admittance of the above line in siemens per km.
