THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER...
THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER HEAD TRANSMISSION LINES KINDLY DO ALL QUESTIONS TOMMOROW IS MY FINAL PLEASE DO YOUR BEST
4. A 20 km single phase line has two parallel conductors separated by 1·5 metres. The diameter of each conductor is 0·823 cm. If the conductor has a resistance of 0·311 Ω/km, find the loop impedance of this line at 50 Hz. [19·86 Ω ]
5. The three conductors of a 3-phase line are arranged at the corners of a triangle of sides 4, 5 and 6 metres. Calculate inductance per km of the each conductor when conductors are regularly transposed. The diameter of each line conductor is 2 cm. [1·285 mH]
6. The three conductors of 3-phase overhead line are arranged in a horizontal plane with a spacing of 4 m between adjacent conductors. The diameter of each conductor is 2 cm. Determine the inductance per km per phase of the line assuming that the lines are transposed. [1·3 mH]
Homework Answers
As per HomeworkLib policy we need to answer only the first question if multiple questions are posted. Please upload remaining questions separately so that someone can answer. Please find below for the explanation of first question. Thanks in advance for understanding...
Add Answer to:
THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS
AND THE CHAPTER IS DESIGNING OF OVER...

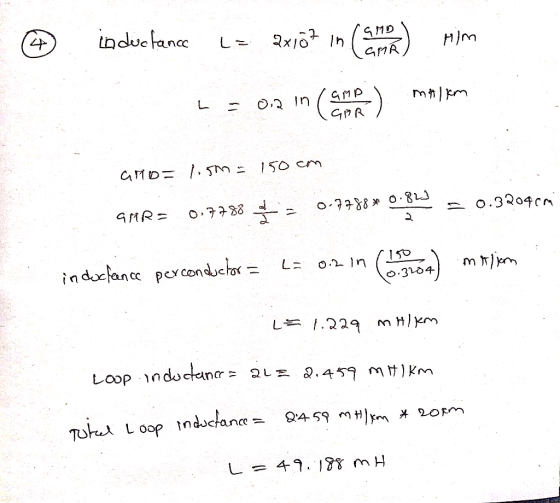

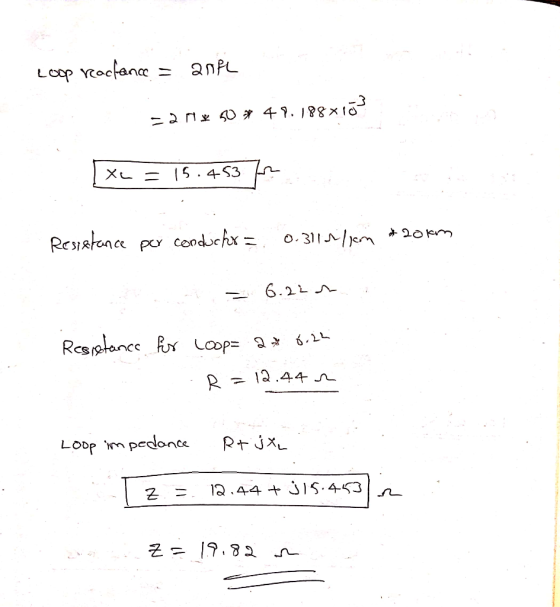

Task 1 Criteria 1.1 A 20 km single phase line has two parallel conductors separated by...
Task 1 Criteria 1.1 A 20 km single phase line has two parallel conductors separated by 1.5 metres. The diameter of each conductor is 0-823 cm. If the conductor has a resistance of 0 311 Q/km, find the loop impedance of this line at 50 Hz. 1.
4.1 A 60-Hz single-phase, two-wire overhead line has solid cylindrical copper conductors with 1.5 cm diameter....
4.1 A 60-Hz single-phase, two-wire overhead line has solid cylindrical copper conductors with 1.5 cm diameter. The conductors are arranged in a horizontal configuration with 0.5 m spacing. Calculate in mH/km (a) The inductance of each conductor due to internal flux linkages only; (b) The inductance of each conductor due to both internal and external flux linkages; (c) The total inductance of the line. (40 Points) F.A. (a) Lint = 0.05 mh per conductor km (b) Ly = Ly per...
Q.1 (8 marks) A two-wire, single-phase, overhead line has solid cylindrical copper conductors with diameter 1.4...
Q.1 (8 marks) A two-wire, single-phase, overhead line has solid cylindrical copper conductors with diameter 1.4 cm. The conductors are arranged in a horizontal configuration with 0.8 m spacing between phases The ac frequency is 60 Hz. Calculate: Inductance of each conductor due to internal flux linkages only, expressed in [mH/km Inductance of each conductor due to internal and external flux linkages, expressed in [mH/km] The loop inductance and loop inductive reactance of the line, respectively expressed in mH/km] and...
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an...
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 1 m conductor spacing. Conductor diameter is 1.0 cm. Calculate the line inductance in H/m per conductor and the line inductive reactance in Ω/km per conductor.
THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN...
THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN OF TRANSMISSION LINES . THE ANSWERS ARE GIVEN WITH THE QUESTION PLEASE DO ALL THE QUESTIONS PROPERLY ..DONOT SKIP ANY STEP AND DO YOUR BEST 3). A transmission line has a span of 150 m between level supports. The cross-sectional area of the conductor is 1·25 cm2 and weighs 100 kg per 100 m. The breaking stress is 4220 kg/cm2. Calculate the factor of...
A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter...
A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter of each conductor in a bundle is 10 mm and the conductors are placed at the vertices of an equilateral triangle with a side length of 20 cm. The three phase bundles are horizontally placed with a distance between phase A and phase B as 1.2 m and phase B and phase C as 1m. The three phase lines are completely transposed. Calculate the...
Q2) A 1-phase, 50 Hz, 400 KV overhead transmission lines are arranged in a horizontal plane,...
Q2) A 1-phase, 50 Hz, 400 KV overhead transmission lines are arranged in a horizontal plane, each phase is 3 - stranded bundle conductors, and the distance between strands is 100 mm each. The diameter of each conductor is 5 mm. Find the inductance and capacitance per km for each phase. 100 mm
THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN...
THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN OF TRANSMISSION LINES . THE ANSWERS ARE GIVEN WITH THE QUESTION PLEASE DO ALL THE QUESTIONS PROPERLY ..DONOT SKIP ANY STEP AND DO YOUR BEST 5. A string of 4 insulators has self-capacitance equal to 4 times the pin-to-earth capacitance. Calculate (i) the voltage distribution across various units as a percentage of total voltage across the string and (ii) string efficiency. [(i) 14·5%, 18·1%,...
Power Engineering
220KV, 50HZ, 150Km three phase transposed line is composed of three conductors per phase as shown in below figure. The bundle spacing is 30cm. the diameter of each conductor is 2cm. find the inductance per phase. capacitance per phase, the total inductive reactance per phase, the total capacitive reactance per phase, the charging current, and capacitive reactive power.Then, Analyze the following OHTL system considering that, The receiving-end line-to-line voltage is 220 kV and the current is 200A, at a power...
4-130%) A 60-Hz, 3-phase, 10-km long, fully transposed, 69-kV following conductor arrangement: 5 ...
thank you and def thumps up.
4-130%) A 60-Hz, 3-phase, 10-km long, fully transposed, 69-kV following conductor arrangement: 5 m 8 m The conductors are made of solid aluminum with resistivity of 2.83-10* m at 20 °C, temperature coefficient of 0.39%"C, diameter of 250 mils (0.25 in), operating at 120 °C with skin effect ot 4.5%. (a) Obtain the series impedance per phase of the line. Zs (b) Obtain the shunt admittance to ground per phase of the line, the...
Task 1 Criteria 1.1 A 20 km single phase line has two parallel conductors separated by 1.5 metres. The diameter of each conductor is 0-823 cm. If the conductor has a resistance of 0 311 Q/km, find the loop impedance of this line at 50 Hz. 1.
4.1 A 60-Hz single-phase, two-wire overhead line has solid cylindrical copper conductors with 1.5 cm diameter. The conductors are arranged in a horizontal configuration with 0.5 m spacing. Calculate in mH/km (a) The inductance of each conductor due to internal flux linkages only; (b) The inductance of each conductor due to both internal and external flux linkages; (c) The total inductance of the line. (40 Points) F.A. (a) Lint = 0.05 mh per conductor km (b) Ly = Ly per...
Q.1 (8 marks) A two-wire, single-phase, overhead line has solid cylindrical copper conductors with diameter 1.4 cm. The conductors are arranged in a horizontal configuration with 0.8 m spacing between phases The ac frequency is 60 Hz. Calculate: Inductance of each conductor due to internal flux linkages only, expressed in [mH/km Inductance of each conductor due to internal and external flux linkages, expressed in [mH/km] The loop inductance and loop inductive reactance of the line, respectively expressed in mH/km] and...
Q2) A 1-phase, 50 Hz, 400 KV overhead transmission lines are arranged in a horizontal plane, each phase is 3 - stranded bundle conductors, and the distance between strands is 100 mm each. The diameter of each conductor is 5 mm. Find the inductance and capacitance per km for each phase. 100 mm
thank you and def thumps up.
4-130%) A 60-Hz, 3-phase, 10-km long, fully transposed, 69-kV following conductor arrangement: 5 m 8 m The conductors are made of solid aluminum with resistivity of 2.83-10* m at 20 °C, temperature coefficient of 0.39%"C, diameter of 250 mils (0.25 in), operating at 120 °C with skin effect ot 4.5%. (a) Obtain the series impedance per phase of the line. Zs (b) Obtain the shunt admittance to ground per phase of the line, the...
