THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN...

THESE ARE THE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS MECHANICAL DESIGN OF TRANSMISSION LINES . THE ANSWERS ARE GIVEN WITH THE QUESTION PLEASE DO ALL THE QUESTIONS PROPERLY ..DONOT SKIP ANY STEP AND DO YOUR BEST

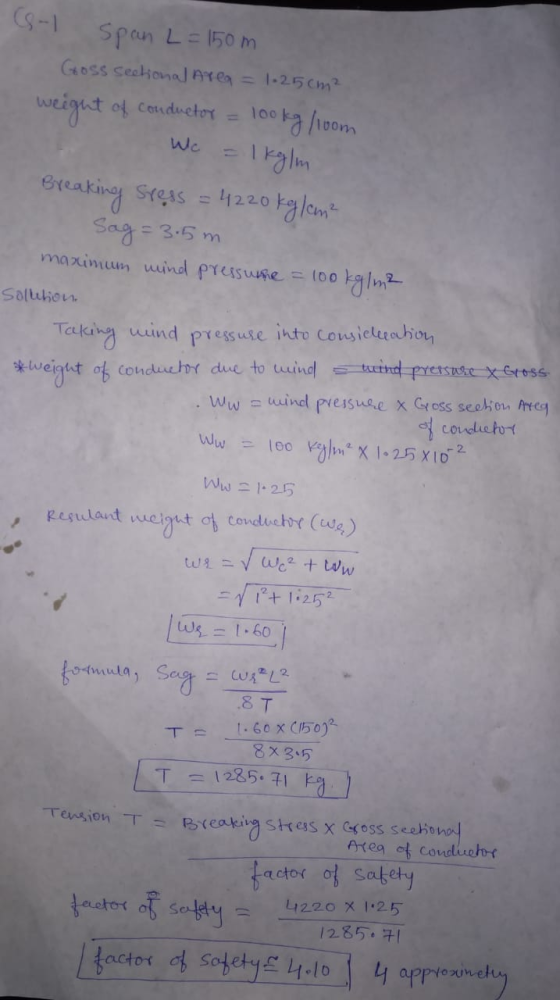

3). A transmission line has a span of 150 m between level supports. The cross-sectional area of the conductor is 1·25 cm2 and weighs 100 kg per 100 m. The breaking stress is 4220 kg/cm2. Calculate the factor of safety if the sag of the line is 3·5 m. Assume a maximum wind pressure of 100 kg per sq. metre.[4]

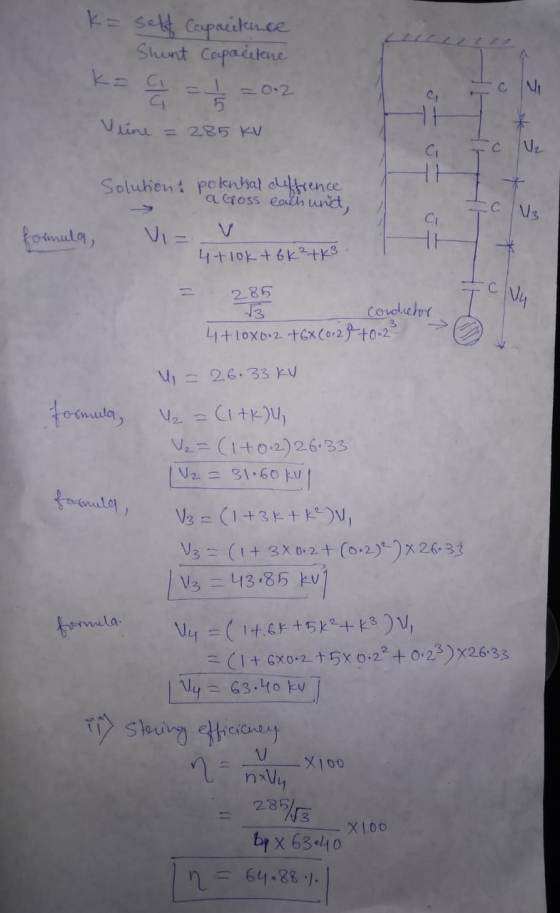

6. )A string of four suspension insulators is connected across a 285 kV line. The self-capacitance of each unit is equal to 5 times pin to earth capacitance. Calculate : (i) the potential difference across each unit, (ii) the string efficiency. [(i) 27·65 kV, 33·04 kV, 43·85 kV, 60 kV (ii) 68·5%]

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
