THESE ARE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS 9. What do you understand by generalised...

THESE ARE QUESTIONS FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS

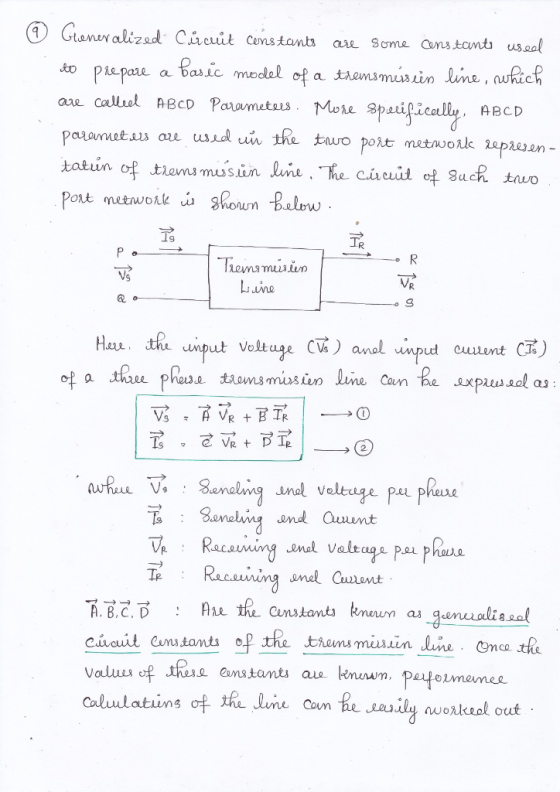

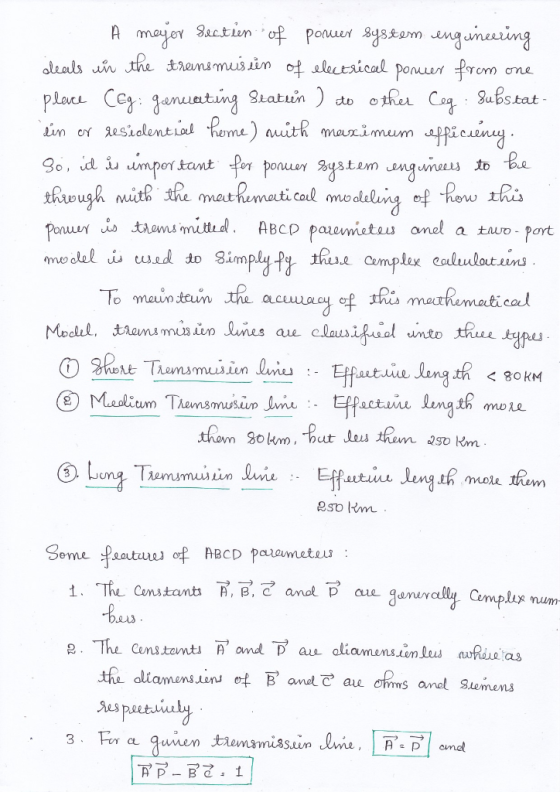

9. What do you understand by generalised circuit constants of a transmission line ? What is their importance?

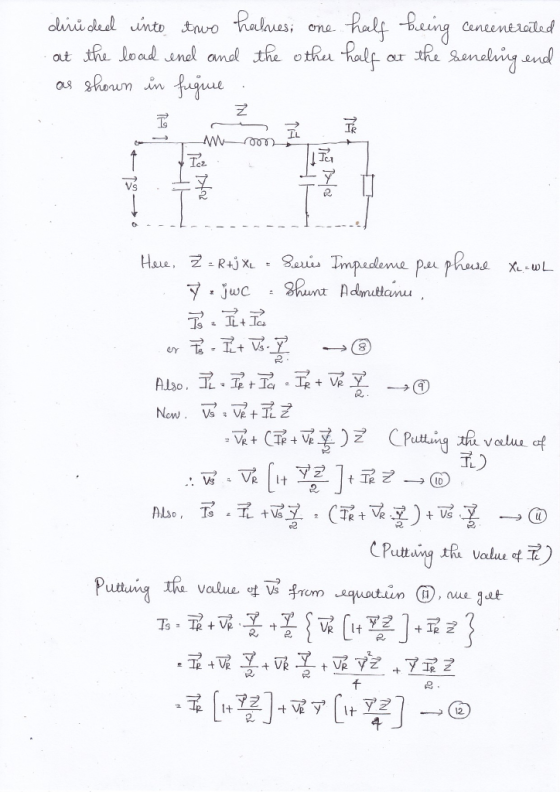

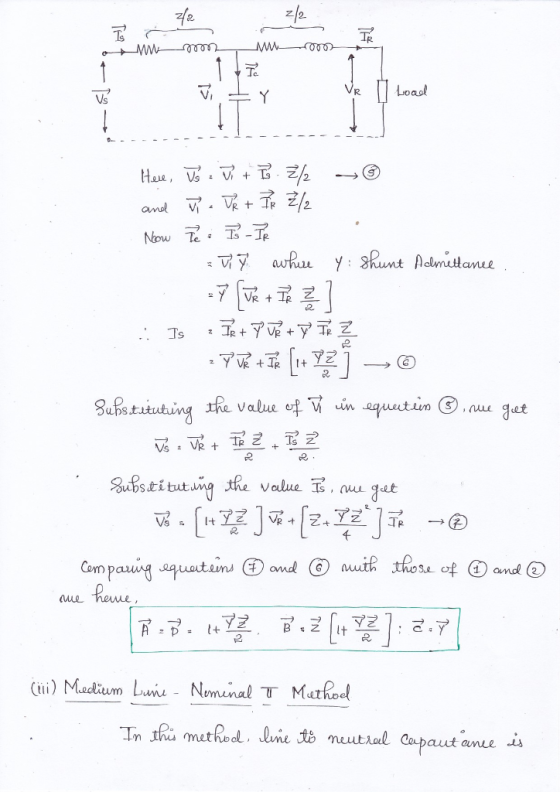

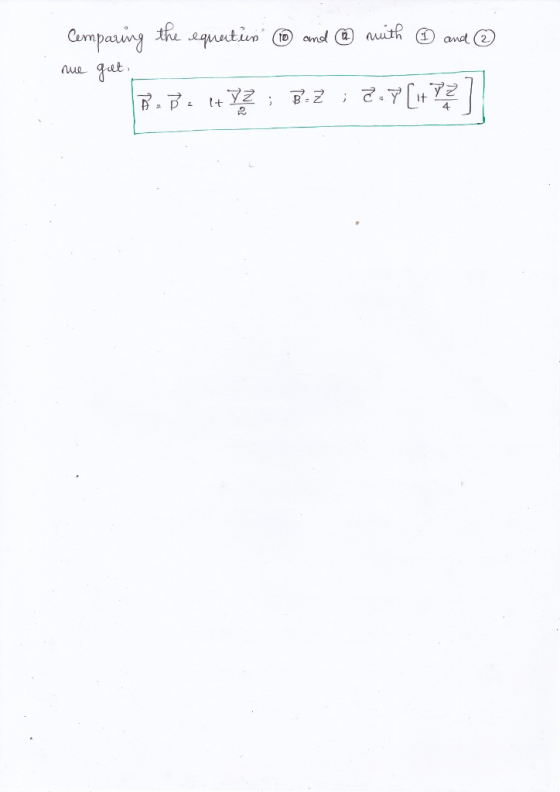

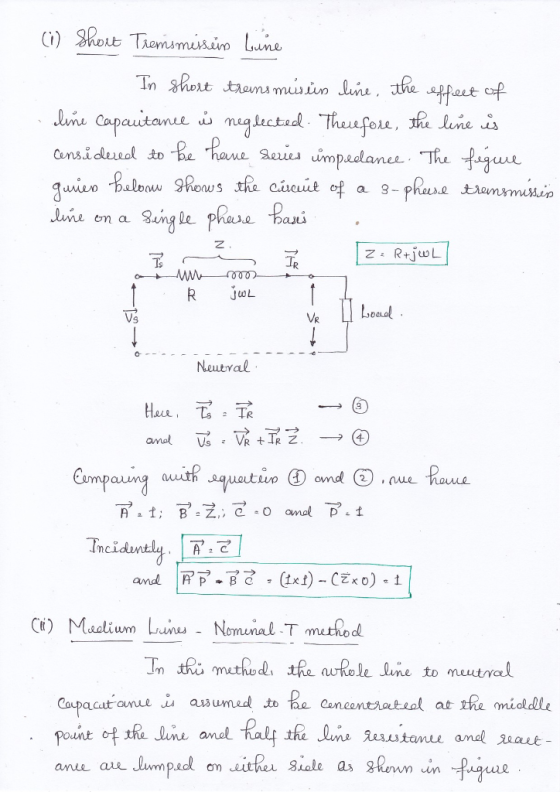

10. Evaluate the generalised circuit constants for (i) short transmission line (ii) medium line — nominal T method (iii) medium line — nominal π method

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
