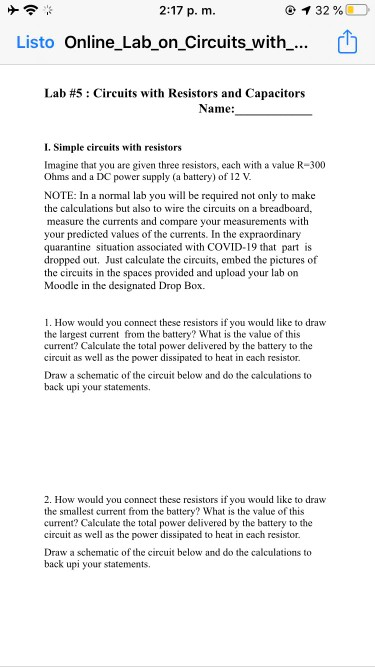

2:17 p. m. @ 132% Listo Online_Lab_on_Circuits_with_... ☺ Lab #5 : Circuits with Resistors and Capacitors...

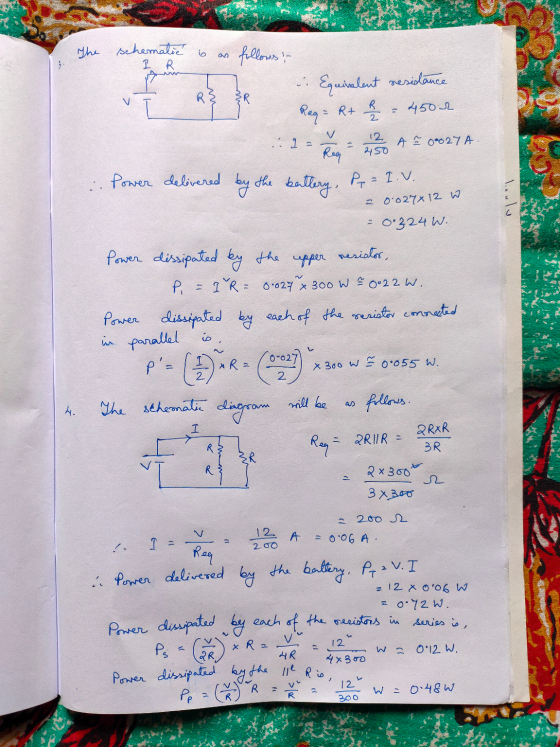

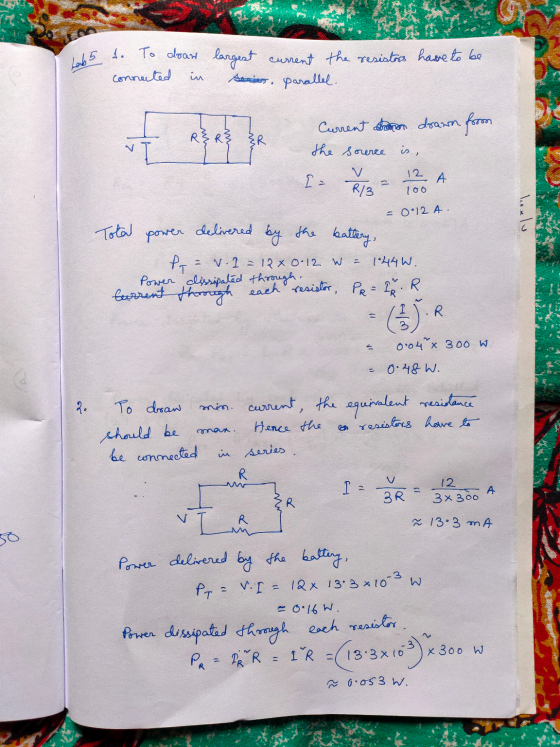

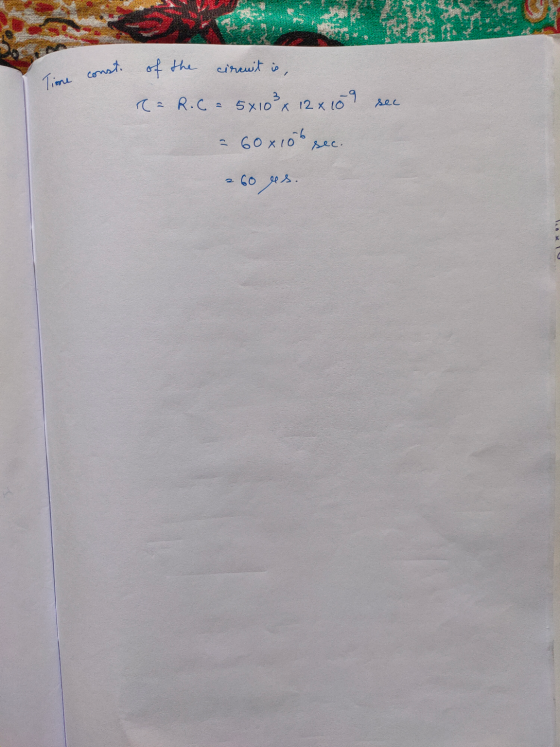

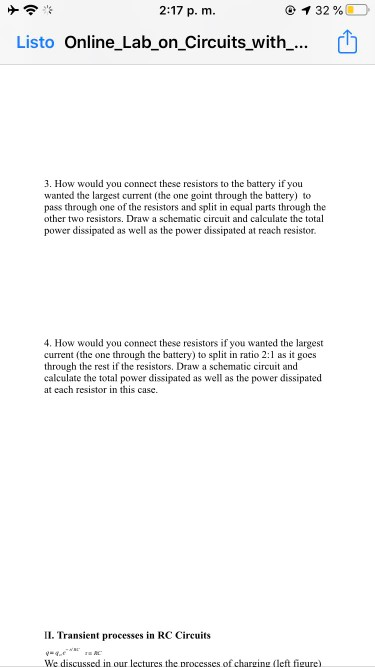

8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor in a circuit which has a resistance R, a charge Q CV will build up across the capacitor. This does not happen instantaneously, but takes some time. The charge builds up exponentially with a characteristic time r = RC. Charging: V = v. 1 - e-t/RC) Discharging: Vc = V e-t/RC Page 2 of 3 When t = RC , the exponential is lle,...
7. Circuits for 15 points: Five 20k12 resistors are placed in the following circuit with two 100V DC power supplies. (a) Identify all series and parallel circuit equivalents that you can find. Calculate these equivalent resistance values. (b) Now you assemble a different circuit. You connect a 2022 resistor to the positive lead of a 20 V battery, and a 30 resistor to the positive lead of a 10 V battery. The other ends of both the 2012 and 30...
I need help trying to design this RC-circuit.
PHYS 2120 LAB 6 - RC Circuit Capstone For example, if we wait long enough, eventually what do you expect the voltage over the capacitor to become? Part 1: Design an RC-circuit to charge a capacitor as quickly as possible. Your circuit must include the following elements (and only these elements): A Switch, a 10V Battery, a 0.1 F Capacitor, a 250 resistor, a 500 resistor, two 7512 resistors, a 1000 resistor,...
As you can see, I did all calculation, and this is LR
and RC circuits lab. I only need this: Present, in text, your
interpretation of the data. Tell me what you believe L and C to be
in the two measurements.
I did five measurement and calculation. As below. B is value
from graph between Voltage(V) in y axis and Time (s) in x axis. The
equation is Ae^(-Bt)+yo
case 1: RC Circuits discharging: the original resistor of R...
1. Consider this circuit with resistors and capacitors. The R2 battery V1 has a voltage of 9 V, the resistors R1 and R2 have values of 100 Ω and 50 Ω, and the capacitor C1 has a value of 100 nF. Initially, the switches S1 and S2 are open. S2 (10 points) Once we close S1, what will the voltage across Rl and Cl be? How much current initially flows around the closed loop? (10 points) The current in part...
You have two 5.00 M ohm resistors and three 10.0 nF capacitors. a) Design a series RC circuit with these components to achieve the largest possible time constant. Draw the circuit and calculate the time constant. b) Now design a series RC circuit with these components to achieve the smallest possible time constant. Draw the circuit and calculate the new time constant. c) To achieve an even smaller time constant, would it be better to add another 5.00 M ohm...
Guaranteed thumbs up if all is complete. Thanks in advance!
28. An RC circuit is connected to a 12.0 V battery at t=0 s and the capacitor voltage is monitored as a function of time. This cap is charging! a) Att = 0.147 s, the capacitor voltage is 20.0% of the battery voltage. What is the RC time constant? b) When will the capacitor be charged to 99.0% of the battery voltage? c) If the cap has value 2.0 mF,...
PLEASE ANSWER VERY QUICKLY!! I RATE HIGH!!
The experiment is on RC circuits and the aim is to determine the time constant. Your group sets up the circuit with a resistor R and a capacitor C connected to a switch and an ideal battery (E). The circuit diagram is shown in the figure. You close the switch at time Os and the voltage across the capacitor Ve and current I in the ammeter are recorded in a spreadsheet using a...
RC Circuits If you have an RC circuit with a resistance of 200 ohms and a capacitance of 35 microfarads, what is the time constant? Time Constant= ? s This time constant represents how much time it will take to reach 63% of maximum. If the RC circuit is connected to an EMF of 12.0 V, what will be its voltage after 5.0 ms? Voltage after 5.0 ms= ? V Draw what the voltage looks like in a charging RC...
Part A Charging of RC Circuit 1) Construct a RC circuit (series) with a capacitor, a resistor, a battery, two switches, and appropriate meters that will enable you to make measurements of the parameters for charging up the capacitor. The placement of the switches allows you to measure both charging and discharging of the RC circuit. See diagram below: 2) Choose a combination of Rand C that will give you a time constant(T) of 20 seconds. T=R*C 20= 100* C=0.2F 3) Set the...
