In the circuit of the figure 8-2.50 kV, C-890 μ F, R1-R2-R3-0.940 ΜΩ with C completely uncharged, switch S is suddenly closed

science physics

Answer 1

Answer #1

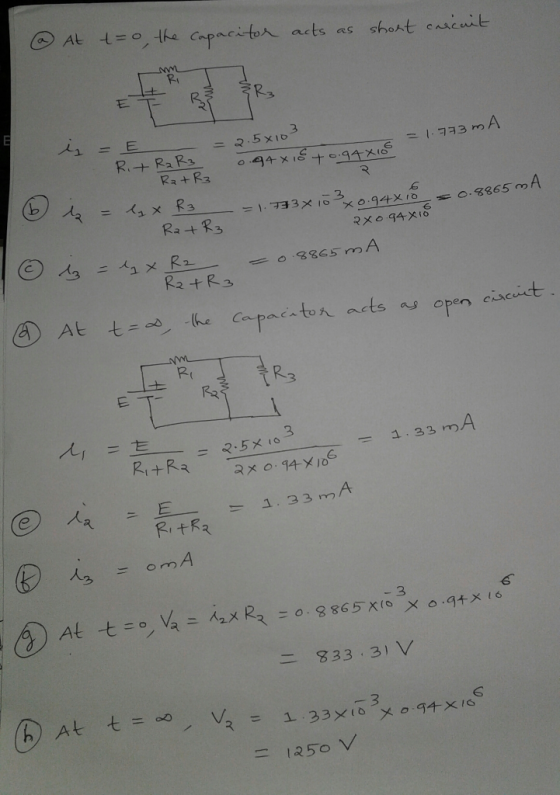

Ra+ R3 Re + a3365 mA R3 R2 ーヒマ、5×10 1,33 m = e)人 Orm 6 二833 , 31 V

Answer 2

Similar Homework Help Questions

In the circuit of the figure = 1.90 kV, C = 8.40 μF, R1 = R2 = R3 = 0.770 MΩ

In the circuit of the figure = 1.90 kV, C = 8.40 μF, R1 = R2 = R3 = 0.770 MΩ. With C completely uncharged, switch S is suddenly closed (at t = 0). At t = 0, what are (a) current i1 in resistor 1, (b) current i2 in resistor 2, and (c) current i3 in resistor 3? At t = ∞ (that is, after many time constants), what are (d)i1, (e)i2, and (f)i3? What is the potential difference...
Chapter 27, Problem 063 In the circuit of the figure 8 = 2.30 kV, C =...

Chapter 27, Problem 063 In the circuit of the figure 8 = 2.30 kV, C = 8.10 pF, R1 = R2 = R3 = 0.970 MO. With C completely uncharged, switch S is suddenly closed (at t = 0). At t = 0, what are (a) current 11 in resistor 1, (b) current iz in resistor 2, and (c) current is in resistor 3? At t = oo (that is, after many time constants), what are (d) 1 (e), and...
In Figure 5, E = 15.0 kV, C = 3800 pF, R1 = R2 = R3 = 6.80 M?

In Figure 5, E = 15.0 kV, C = 3800 pF, R1 = R2 = R3 = 6.80 M?. At time t = 0 (i.e., immediately after the circuit is connected) the current through R1 = ___________. (Give your answer in the form of "a.bc x 10^(x)" mA)At t = 0 (i.e., immediately after the circuit is connected) the current in R2 = _______. (Give your answer in the form of "a.bc x 10^(x)" mA.)At t = 0 (i.e., immediately...
