In the circuit of the figure = 1.90 kV, C = 8.40 μF, R1 = R2 = R3 = 0.770 MΩ

آم

In the circuit of the figure = 1.90 kV, C = 8.40 μF, R1 = R2 = R3 = 0.770 MΩ. With C completely uncharged, switch S is suddenly closed (at t = 0). At t = 0, what are (a) current i1 in resistor 1, (b) current i2 in resistor 2, and (c) current i3 in resistor 3? At t = ∞ (that is, after many time constants), what are (d)i1, (e)i2, and (f)i3? What is the potential difference V2 across resistor 2 at (g)t = 0 and (h)t = ∞?


science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

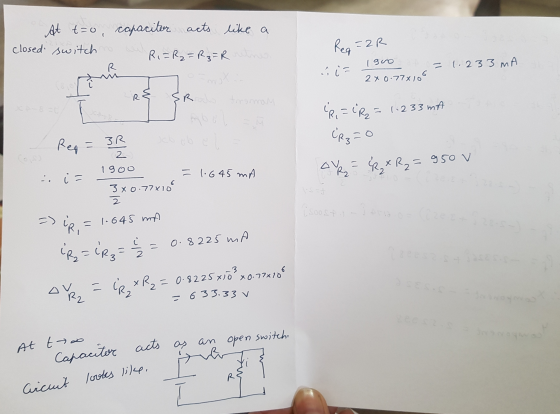

Answer #1

0 0
Add a comment
