1. A 520 mm long and 3.3 mm diameter mild steel rod undergoes a stress test....

Question

Question

1. A 520 mm long and 3.3 mm diameter mild steel rod undergoes a stress test. A tensile force of 30200 N is applied and the rod extends by 0.05 mm.

(i) Calculate the nominal stress.

(ii) Calculate the nominal strain.

(iii) Calculate Young's Modulus.

(Answer format: Standard form, No thousands separator, Two decimals, Optional Unit if any)

science physics

Answer 1

Answer #1

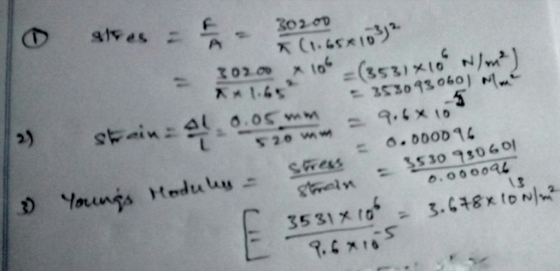

2530 93060 2) s o.booD1 ) Youu $530 7s0401

Answer 2

Similar Homework Help Questions

Q} A mild Steel rod of 10 mm dia., 25 mm long was subjected to a...

Q} A mild Steel rod of 10 mm dia., 25 mm long was subjected to a tensile load of 5 kN, its elongation been 0.277 mm, estimate the value of its young's modulus
Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on...

Q1. A circular rod of 12 mm diameter was tested for tension. The total elongation on a 300 mm length was 0.22 mm under a tensile load of 17 KN. Find the value of E. (2.5 Marks) Answer: Q2. A prismatic bar has a cross section of 25 mm x 50 mm and a length of 2m under an axial force of 90 KN. The measured elongation of the bar is 1.5 mm. Compute the tensile stress and strain in...
Engineering materials b) A mild steel rod of 4 cm diameter was tested for tensile strength...

Engineering materials b) A mild steel rod of 4 cm diameter was tested for tensile strength with the gauge length of 60 mm. The following observations were recorded: Final length = 9 cm; Final diameter = 8 mm; Yield load – 5.4 kN and Ultimate load – 8.1 KN. (4 Marks) Calculate 1. Yield stress (1 Mark) 2. Ultimate tensile stress (Mark) 3. Percentage reduction in area. (1 Mark) 4. Percentage elongation (IMark)

A 25mm diameter steel rod 1.5m long is being used in a rigid structure. For this...

A 25mm diameter steel rod 1.5m long is being used in a rigid structure. For this steel the Ultimate Tensile Stress is 410 MPa Young’s Modulus is 200 GPa The rod is to be subjected to a tension load of 40 kN. Design requirements are that the rod cannot extend by more than 0.5 mm and that there is a Factor of Safety of 5 for the tensile stress. Determine whether or not the rod is adequate for the task:...
Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel...

Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel rod within a machine assembly is subjected to a combination of tensile loading of 190 N and thermal loading which imposes a longitudinal force of 244 N. The total loading results in an even distribution of forces on the body of the rod causing it to change its dimensions by increasing 0.45 mm in length at both ends and decreasing by 0.0135 mm at...
#3 4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands...

#3 4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands a tor shear modulus for this steel is 7 shaft. o GPa. Determine the shear stress in the shaft and the angle of twist of the

Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel r...

Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel rod within a machine assembly is subjected to a combination of tensile loading of 190 N and thermal loading which imposes a longitudinal force of 244 N. The total loading results in an even distribution of forces on the body of the rod causing it to change its dimensions by increasing 0.45 mm in length at both ends and decreasing by 0.0135 mm at...
6. A rod pof steel is l=12_ cm long and has a d= 0.6 mm diameter....

6. A rod pof steel is l=12_ cm long and has a d= 0.6 mm diameter. A P= 16 kN load pulls on each end of the bar. Given the strain along the bar El= 0.03, and Poisson's ratio of v=0.21 : (20%) .. Р Р a) the stress exerted on the rod o? b) the modulus of elasticity, E? c) the elongation of the bar, Al? d) the strain along the lateral direction, Edia? e) the change of diameter...
6. A steel tie rod is 20 mm diameter. It carries a load of 4x10 N....

6. A steel tie rod is 20 mm diameter. It carries a load of 4x10 N. Given an ultimate tensile stress (UTS) of 460 MPa, calculate the factor of safety for this loading.

(c) Acylindrical specimen of stainless steel having a diameter of 12.8 mm and a gauge length...

(c) Acylindrical specimen of stainless steel having a diameter of 12.8 mm and a gauge length of 50.800 mm is pulled in tension. The data acquired was used to plot engineering stress versus engineering strain as shown in the following two graphs (please note that fig. b is a blown-up clastic portion of (a)). Use the o-curves to complete parts through (vi) Stress (MP) 0.00 0.02 0.04 0.06 0.08 0.10 Strain Fig (a). - curve of stainless steel Stress (MPa)...
