Homework Answers
KVL in upper loop:
12 - 6 I1 - 3 I1 - 2 I3 = 0
9 I1 + 2 I3 = 12 . ....... (i)
KVL in lower loop:
9 + 2 I3 - (4 + 1) I2 = 0
5 I2 - 2 I3 = 9 ..... (ii)
KCL : I1 - I2 - I3 = 0 ..... (iii)
Solving, I1 = 102/73 A = 1.40 A
I2 = 123/73 A = 1.68 A
I3 = - 21/73 A = - 0.288 A
Add Answer to:

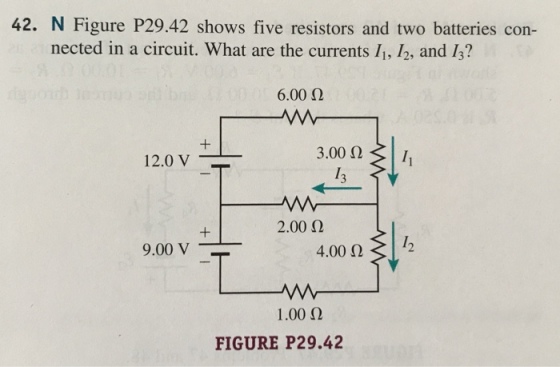

42. N Figure P29.42 shows five resistors and two batteries con- nected in a circuit. What...
