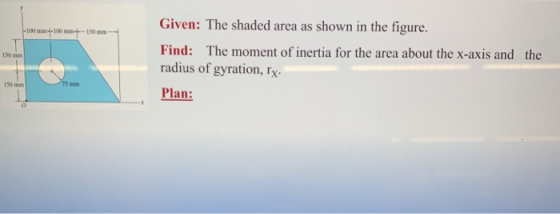

Given: The shaded area as shown in the figure. Find: The moment of inertia for the...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

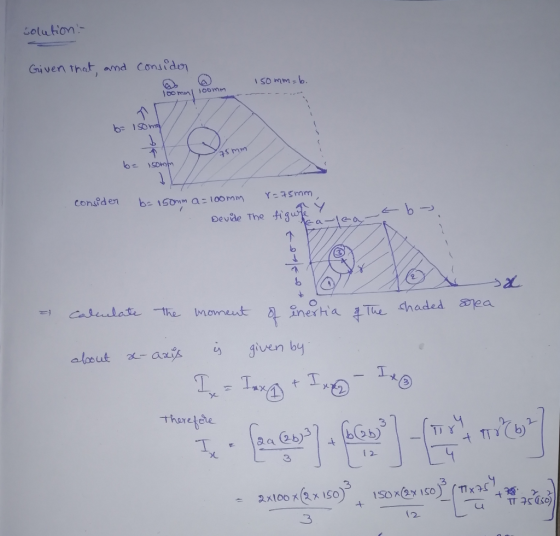

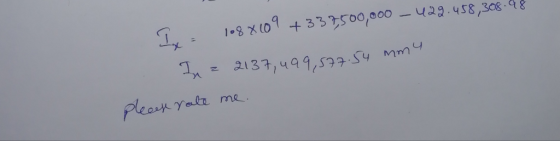

Soluton- Given that, amd Considen Ys25mm consider b-ı somm a: 100mm 7 lo Thurefere 1 2 ·ブー 니

Answer 2

Similar Homework Help Questions

Determine by direct integration the moment of inertia of the shaded area with respect to the...

Determine by direct integration the moment of inertia of the shaded area with respect to the x axis. y k(x - a) Determine the polar moment of inertia and the polar radius of gyration of the trapezoid shown with respect to point P Find Moment of Inertia and Radius of Gyration
Determine the moment of inertia and the radius of gyration of the shaded area with respect to the x axis.

Determine the moment of inertia and the radius of gyration of the shaded area with respect to the x axis. Take t = 11 mm. (Round the moment of inertia to the nearest whole number and the radius of gyration to one decimal place.)
please keep the solution short. *10–32. Determine the moment of inertia I, of the shaded area...

please keep the solution short. *10–32. Determine the moment of inertia I, of the shaded area about the x axis. 10–33. Determine the moment of inertia Ix of the shaded area about the y axis. у |-100 mm 100 mm-f-150 mm 150 mm 150 mm 75 mm X Probs. 10–32/33

6. Determine the moment of inertia and the radius of gyration of the shaded area with...

6. Determine the moment of inertia and the radius of gyration of the shaded area with respect to the x axis. 12 mm 12 mm 5 mm 25 mm 25 mm 5 mm 24 mm 24 mm
Consider the area shown in Figure 4. Determine; a) The 2nd Moment of Area (Ix and...

Consider the area shown in Figure 4. Determine; a) The 2nd Moment of Area (Ix and ly) about the axis system shown. b) The Polar Moment of Inertia (Jo) about point O. c) The 2nd Moment of Area (lx and ly) about an axis system that runs through the centroid of the area and the Polar Moment of Inertia (Jo) about the centroid of the area. [5+3+5 = 13 marks] 100 mm-100 mm 150 mm 150 mm 150 mm 75...
In the figure shown, y' Determine by direct Vklx)1/2 integration the moment of inertia and the...

In the figure shown, y' Determine by direct Vklx)1/2 integration the moment of inertia and the radius of gyration of the shaded area (a) with respect to the x-axis, and (b) with respect to the y-axis. lo i k(x) ,LI

THANK YOU SO MUCH 3. Find the moment of inertia (in int) of the shaded area...

THANK YOU SO MUCH 3. Find the moment of inertia (in int) of the shaded area with respect to the x axis. -6 in. 6 in. 4. Find the moment of inertia (in mm) of the shaded area with respect to the y axis. 125 mm 75 mm 250 mm 125 mm
Determine the moment of inertia with respect to the x axis for the shaded area shown (Figure 2)...

Determine the moment of inertia with respect to the x axis for the shaded area shown (Figure 2) . The dimension is a = 2.00m .
Determine the moments of Inertia of the shaded area shown with respect to the x and...

Determine the moments of Inertia of the shaded area shown with respect to the x and y-axes. Given a = 82 mm. 125 mm - 250 mm 125 mm The moment of inertia with respect to the x-axis is 106 mm The moment of inertia with respect to the y-axis is 106 mm4

A5) (a) Calculate the moment of inertia of the shaded area shown in Fig. A5(a) e...

A5) (a) Calculate the moment of inertia of the shaded area shown in Fig. A5(a) e integration scheme. Take a = 30 mm about the x- axis using an appropriat and b 40 mm. 16 Marks) Fig. A5 (a)
